SKU: CV42030XIP  |  UPC: 801813192438

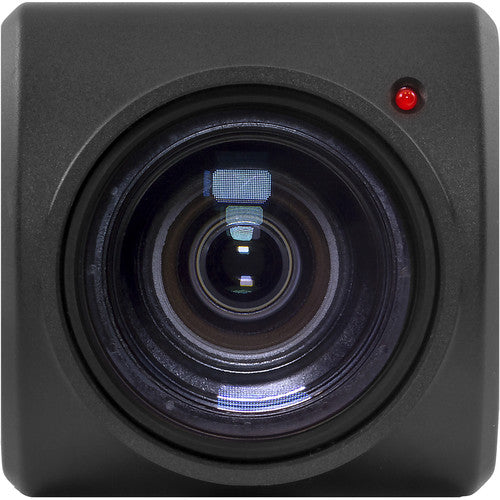

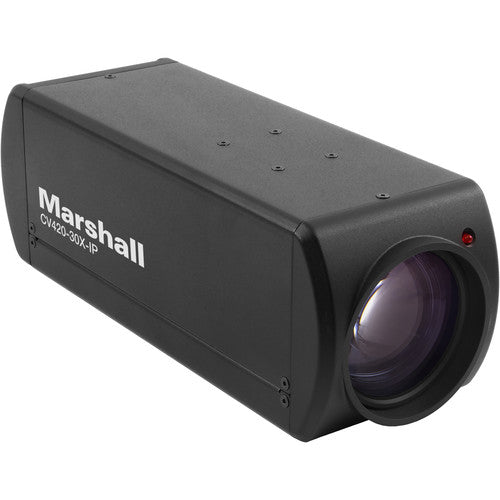

Marshall CV420-30X-IP 30X Zoom IP Camera

$1,699.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • Up to 3840x2160, 1920x1080, and 1280x720p
  • 30X Optical Zoom
  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor

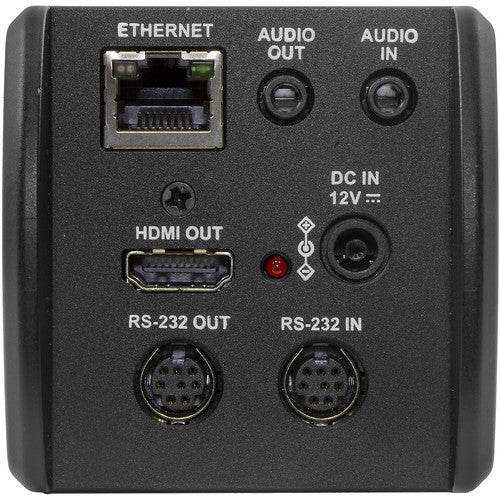

  • IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs
  • Ethernet I/O support
  • RS232 and 3.5mm audio input
  • Visca over IP, Onvif, SRT compliant

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • Power Adapter
  • Power Cord


  • Up to 3840x2160, 1920x1080, and 1280x720p

  • 30X Optical Zoom

  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor

  • IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs

  • Ethernet I/O support

  • RS232 and 3.5mm audio input

  • Visca over IP, Onvif, SRT compliant



  • 8.5 Megapixel (1/2.5") 4K (UHD) sensor

  • 30X Optical Zoom (4.6~135mm) - 68° AOV

  • Up to 3840x2160, 1920x1080, and 1280x720p

  • Frame-rates: 59.94/50/29.97/25fps

  • Triple-stream IP (H.265/H.264/MJPEG) and HDMI 2.0 outputs

  • Ethernet I/O supports video, control, and PoE over a single cable

  • RS232 and 3.5mm audio input with passthrough

  • Visca over IP, Onvif, SRT compliant






The CV420-30X-IP 30X Zoom IP Camera utilizes a professional 8.5MP sensor to capture brilliant 4K (UHD) with true colors up to 3840x2160p at 60fps with support for all HD formats.



The 30X optical zoom block offers a flexible zoom range of 4.6 to 135mm starting at 68° through 3° horizontal angle-of-view for maintaining image crispness in both wide and tight shots.



Exceptional low-light sensitivity ensures the CV420-30X-IP will maintain a clear picture in variable lighting conditions for live events, houses of worship, indoor/outdoor sporting events, and other dynamic lighting environments.



Ideal for use in networked A/V installations, the CV420-30X-IP offers the convenience of triple-stream (H.264/H.265/MJPEG) and HDMI outputs with audio embedding.



Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

f9ecbdc576044a4d92d6d242c8cbc789
Marshall Electronics

Marshall CV420-30X-IP 30X Zoom IP Camera

$1,699.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.5" 8 MP CMOS

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

2D/3D Noise Reduction

N/A

Gain

Auto, Manual

N/A

Shutter Speed Range

1 to 1/10,000 Second

N/A

Exposure Control

Auto Mode: WDR (Wide Dynamic Range) Mode Shutter Speeds: Manual: 1 to 1/10,000 Sec Shutter Priority: 1 to 1/10,000 Sec Flickerless: NTSC: 1/60 Sec, PAL: 1/50 Sec

N/A

White Balance

Auto: 2500K to 7500K ATW: 2000K to 10,000K Manual: R/B Gain, One-Push WB Indoor: 3200K Outdoor: 5800K

N/A

Image Stabilization

Electronic Image StabilizationYes

N/A

Image Flip

Off, Flip, Mirror, Both

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

Audio OutLine Out, 3.5 mm (Stereo/Mono),

N/A

Audio Input

Line In, 3.5 mm (Stereo/Mono),HDMI or Single Stream Output: UHD 4K: 59.94/50

N/A

Audio

Audio Compression FormatG.711

N/A

Camera Control

Control InterfaceRS-232, IP

N/A

Focal Length

4.6 to 135mm

N/A

Minimum Object Distance

Wide/Telephoto: 4.9' / 1.5 m

N/A

Pan Angle

68-3.5°

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

32 to 104°F / 0 to 40°C

N/A

Power

DC In12 V +/- 20% PoE 802.3 af

N/A

Power Consumption

N/A

N/A

Minimum Illumination

Color: 0.1 Lux, f/1.6, 50 IRE, AGC On Night Mode: BW: 0.02 Lux, f/1.6, 50 IRE, AGC On

N/A

Optical Zoom

30x

N/A

TAA Compliant

N/A
