SKU: CV380CS  |  UPC: 801813190939

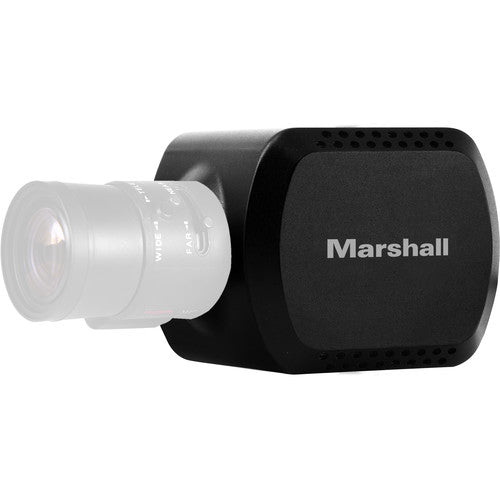

Marshall CV380-CS True 4K30 Compact Camera

$1,319.95
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • 6G-SDI (single BNC) & HDMI 1.4 outputs
  • CS/C-mount for Varifocal or Fixed lenses
  • True-4K: 4096 x 2160p
  • RS485 (Visca) or OSD menu joystick Control

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • Breakout Cable
  • Universal Power Supply


  • 6G-SDI (single BNC) & HDMI 1.4 outputs

  • CS/C-mount for Varifocal or Fixed lenses

  • True-4K: 4096 x 2160p

  • RS485 (Visca) or OSD menu joystick Control



  • 6G-SDI (single BNC) & HDMI 1.4 outputs

  • 8.5 Megapixel (1/2.5") sensor (4:2:2)

  • CS/C-mount for Varifocal or Fixed lenses

  • True-4K: 4096 x 2160p @ 30, 29.97, 25, 24, 23.98 fps

  • Ultra-HD: 3840 x 2160p @ 30, 29.97, 25, 24, 23.98 fps

  • HD (Progressive): 1080p / 720p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

  • HD (Interlaced): 1920 x 1080i @ 60, 59.94, 50 fps

  • TRS stereo audio inputs (mic & line level)

  • Remote adjust and match through RS485 (Visca) or OSD menu joystick

  • Wide range of broadcast picture adjustment settings

  • Includes 12V power supply in box


The Marshall CV380-CS is a compact, true 4K camera built around an 8.5-Megapixel, 1/2.5-inch sensor that delivers ultra-crisp, clear true 4K resolution in 4096x2160p. The CV380-CS contains a single 6G (BNC) output with 6G/3G/HD-SDI capability and a simultaneous HDMI output. The flexible CS/C lens mount offers a wide variety of lens options with DC Auto-Iris plug-in ability.



The CV380-CS is a versatile and powerful camera solution in an easy-to-understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma, and more. The CV380-CS delivers ultra-clear 4K or UHD video while maintaining a discrete presence. Use it to capture wide 4096x2160 (4K) video and pull HD frames in post, or as a flexibility spill-over shot, or for unique points-of-view and more.





CV380-CS Applications:

Broadcast Sports, Broadcast Television, Broadcast News, House of Worship, Courtroom, Government Assembly, Live Music & Events, Studio Production, Remote Learning, ProVideo, Broadcast Production, Cinematic Production

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

3436a0d1094b4afa9820fc94d79a087f
Marshall Electronics

Marshall CV380-CS True 4K30 Compact Camera

$1,319.95

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

8.5 MP, 1/2.5" Sensor (4:2:2)

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

1 x HDMI 1.4 Type A Output

N/A

Audio Input

1 x TRS Mic Input 1 x TRS Line-Level Input

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

Lens MountCS/C no lens included

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

1 x 12 VDC Power Connector

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
