SKU: CV35010X  |  UPC: 403939186980

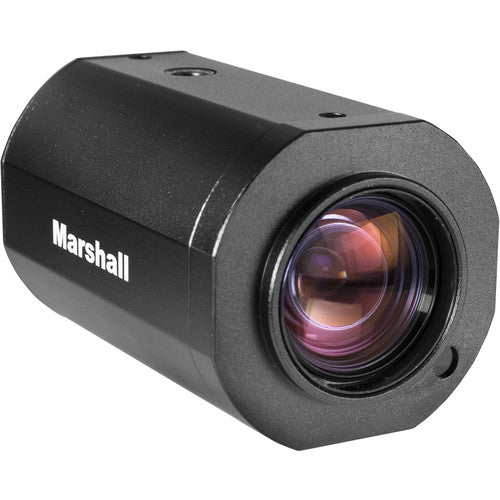

Marshall CV350-10X Compact 10X Camera (Full-HD)

$699.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • 1/3" CMOS Sensor
  • 1920 x 1080 Resolution
  • 3g-sdi, HD-SDI,HDMi

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • 12 VDC Power Pigtail
  • IR Remote


  • 1/3" CMOS Sensor

  • 1920 x 1080 Resolution

  • 3g-sdi, HD-SDI,HDMi



  • 2.5 Megapixel 1/3-inch HD High Performing Sensor

  • 10x Optical Zoom (4.7~47mm Focal Range), F1.6~F3.0

  • 12x Digital Zoom (Total Zoom Range of 120x)

  • HDMI Type-A, 3G/HD-SDI (SMPTE 424M/292) outputs

  • Smooth Zoom control with precision Focus Features (Auto or Manual)

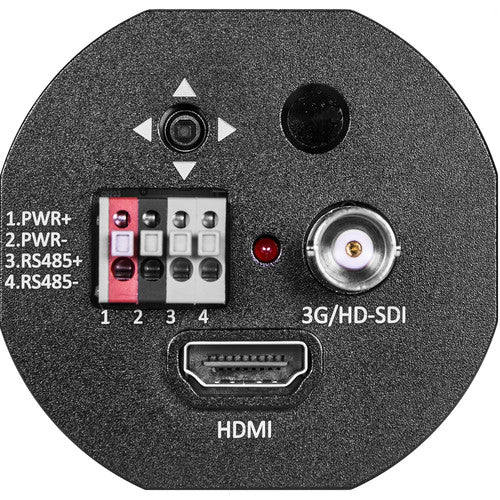

  • OSD Joystick on rear panel, IR Remote included in box & RS485 (VISCA) controllable

  • Remote adjustable Iris, Zoom, Focus, Brightness, Exposure, Sharpness, Saturation, Contrast, Gamma, Gain (Red/Blue), White Balance, and more

  • Compatible with CV-RCP-V2 Touchscreen RCP Control unit

  • Includes 12V power supply in box


Marshall's next generation Compact 10x Zoom Camera promises twice the zoom range as previous version at 10x optical (4.7~47mm), easily controllable & adjustable from long runs, and versatile HDMI & 3G/HD-SDI outputs to service a wide variety of applications. Delivering vibrant Broadcast quality HD images up to 1920x1080p @ 60/59.94/50fps (3G) makes this camera capable of handling almost any application requiring clear, crisp images. HDMI expands use case scenarios into ProAV with ability to convert to HDBaseT, true ONE-CABLE-to-CAMERA, when used with the Marshall pn: VAC-HT12-KIT enabling one Cat6 cable to carry uncompressed HD/3G video, power to remote camera location (PoC), and RS485 control for zoom/focus/brightness/etc.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

f9e7a5eb53734bffa26e3dcd0b2f4183
Marshall Electronics

Marshall CV350-10X Compact 10X Camera (Full-HD)

$699.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/3" CMOS Sensor (approximately 2.1 MP)

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

NTSC: 1/30 to 1/30,000

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI, HD-SDI, HDMI video output

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

Sony-VISCA protocol

N/A

Focal Length

4.7 to 47mm f/1.6 to f/3.0

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

4 to 140°F / -20 to 60°C

N/A

Power

12 VDC (7 to 15 VDC)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

Day: 0.2 Lux Night: 0.1 Lux DSS On: 0.005 Lux

N/A

Optical Zoom

10x

N/A

TAA Compliant

N/A
