SKU: CV345CSB  |  UPC: 801813179095

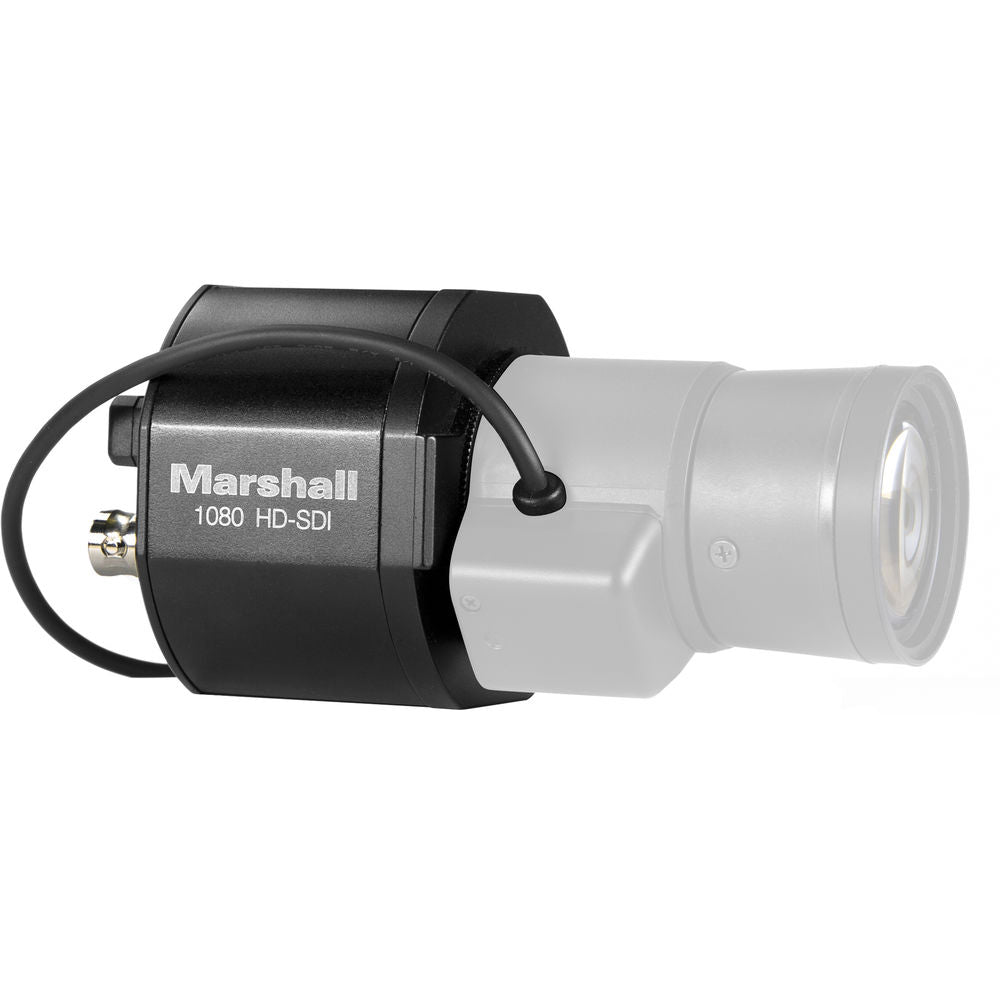

Marshall CV345-CSB Full-HD (3G/HD-SDI) 2.5MP Compact Broadcast Camera with AUDIO + HDMI

$349.00
Free Shipping At Checkout!

SPRING SALE | additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • 1/3" CMOS Sensor
  • 1920 x 1080 Resolution
  • 3G-SDI,HD-SDI,HDMI

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • Breakout Cable
  • Power Supply


  • 1/3" CMOS Sensor

  • 1920 x 1080 Resolution

  • 3G-SDI,HD-SDI,HDMI


Models:

  • CV345-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps

  • CV345-CS: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps

  • 2.5 Megapixel 1/3-inch CMOS sensor

  • CS/C Mount with DC-Auto Iris (lens sold separately)

  • Hirose-style (I/O) connector contains: RS-485 connectors, 12V power connector & audio TRS Mic/Line level input

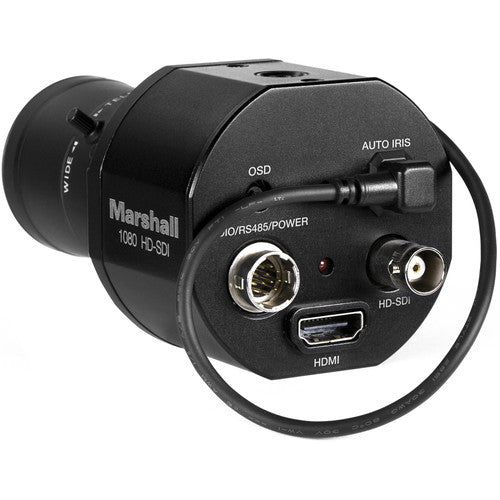

  • 3G/HDSDI (BNC) & HDMI (full size-v1.3) built into rear panel

  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)

  • New WDR function supports high speed & high sensitivity to various light sources

  • TRS audio input with Line/Mic level selectable depending on input device, unbalanced Mono (L/R mixed), phantom 2.5V power

  • OSD Menu Joystick, RS-485 (Pelco/Visca)

  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust

  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

  • Includes 12V power supply in box


Marshall Electronics next generation Miniature CV505 and Compact CV345 HD Pro-Series Cameras add the convenience of a HDSDI/3GSDI (BNC) and HDMI (v.1.3) simultaneous outputs and optional audio Mic or Line-Level (CV345) selectable input. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.



New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV505-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

40669f1f40bb43e284b5c0e91de65700
Marshall Electronics

Marshall CV345-CSB Full-HD (3G/HD-SDI) 2.5MP Compact Broadcast Camera with AUDIO + HDMI

$349.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/3" CMOS Sensor (Approximately 2.5 MP)

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

NTSC: 1/30 to 1/30000

N/A

Exposure Control

N/A

N/A

White Balance

AWB/AWC-Set/Manual/Indoor/Outdoor

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI,HD-SDI , HDMI video output

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

RS-485 PELCO-P/D Sony-VISCA Protocol

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

14 to 122 °F / -10 to 50 °C

N/A

Power

12 VDC (7 to 15 VDC Range)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

Color: 0.2 Lux B&W: 0.1 Lux DSS On: 0.005 Lux

N/A

Optical Zoom

3x

N/A
