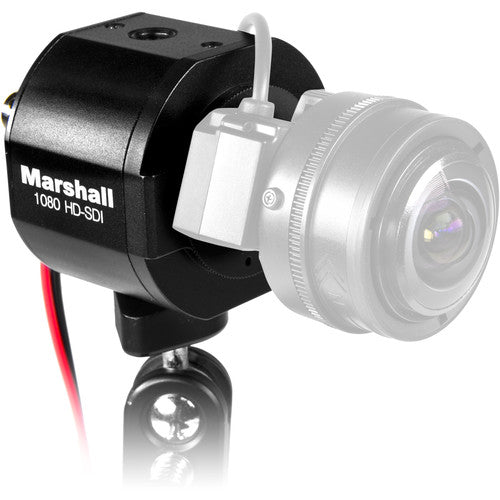

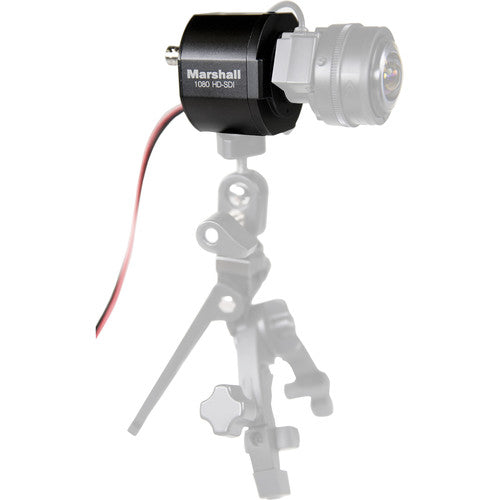

Marshall CV343-CSB Full-HD (3G-SDI) Compact Broadcast POV Camera

SKU: CV343CSB  |  UPC: 801813179071
$299.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 1/3" CMOS Sensor\n 1920 x 1080 Resolution\n 3G-SDI,HD-SD,Composite video output\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • 1/3" CMOS Sensor

  • 1920 x 1080 Resolution

  • 3G-SDI,HD-SD,Composite video output


Models:

  • CV343-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps

  • 2.5 Megapixel 1/3-inch CMOS Sensor

  • CS/C Mount with DC-Auto Iris (lens sold separately)

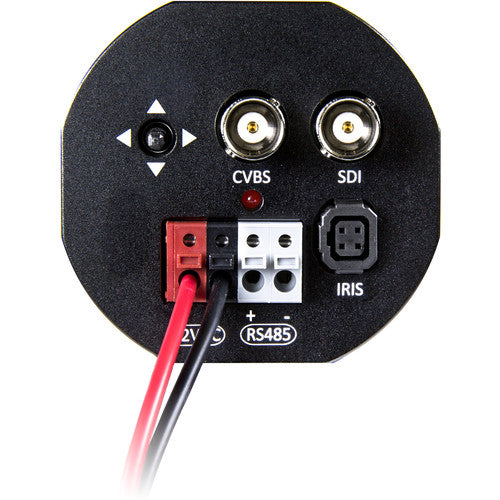

  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel

  • Captures sharp & vivid color images as 0.2 lux (low light sensitive)

  • New WDR function supports high speed & high sensitivity to various light sources

  • OSD Menu Joystick & RS-485 connectable (Pelco/Visca Protocols)

  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust

  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

  • Includes 12V power supply in box


Marshall Electronics 3rd Generation CV343-CSB improves on all aspects of video performance. Utilizing a new state of the art 1/3-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes. New CV343-CSB Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable CS/C mount Varifocal lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

Is This Right For You?


Recommendation


16f4ea02600a4ce1ad5c2c8436d64646
Marshall Electronics

Marshall CV343-CSB Full-HD (3G-SDI) Compact Broadcast POV Camera

$299.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/3" CMOS Sensor (Approximately 2.5 MP)

N/A

Resolution

4K

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

NTSC: 1/30 to 1/30000

N/A

Exposure Control

N/A

N/A

White Balance

AWB/AWC-Set/Manual/Indoor/Outdoor

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

3G-SDI,HD-SDI,Composite

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

RS-485 PELCO-P/D Sony-VISCA Protocol

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

14 to 122 °F / -10 to 50 °C

N/A

Power

12 VDC (7 to 15 VDC Range)

N/A

Power Consumption

N/A

N/A

Minimum Illumination

Color: 0.2 Lux B&W: 0.1 Lux DSS On: 0.005 Lux

N/A

Optical Zoom

3x

N/A

TAA Compliant

N/A
