Product Summary

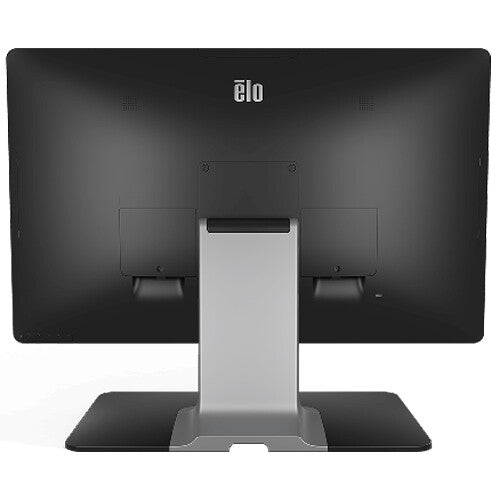

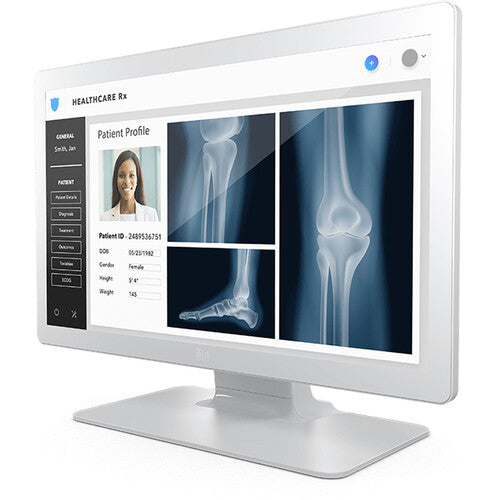

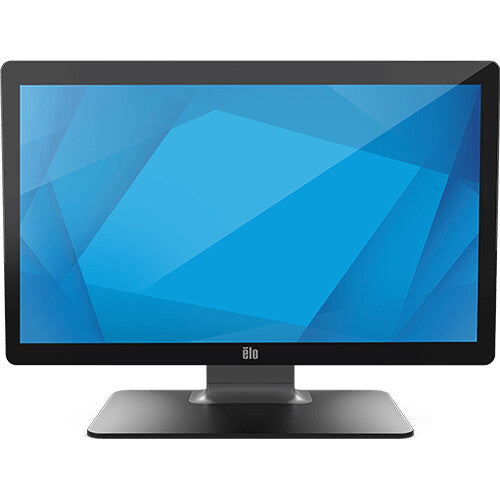

Elo Touch 2403LM 24" Medical Grade Touchscreen Monitor

The Elo Touch 2403LM is a 24-inch medical-grade touchscreen monitor engineered for hospitals, clinics, laboratories, pharmacies, and medical device integration. Combining TouchPro® Projected Capacitive (PCAP) technology, DICOM Part 14 compliance, and IEC 60601-1 medical certification, the 2403LM delivers accurate image reproduction, responsive touch performance, and dependable reliability for demanding healthcare environments. With its compact, edge-to-edge design and IP54-sealed front, it is ideal for EMR documentation, clinical image review, patient engagement, and healthcare collaboration.

Medical-Grade Full HD Display

Deliver clear, consistent clinical images.

  • 23.8-inch TFT LCD display
  • 1920 × 1080 Full HD resolution
  • 250-nit brightness (225 nits with touch)
  • 1000:1 contrast ratio
  • DICOM Part 14 factory calibration

The display is pre-calibrated to the DICOM GSDF curve to provide consistent image quality for clinical review and patient care.

TouchPro® PCAP Technology

Responsive, tablet-like touch experience.

  • Projected Capacitive (PCAP) touchscreen
  • Supports up to 10 simultaneous touch points
  • Compatible with finger, gloved hand, and stylus input
  • Anti-glare edge-to-edge glass
  • Fast and accurate touch response

TouchPro® technology delivers smooth, intuitive interaction while supporting common healthcare workflows.

Built for Healthcare

Designed for clinical environments.

  • IEC 60601-1 4th Edition compliant
  • IP54 front-sealed enclosure
  • Easy-to-clean surface
  • Medical-grade power supply included
  • Purpose-built for healthcare applications

The 2403LM is engineered to meet healthcare safety requirements while helping reduce contamination risks.

Flexible Installation

Adapt to virtually any medical workspace.

  • Desktop stand included
  • 100 × 100 mm VESA mount compatible
  • Wall and pole mount support
  • Optional ergonomic carrying handles
  • Optional HIPAA privacy filter

A variety of accessories and mounting options allow the monitor to integrate seamlessly into clinical workflows.

Comprehensive Connectivity

Simple integration with healthcare systems.

  • HDMI input
  • VGA input
  • USB touch interface
  • Integrated USB 2.0 hub
  • Dual built-in 2W speakers

Connect barcode scanners, fingerprint readers, and other USB peripherals directly through the integrated hub.

Commercial-Grade Reliability

Built for long-term performance.

  • 50,000-hour MTBF
  • Commercial-grade construction
  • Edge-to-edge zero-bezel design
  • Available in black or white
  • 3-year standard warranty

Designed for continuous operation in mission-critical healthcare environments with long product availability.

Elo Touch 2403LM 24" Full HD Medical Touchscreen Monitor with TouchPro (Black, Includes Stand)

SKU: E659195 | UPC: 843173135472
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,249.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch 2403LM 24" Full HD Medical Touchscreen Monitor with TouchPro (Black, Includes Stand) $1,249.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 24" LCD Display
  • TouchPro® Projected Capacitive (PCAP) Touch Technology
  • Medical-Grade Closed Frame Design
  • 1920 × 1080 Full HD Resolution
  • 250 nits Brightness (225 nits with Touch)
  • 10-Point Multi-Touch

Best For

  • 🏨 Hospitality

Technical Details

Specifications

Screen Size
23.8"
Native Resolution
Full HD (1920 x 1080)
Brightness
225 nits
Inputs
• Video: HDMI, VGA Audio: Combo Jack USB: 1 x USB Type B, 1 x USB 2.0 Type A, 4 x Micro USB ports (side-facing) Touch interface: USB and Serial (via VGA) Power: DC power jack
VESA Pattern
VESA 4-hole 100mm mounting interface
