Product Summary

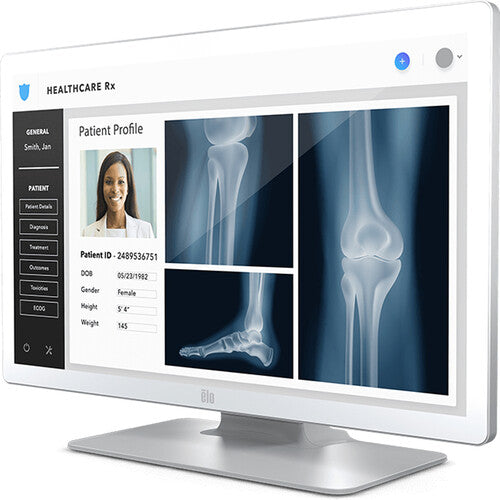

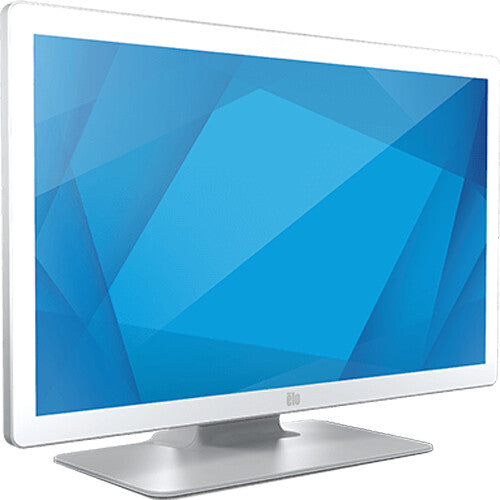

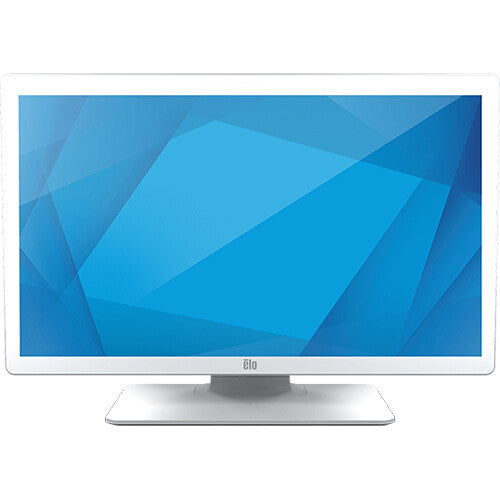

Elo Touch 2703LM 27" Medical Grade Touchscreen Monitor

The Elo Touch 2703LM is a 27-inch medical-grade touchscreen monitor engineered to deliver exceptional image quality, responsive touch performance, and healthcare-certified reliability. Featuring TouchPro® Projected Capacitive (PCAP) technology, DICOM Part 14 calibration, and 10-point multi-touch, the 2703LM is designed for electronic medical records (EMR), clinical image review, patient engagement, laboratory applications, and medical device integration. Built with IEC 60601-1 medical compliance and an IP54-sealed front, it offers dependable performance in demanding healthcare environments.

Medical-Grade Full HD Display

Deliver accurate, high-quality clinical images.

  • 27-inch TFT LCD display
  • 1920 × 1080 Full HD resolution
  • 300-nit brightness (270 nits with touch)
  • 1000:1 contrast ratio
  • DICOM Part 14 factory calibration

The display is factory calibrated to the DICOM GSDF curve, ensuring consistent image quality for secondary clinical image review and patient care.

TouchPro® PCAP Technology

Smooth, precise multi-touch interaction.

  • Projected Capacitive (PCAP) touchscreen
  • Supports up to 10 simultaneous touch points
  • Compatible with finger, gloved hand, and stylus input
  • Anti-glare edge-to-edge glass
  • Tablet-like touch experience

TouchPro® technology delivers fast, accurate touch response while supporting medical gloves commonly used in clinical environments.

Purpose-Built for Healthcare

Designed for medical environments.

  • IEC 60601-1 4th Edition compliant
  • IP54 front-sealed enclosure
  • Easy-to-clean anti-glare surface
  • Medical-grade power supply included
  • Healthcare-certified design

Purpose-built for hospitals, clinics, laboratories, pharmacies, and medical device manufacturers requiring dependable healthcare-grade displays.

Flexible Installation

Adapt to virtually any healthcare workspace.

  • Desktop stand option
  • 100 × 100 mm VESA mount compatible
  • Wall and pole mounting support
  • Optional ergonomic carrying handles
  • Optional HIPAA privacy screen

Flexible mounting options allow the monitor to integrate seamlessly into nurse stations, patient rooms, medical carts, and clinical workstations.

Comprehensive Connectivity

Integrate easily into healthcare systems.

  • HDMI input
  • VGA input
  • USB touch interface
  • Integrated USB 2.0 hub
  • Dual integrated 2W speakers

The integrated USB hub makes it easy to connect barcode scanners, fingerprint readers, and other medical peripherals directly to the display.

Commercial-Grade Reliability

Engineered for long-term performance.

  • 50,000-hour MTBF
  • Commercial-grade construction
  • Edge-to-edge zero-bezel design
  • Available in black or white
  • 3-year standard warranty

Designed to provide dependable performance in mission-critical healthcare environments with long product availability.

Elo Touch 2703LM 27" Full HD Medical Touchscreen Monitor with TouchPro (White, Includes Stand)

SKU: E659793 | UPC: 843173135496
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,037.95

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch 2703LM 27" Full HD Medical Touchscreen Monitor with TouchPro (White, Includes Stand) $1,037.95
Contact Us for Availability Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 27" LCD Display
  • TouchPro® Projected Capacitive (PCAP) Touch Technology
  • Medical-Grade Closed Frame Design
  • 1920 × 1080 Full HD Resolution
  • 300 nits Brightness (270 nits with Touch)
  • 10-Point Multi-Touch

Best For

  • 🏨 Hospitality

Technical Details

Specifications

Screen Size
27"
Native Resolution
1920 x 1080
Brightness
270 nits
Inputs
• Video: VGA and HDMI Touch interface: USB (Type B) and Serial (via VGA) Audio: Combo jack Power: DC power jack Peripherals: 4 Micro USB side ports (located on the top, bottom, left, and right) Host connections: 1 x USB 2.0 Type A port
VESA Pattern
100 x 100 mm
Elo

Elo Touch 2703LM 27" Full HD Medical Touchscreen Monitor with TouchPro (White, Includes Stand)

$1,037.95

Brightness

270 nits

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

15.5" H x 25.5" W x 1.8" D

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

1920 x 1080

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

Video: VGA and HDMI Touch interface: USB (Type B) and Serial (via VGA) Audio: Combo jack Power: DC power jack Peripherals: 4 Micro USB side ports (located on the top, bottom, left, and right) Host connections: 1 x USB 2.0 Type A port
