Key Features
- 55" 4K Medical Monitor
- 1500-Nit Peak Brightness
- 3D And 2D Imaging
- Landscape Surgical Installation
- HDR HLG Compatibility
- Medical-Grade Hygienic Design
1
/
4
1
4
Product Summary
Revolution in Surgical Imaging
Sony LMD-XH Series Medical Monitors redefine surgical imaging with exceptional 4K Ultra HD visuals in both 3D (LMD-XH550MT) and 2D (LMD-XH320MT). Featuring a resolution of 3840 x 2160 pixels (16:9 aspect ratio), HDR compatibility, and Local Dimming Technology, these monitors deliver lifelike images and unparalleled precision for modern clinical environments.
Key Specifications
- Resolution: 3840 x 2160 (4K Ultra HD).
- Contrast Ratio: 1,000,000:1.
-
Peak Brightness:
- LMD-XH550MT: Over 1,500 cd/m².
- LMD-XH320MT: Over 1,750 cd/m².
- Panel Technology: IPS LCD with anti-reflection structure.
- Orientation: Landscape.
HDR Compatibility
HLG (Hybrid Log-Gamma) Support ensures accurate HDR image reproduction, offering:
- Broader brightness ranges.
- Enhanced contrast and vibrant colors.
- True-to-life visualization for better precision during procedures.
Advanced Imaging Features
Local Dimming Technology
- Zone-Specific Backlight Control: Independently dims or brightens areas for optimal HDR performance.
- Enhanced Brightness: Redistributes power from dimmed regions to amplify bright areas, delivering more natural and lifelike visuals.
Wide Color Gamut
- BT.2020 Compliance: Covers a significantly wider color spectrum than BT.709 for superior color accuracy.
- Enables realistic visualization and detailed differentiation in medical imaging.
Anti-Reflection Panel
- Reduces glare and light dispersion for clear, high-contrast images in brightly lit environments.
- Optimized for operating rooms with minimal reflections from surgical lights.
Extensive 3D/2D Display Options
- 3D and 2D Signal Support: Compatible with HD and 4K formats.
- Input Connections: SDI (12G/3G), DisplayPort, HDMI, and DVI.
-
Display Modes:
- Side-by-side.
- Picture-in-Picture (PIP).
- Picture-out-Picture (POP).
- 3D Switching: Simple toggle between 3D and 2D modes via front panel controls.
Enhanced Usability
A.I.M.E.™ Technology
- Optimizes color, contrast, and shadow visibility for sharper image clarity.
- Facilitates more detailed and accurate image analysis.
Clone Output
- Outputs identical display content, including enhancements, to a second monitor or recording device.
- Supports both 4K and HD output resolutions for flexible use.
Intelligent Display Modes
- Enlarge smaller POP images with the V Full Mode for better viewing.
- Expand one or both POP images as needed for greater control.
Designed for Clinical Environments
Hygienic Design
- Smooth surfaces and small vents make cleaning and disinfection simple.
- Resilient against liquids and gels for rigorous clinical use.
Cable Management
- All ports are downward-facing for neat and organized connections.
- Multiple cable access points ensure flexibility during installation.
User-Friendly Controls
- LED-backlit control panel highlights active buttons for easy navigation, even in low light.
- Customizable buttons for frequently used functions.
Flexible Power Options
- LMD-XH320MT: Offers AC and DC powering with an optional adapter (AC-300MD).
Optional Enhancements
-
- Footswitch (FS-24): Allows hands-free control of key functions such as A.I.M.E. toggling, port switching, PIP/POP modes, and 3D/2D adjustments.
Sony LMD-XH550MT 55" 4K 3D/2D LCD Medical Monitor
Authorized Dealer
Authorized
Sony
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
Call for Price
BACK 2 SCHOOL SALE | additional discount in cart
Sony LMD-XH550MT 55" 4K 3D/2D LCD Medical Monitor
Call for Price
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
Revolution in Surgical Imaging
Sony LMD-XH Series Medical Monitors redefine surgical imaging with exceptional 4K Ultra HD visuals in both 3D (LMD-XH550MT) and 2D (LMD-XH320MT). Featuring a resolution of 3840 x 2160 pixels (16:9 aspect ratio), HDR compatibility, and Local Dimming Technology, these monitors deliver lifelike images and unparalleled precision for modern clinical environments.
Key Specifications
- Resolution: 3840 x 2160 (4K Ultra HD).
- Contrast Ratio: 1,000,000:1.
-
Peak Brightness:
- LMD-XH550MT: Over 1,500 cd/m².
- LMD-XH320MT: Over 1,750 cd/m².
- Panel Technology: IPS LCD with anti-reflection structure.
- Orientation: Landscape.
HDR Compatibility
HLG (Hybrid Log-Gamma) Support ensures accurate HDR image reproduction, offering:
- Broader brightness ranges.
- Enhanced contrast and vibrant colors.
- True-to-life visualization for better precision during procedures.
Advanced Imaging Features
Local Dimming Technology
- Zone-Specific Backlight Control: Independently dims or brightens areas for optimal HDR performance.
- Enhanced Brightness: Redistributes power from dimmed regions to amplify bright areas, delivering more natural and lifelike visuals.
Wide Color Gamut
- BT.2020 Compliance: Covers a significantly wider color spectrum than BT.709 for superior color accuracy.
- Enables realistic visualization and detailed differentiation in medical imaging.
Anti-Reflection Panel
- Reduces glare and light dispersion for clear, high-contrast images in brightly lit environments.
- Optimized for operating rooms with minimal reflections from surgical lights.
Extensive 3D/2D Display Options
- 3D and 2D Signal Support: Compatible with HD and 4K formats.
- Input Connections: SDI (12G/3G), DisplayPort, HDMI, and DVI.
-
Display Modes:
- Side-by-side.
- Picture-in-Picture (PIP).
- Picture-out-Picture (POP).
- 3D Switching: Simple toggle between 3D and 2D modes via front panel controls.
Enhanced Usability
A.I.M.E.™ Technology
- Optimizes color, contrast, and shadow visibility for sharper image clarity.
- Facilitates more detailed and accurate image analysis.
Clone Output
- Outputs identical display content, including enhancements, to a second monitor or recording device.
- Supports both 4K and HD output resolutions for flexible use.
Intelligent Display Modes
- Enlarge smaller POP images with the V Full Mode for better viewing.
- Expand one or both POP images as needed for greater control.
Designed for Clinical Environments
Hygienic Design
- Smooth surfaces and small vents make cleaning and disinfection simple.
- Resilient against liquids and gels for rigorous clinical use.

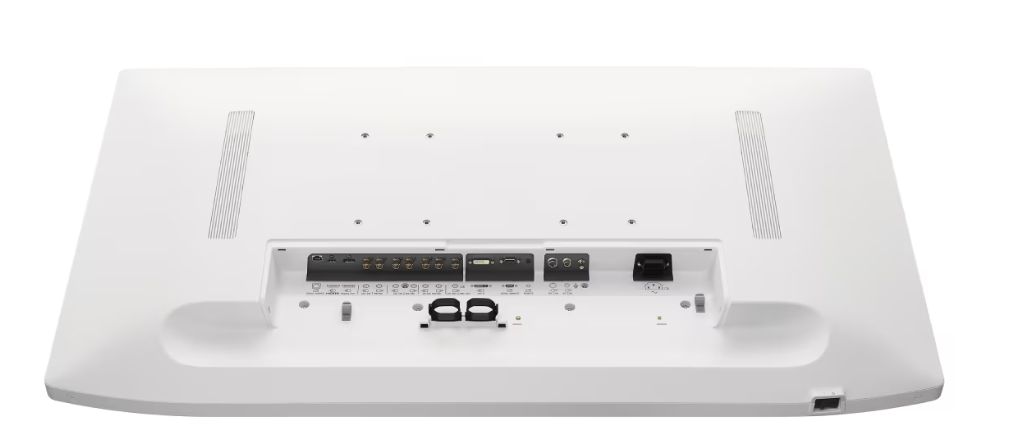

Cable Management
- All ports are downward-facing for neat and organized connections.
- Multiple cable access points ensure flexibility during installation.
User-Friendly Controls
- LED-backlit control panel highlights active buttons for easy navigation, even in low light.
- Customizable buttons for frequently used functions.
Flexible Power Options
- LMD-XH320MT: Offers AC and DC powering with an optional adapter (AC-300MD).
Optional Enhancements
-
- Footswitch (FS-24): Allows hands-free control of key functions such as A.I.M.E. toggling, port switching, PIP/POP modes, and 3D/2D adjustments.
Technical Details
Specifications
Screen Size
55"
Native Resolution
3840 x 2160 pixels
Brightness
520 cd/m²
Contrast Ratio
1,000,000:1
Display Orientation
Landscape
Viewing Angle
89/89 horizontal / 89/89 vertical
Inputs
• 3G/6G-SDI and HDMI
WiFi
Yes
Communication Port
D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
VESA Pattern
200 x 200 mm, 400 x 200 mm
Purchase Orders
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
- Contact name, email address & telephone number. Note: An email address is required to receive order/shipping confirmation.
- Billing name & address.
- Shipping address.
- Tax ID#. For tax exempt orders, please see the Tax Exempt information below.
- Purchase Order Number.
- Date needed. Please note: Up to 3–5 days are needed to process requests. This does not include delivery time.
- Authorized signature. Your purchase order can only be accepted when accompanied by the signature of the officer authorizing the purchase and when submitted on your organization's official purchase order form or letterhead.
- Purchase orders must be in excess of $75 excluding shipping. All prices are in USD.
- Sales tax is charged only on orders shipping to the state of Florida.
Submit Your Purchase Order
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comAttn: Purchase Orders
20400 NE 16th PL
North Miami Beach, FL 33179
Once we have all the information requested above, an account and order will be created.
Please Note
- Please allow 3–5 days for us to process requests.
- Confirmation emails are sent when the order is placed and another email is sent when the order ships.
- Please make all checks payable to OfficeWonderland Ltd. at the address referenced above.
- Payments on PO orders are due within 30 days.
Terms
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
In the Box
- AC power cord, Plug holder, Instruction manual (CD-ROM), Service Contact List, 4 x M6 x 12 mm screws, 3D Eye Shield Kit (CFV-E30SK), Instructions for Use of the 3D Eye Shield Kit
