Key Features
- 55" 4K Medical Monitor
- High-Brightness OptiContrast Panel
- Advanced A.I.M.E. Enhancement
- Flexible PIP POP Modes
- IEC Medical Safety Certified
- Easy-Clean Clinical Design
1
/
4
1
4
Product Summary
View Surgical Images with Unmatched Detail, Clarity, and Color in 4K
The LMD-X550MD is a 55-inch medical-grade LCD monitor delivering exceptionally high-quality 2D color video images with 4K resolution. Ideal for use in operating rooms, surgical centers, clinics, and doctors' offices, its ergonomic design and advanced features meet the demands of modern medical environments.
With four times the pixel count of Full HD, the LMD-X550MD provides unparalleled image clarity, making it easier to view fine details and maintain superior picture quality when zooming. Its multiple display modes enhance functionality during surgeries and medical procedures.
Key Features
4K Ultra HD Resolution
- Displays images with four times the detail of Full HD, ensuring superior clarity and precision for medical imaging.
High Brightness with OptiContrast Panel™
- The advanced panel design reduces light reflections and dispersion, delivering high contrast and improved visibility.
- Built-in anti-condensation technology prevents dew formation inside the panel.
Wider Color Gamut
- Offers a 43% wider color range than the BT.709 color space, providing more accurate and vivid image reproduction.
A.I.M.E.™ (Advanced Image Multiple Enhancer)
- Enhances visibility with:
- Structure Enhancement Mode: Highlights object outlines for sharper images.
- Color Enhancement Mode: Accentuates subtle tonal differences for improved object clarity.

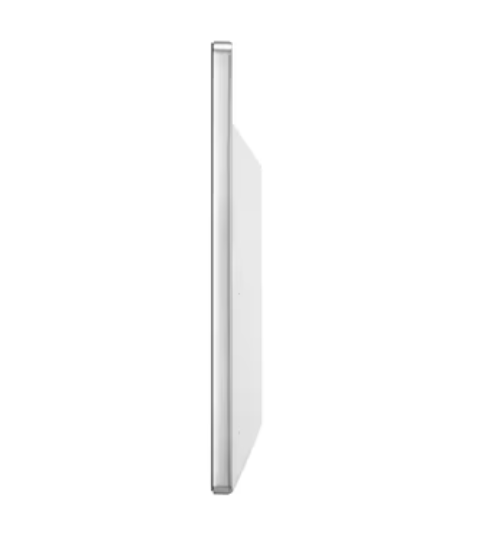

Slim and Ergonomic Design
- Compact, easy-grip design ensures effortless positioning.
- Narrow bezel maximizes the screen area while saving space.
Enhanced Usability
User-Friendly Control Panel
- Intuitive layout with LED backlighting highlights active buttons, improving visibility in dark environments.
- Customizable buttons allow quick access to frequently used functions.
Easy-to-Clean Design
- Flat surfaces simplify cleaning and disinfection of the screen and control panel.
Flexible Display Formats
- Quickly switch between formats such as:
- Rotation Image
- Side-by-Side
- Picture-in-Picture (PIP)
- Picture-out-Picture (POP)

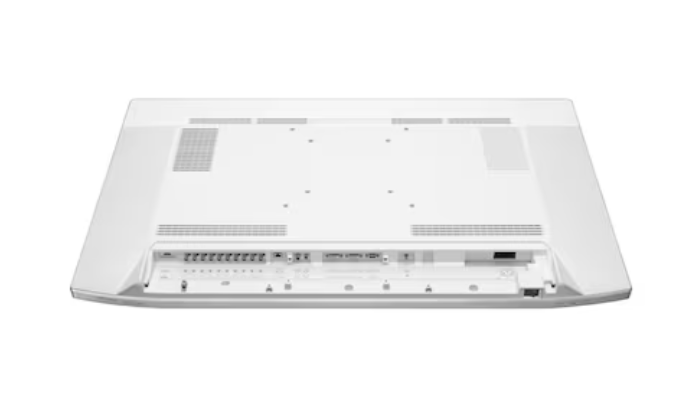

Installation-Friendly Cabling
- All connectors face downward, ensuring an organized and clean setup.
Compliance and Safety Standards
- Distributed in the U.S. and EU as a certified medical device, meeting standards like IEC 60601-1. Contact your local Sony sales office or authorized dealer for more information.
Optimal Size for Every Environment
- 31-inch Model: Perfect for endoscopy systems on trolleys, offering full 4K functionality in a medium-sized panel.
- 55-inch Model: Ideal for operating theaters, providing clear and detailed visuals when mounted at an optimal viewing distance.
The LMD-X550MD combines cutting-edge technology, ergonomic design, and medical-grade standards to deliver a superior viewing experience in demanding surgical environments.

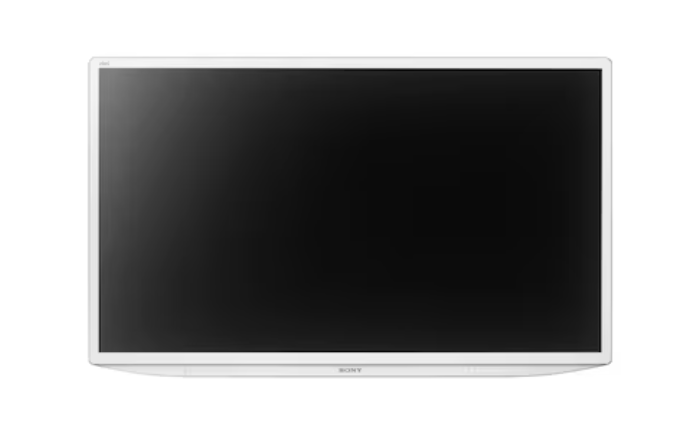

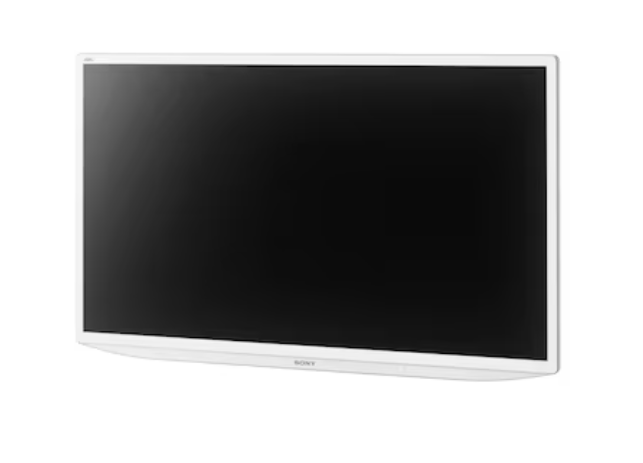

Sony LMD-X550MD 55" 4K 2D LCD medical monitor
Authorized Dealer
Authorized
Sony
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
Call for Price
BACK 2 SCHOOL SALE | additional discount in cart
Sony LMD-X550MD 55" 4K 2D LCD medical monitor
Call for Price
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
View Surgical Images with Unmatched Detail, Clarity, and Color in 4K
The LMD-X550MD is a 55-inch medical-grade LCD monitor delivering exceptionally high-quality 2D color video images with 4K resolution. Ideal for use in operating rooms, surgical centers, clinics, and doctors' offices, its ergonomic design and advanced features meet the demands of modern medical environments.
With four times the pixel count of Full HD, the LMD-X550MD provides unparalleled image clarity, making it easier to view fine details and maintain superior picture quality when zooming. Its multiple display modes enhance functionality during surgeries and medical procedures.
Key Features
4K Ultra HD Resolution
- Displays images with four times the detail of Full HD, ensuring superior clarity and precision for medical imaging.
High Brightness with OptiContrast Panel™
- The advanced panel design reduces light reflections and dispersion, delivering high contrast and improved visibility.
- Built-in anti-condensation technology prevents dew formation inside the panel.
Wider Color Gamut
- Offers a 43% wider color range than the BT.709 color space, providing more accurate and vivid image reproduction.
A.I.M.E.™ (Advanced Image Multiple Enhancer)
- Enhances visibility with:
- Structure Enhancement Mode: Highlights object outlines for sharper images.
- Color Enhancement Mode: Accentuates subtle tonal differences for improved object clarity.
Slim and Ergonomic Design
- Compact, easy-grip design ensures effortless positioning.
- Narrow bezel maximizes the screen area while saving space.
Enhanced Usability
User-Friendly Control Panel
- Intuitive layout with LED backlighting highlights active buttons, improving visibility in dark environments.
- Customizable buttons allow quick access to frequently used functions.
Easy-to-Clean Design
- Flat surfaces simplify cleaning and disinfection of the screen and control panel.
Flexible Display Formats
- Quickly switch between formats such as:
- Rotation Image
- Side-by-Side
- Picture-in-Picture (PIP)
- Picture-out-Picture (POP)
Installation-Friendly Cabling
- All connectors face downward, ensuring an organized and clean setup.
Compliance and Safety Standards
- Distributed in the U.S. and EU as a certified medical device, meeting standards like IEC 60601-1. Contact your local Sony sales office or authorized dealer for more information.
Optimal Size for Every Environment
- 31-inch Model: Perfect for endoscopy systems on trolleys, offering full 4K functionality in a medium-sized panel.
- 55-inch Model: Ideal for operating theaters, providing clear and detailed visuals when mounted at an optimal viewing distance.
The LMD-X550MD combines cutting-edge technology, ergonomic design, and medical-grade standards to deliver a superior viewing experience in demanding surgical environments.
Technical Details
Specifications
Screen Size
55"
Native Resolution
3840 x 2160
Contrast Ratio
1400:1
Display Orientation
Landscape
Display Technology
a-Si TFT Active Matrix LCD
Aspect Ratio
16:9
Viewing Angle
89/89 horizontal / 89/89 vertical
Inputs
• HDMI Input HDCP 1.4 correspondence DVI-D Input DVI-D (x1) (HDCP 1.4 correspondence) TMDS single link SDI Input BNC (x5) 3G/HD/SD-SDI
Outputs
• Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX) DVI-D Output DVI-D (x1) when HDCP disabling SDI Output BNC (x5) DC 5V/12V Output 5 V Output(x1), 8 W 12 V Output (x1) 20 W max
VESA Pattern
200 x 200 mm and 300 x 300 mm
