Key Features
- 31" 4K Medical Monitor
- 3D And 2D Imaging
- Advanced A.I.M.E. Enhancement
- Wide-Gamut Surgical Color
- IEC Medical Safety Certified
- Easy-Clean Ergonomic Design
1
/
3
1
3
Product Summary
Experience Surgical Precision in 3D or 2D with 4K Ultra HD Clarity
The LMD-X310MT is a 31-inch medical-grade widescreen LCD monitor that delivers exceptional 4K Ultra HD resolution in both 3D and 2D. Designed for use with endoscopic/laparoscopic cameras, surgical microscopes, and other medical imaging systems, it is optimized for hospital operating rooms, surgical centers, and clinical environments.
With four times the pixel count of Full HD, this monitor ensures unparalleled detail and clarity. Its advanced features, like multiple display modes, enhanced image processing, and ergonomic design, enhance functionality and usability in demanding medical settings.
Key Features
4K Ultra HD Resolution
- Displays images with four times the detail of Full HD, ensuring superior clarity for fine details and zoomed images.
3D and 2D Functionality
- Toggle between 3D and 2D modes via the display menu.
- On-screen indicators confirm the selected mode.
- Features a 3D/2D color matching function to minimize color shifts between modes.
- Depth and parallax adjustments are supported through a disparity simulation function.
High Brightness with OptiContrast Panel™
- Reduces light reflections and dispersion for improved contrast and visibility.
- Anti-condensation technology prevents dew formation inside the panel.
Wide Color Gamut
- Offers a 42% wider color range than the BT.709 color space for vivid and accurate image reproduction.
3D Advanced Image Multiple Enhancer (A.I.M.E.™)
- Enhances visibility with:
- Structure Enhancement Mode: Highlights object outlines for sharper images.
- Color Enhancement Mode: Accentuates subtle tonal differences for clearer visualizations.
Zoom Function
- Adjustable zoom settings (1x, 1.2x, 1.5x, or 2x) provide an enlarged view of small details without sacrificing image resolution.
HD/SD to 4K Upscaling
- Sony’s proprietary interpolation technology delivers a crisp, natural 4K view of lower-resolution images without blurring or artifacts.
Designed for Usability and Safety
Compact, Ergonomic Design
- Slim, easy-grip frame allows effortless monitor positioning.
- Narrow bezel maximizes the screen area while saving space.
Intuitive Control Panel
- LED backlit buttons highlight active controls, improving usability in dark environments.
- Customizable buttons provide quick access to frequently used functions.
Easy-to-Clean Surfaces
- Flat surfaces simplify cleaning and disinfection of the screen and control panel.
Versatile Display Modes
- Includes formats like:
- Rotation Image
- Side-by-Side
- Picture-in-Picture (PIP)
- Picture-out-Picture (POP)
- 3D PIP/POP options include two or three images, combining 3D/2D or multiple 2D views. Images can also be rotated 180 degrees.

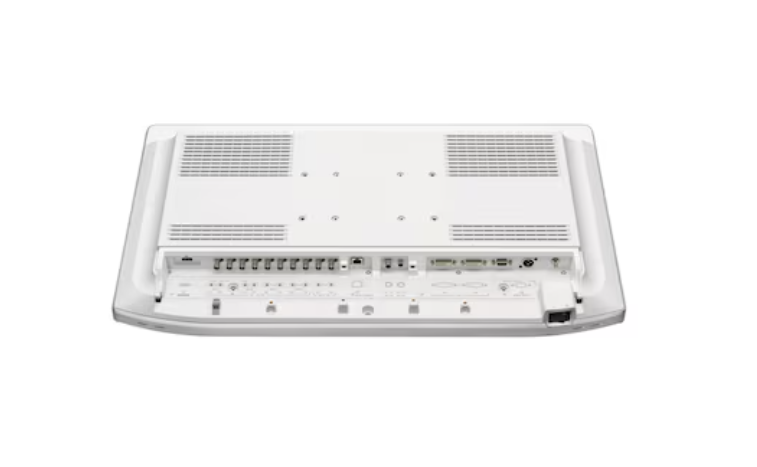

Installation-Friendly Cabling
- Downward-facing connectors simplify cable organization and setup.
Compliance and Accessories
- Certified Medical Device: Complies with standards like IEC 60601-1, ensuring safety and reliability.
- 3D Eye-Shield Starter Kit: Included for immediate 3D viewing, with additional shields available as optional accessories.
Monitor Size Options
- 31-inch Model: Ideal for endoscopy systems, offering full 4K performance in a compact design.
- 55-inch Model: Perfect for operating theaters, providing clear visuals at an optimal viewing distance.
The LMD-X310MT delivers advanced imaging technology, ergonomic design, and medical-grade reliability, making it a trusted choice for modern surgical environments. Contact your local Sony representative or authorized dealer for more information.

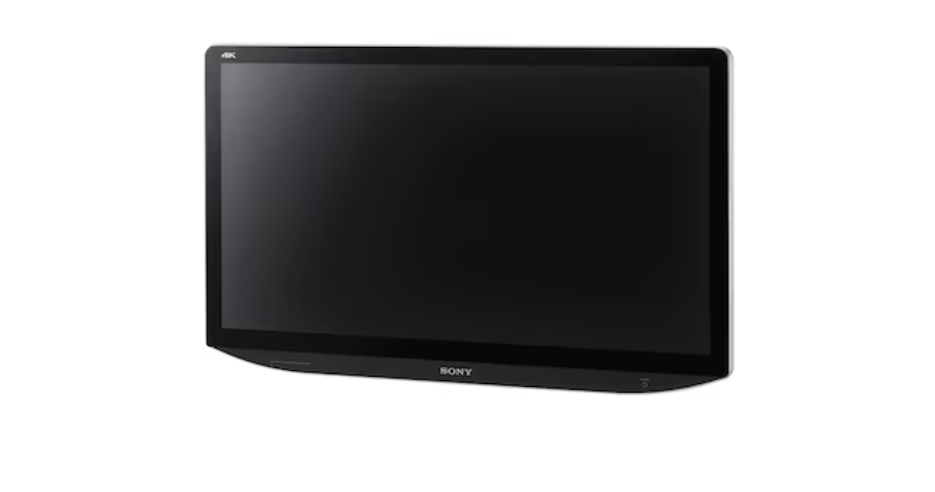

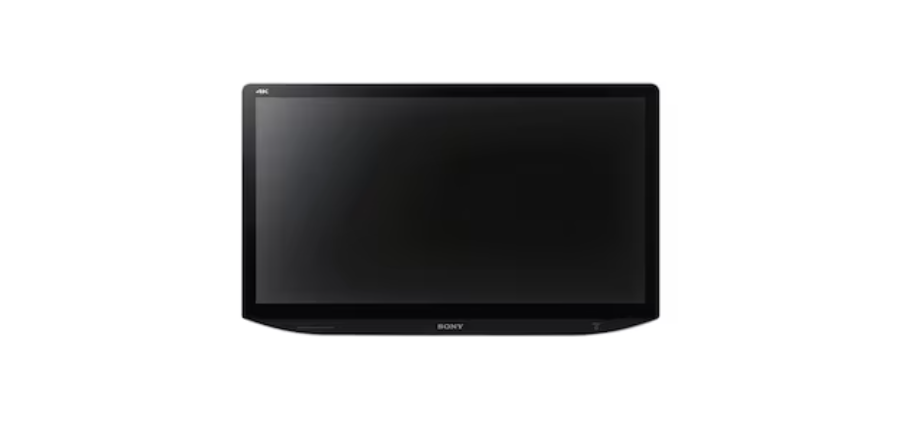

Sony LMD-X310MT 31" 4K 3D/2D LCD medical monitor
Authorized Dealer
Authorized
Sony
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
Call for Price
BACK 2 SCHOOL SALE | additional discount in cart
Sony LMD-X310MT 31" 4K 3D/2D LCD medical monitor
Call for Price
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
Experience Surgical Precision in 3D or 2D with 4K Ultra HD Clarity
The LMD-X310MT is a 31-inch medical-grade widescreen LCD monitor that delivers exceptional 4K Ultra HD resolution in both 3D and 2D. Designed for use with endoscopic/laparoscopic cameras, surgical microscopes, and other medical imaging systems, it is optimized for hospital operating rooms, surgical centers, and clinical environments.
With four times the pixel count of Full HD, this monitor ensures unparalleled detail and clarity. Its advanced features, like multiple display modes, enhanced image processing, and ergonomic design, enhance functionality and usability in demanding medical settings.
Key Features
4K Ultra HD Resolution
- Displays images with four times the detail of Full HD, ensuring superior clarity for fine details and zoomed images.
3D and 2D Functionality
- Toggle between 3D and 2D modes via the display menu.
- On-screen indicators confirm the selected mode.
- Features a 3D/2D color matching function to minimize color shifts between modes.
- Depth and parallax adjustments are supported through a disparity simulation function.
High Brightness with OptiContrast Panel™
- Reduces light reflections and dispersion for improved contrast and visibility.
- Anti-condensation technology prevents dew formation inside the panel.
Wide Color Gamut
- Offers a 42% wider color range than the BT.709 color space for vivid and accurate image reproduction.
3D Advanced Image Multiple Enhancer (A.I.M.E.™)
- Enhances visibility with:
- Structure Enhancement Mode: Highlights object outlines for sharper images.
- Color Enhancement Mode: Accentuates subtle tonal differences for clearer visualizations.
Zoom Function
- Adjustable zoom settings (1x, 1.2x, 1.5x, or 2x) provide an enlarged view of small details without sacrificing image resolution.
HD/SD to 4K Upscaling
- Sony’s proprietary interpolation technology delivers a crisp, natural 4K view of lower-resolution images without blurring or artifacts.
Designed for Usability and Safety
Compact, Ergonomic Design
- Slim, easy-grip frame allows effortless monitor positioning.
- Narrow bezel maximizes the screen area while saving space.
Intuitive Control Panel
- LED backlit buttons highlight active controls, improving usability in dark environments.
- Customizable buttons provide quick access to frequently used functions.
Easy-to-Clean Surfaces
- Flat surfaces simplify cleaning and disinfection of the screen and control panel.
Versatile Display Modes
- Includes formats like:
- Rotation Image
- Side-by-Side
- Picture-in-Picture (PIP)
- Picture-out-Picture (POP)
- 3D PIP/POP options include two or three images, combining 3D/2D or multiple 2D views. Images can also be rotated 180 degrees.
Installation-Friendly Cabling
- Downward-facing connectors simplify cable organization and setup.
Compliance and Accessories
- Certified Medical Device: Complies with standards like IEC 60601-1, ensuring safety and reliability.
- 3D Eye-Shield Starter Kit: Included for immediate 3D viewing, with additional shields available as optional accessories.
Monitor Size Options
- 31-inch Model: Ideal for endoscopy systems, offering full 4K performance in a compact design.
- 55-inch Model: Perfect for operating theaters, providing clear visuals at an optimal viewing distance.
The LMD-X310MT delivers advanced imaging technology, ergonomic design, and medical-grade reliability, making it a trusted choice for modern surgical environments. Contact your local Sony representative or authorized dealer for more information.
Technical Details
Specifications
Screen Size
31"
Native Resolution
4096 x 2160
Brightness
435 cd/m²
Contrast Ratio
1450:01:00
Display Orientation
Landscape
Display Technology
LCD with IPS
Aspect Ratio
17:09
Refresh Rate
50/60Hz
Viewing Angle
89/89 horizontal / 89/89 vertical
Inputs
• HDMI Input HDMI (x1) (HDCP 1.4 correspondence) DVI-D Input DVI-D (x1)(HDCP 1.4 correspondence) TMDS single link SDI Input BNC (x5) 3G/HD/SD-SDI Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
Outputs
• DVI-D Output DVI-D (x1) when HDCP disabling SDI Output BNC (x5) DC 5 V/ 12V Output 5V Output(x1), 8W 12V Output (x1) 20W max
Communication Port
D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
VESA Pattern
100 x 100 mm and 100 x 200 mm,
