Key Features
- 27" Full HD Medical
- 300-Nit Brightness
- Landscape Surgical Installation
- Flexible PIP POP Modes
- IPX1 Moisture Resistance
- Easy-Clean Flat Design
1
/
4
1
4
Product Summary
- 1920 x 1080 Full HD Resolution
- 300 Nit Brightness
- Landscape Orientation
- a-Si TFT Active Matrix LCD Panel Technology
Sony 27-inch Full HD Medical Monitor: High-Resolution Surgical Display
Clear, High-Resolution Images
The 27-inch Full HD display delivers sharp 1920 x 1080 resolution, designed for viewing 2D color video from surgical endoscopic/laparoscopic cameras and other medical imaging systems.
Ergonomic Design
Its slim, compact design is easy to grip, allowing users to adjust the monitor’s position with ease, improving flexibility during surgical procedures.
Maximized Screen Size
With a narrow bezel, this space-saving monitor maximizes the screen area, offering a larger display in a compact form.
User-Friendly Operation
Intuitive Control Panel
The easy-to-use control panel features LED backlighting on active buttons, ensuring clear visibility and minimizing accidental operation, even in dark environments.
Hygienic, Easy-Clean Design
The edge-to-edge flat design simplifies cleaning, allowing liquids and gels to be easily wiped from the surface, enhancing hygiene.
Versatile Input and Display Options
Wide Range of Inputs
Compatible with a broad range of digital and analog signal inputs in HD and Standard Definition formats.
Multiple Display Formats
Easily select from various display options, including Rotation Image, Side-by-Side, Picture-in-Picture (PIP), and Picture-out-Picture (POP) from the monitor menu.
Custom Input Naming
Rename inputs for convenience, such as "Endoscope," "Laparoscope," or other medical devices, for quick reference.
Custom Settings Recall
Store and instantly recall personalized picture settings with three assignable custom buttons.
Durable, Flexible, and Energy-Efficient
Moisture and Water Resistance
IPX1-rated protection (when used vertically) ensures resistance to moisture, simplifying cleaning and disinfection in medical environments.
Flexible Powering Options
Choose between direct AC input or an optional AC adapter for flexible installation (AC-120MD sold separately).
Energy-Saving Features
Reduce energy usage with a backlight limiting function and automatic Sleep mode when no input signal is detected.

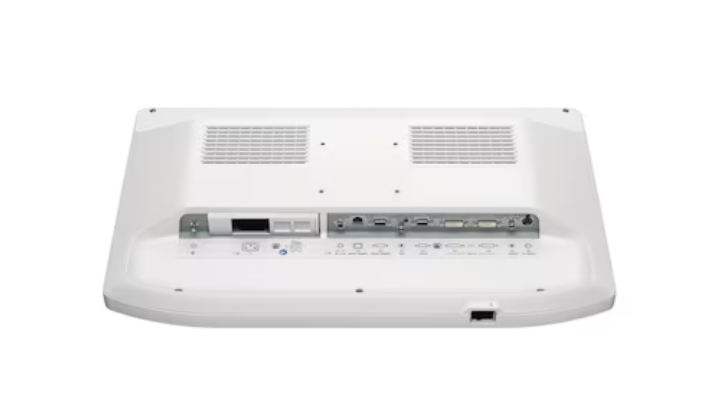

Neat Cable Management
All signal connectors face downward, making cable management and organization in the operating room easy.

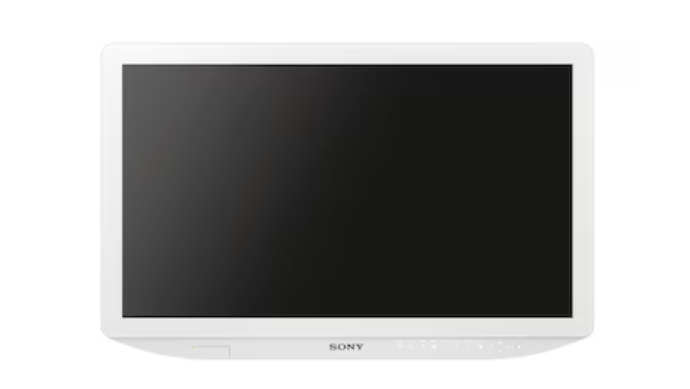

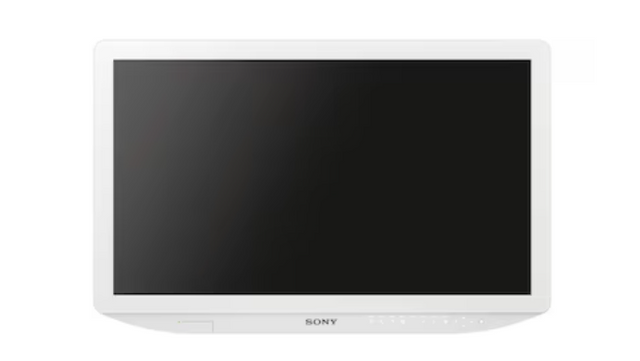

Sony LMD-2735MD 27-inch Full HD 2D LCD medical monitor
Authorized Dealer
Authorized
Sony
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
Call for Price
BACK 2 SCHOOL SALE | additional discount in cart
Sony LMD-2735MD 27-inch Full HD 2D LCD medical monitor
Call for Price
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
- 1920 x 1080 Full HD Resolution
- 300 Nit Brightness
- Landscape Orientation
- a-Si TFT Active Matrix LCD Panel Technology
Sony 27-inch Full HD Medical Monitor: High-Resolution Surgical Display
Clear, High-Resolution Images
The 27-inch Full HD display delivers sharp 1920 x 1080 resolution, designed for viewing 2D color video from surgical endoscopic/laparoscopic cameras and other medical imaging systems.
Ergonomic Design
Its slim, compact design is easy to grip, allowing users to adjust the monitor’s position with ease, improving flexibility during surgical procedures.
Maximized Screen Size
With a narrow bezel, this space-saving monitor maximizes the screen area, offering a larger display in a compact form.
User-Friendly Operation
Intuitive Control Panel
The easy-to-use control panel features LED backlighting on active buttons, ensuring clear visibility and minimizing accidental operation, even in dark environments.
Hygienic, Easy-Clean Design
The edge-to-edge flat design simplifies cleaning, allowing liquids and gels to be easily wiped from the surface, enhancing hygiene.
Versatile Input and Display Options
Wide Range of Inputs
Compatible with a broad range of digital and analog signal inputs in HD and Standard Definition formats.
Multiple Display Formats
Easily select from various display options, including Rotation Image, Side-by-Side, Picture-in-Picture (PIP), and Picture-out-Picture (POP) from the monitor menu.
Custom Input Naming
Rename inputs for convenience, such as "Endoscope," "Laparoscope," or other medical devices, for quick reference.
Custom Settings Recall
Store and instantly recall personalized picture settings with three assignable custom buttons.
Durable, Flexible, and Energy-Efficient
Moisture and Water Resistance
IPX1-rated protection (when used vertically) ensures resistance to moisture, simplifying cleaning and disinfection in medical environments.
Flexible Powering Options
Choose between direct AC input or an optional AC adapter for flexible installation (AC-120MD sold separately).
Energy-Saving Features
Reduce energy usage with a backlight limiting function and automatic Sleep mode when no input signal is detected.
Neat Cable Management
All signal connectors face downward, making cable management and organization in the operating room easy.
Technical Details
Specifications
Screen Size
27"
Native Resolution
1920 x 1080
Brightness
300 cd/m²
Contrast Ratio
1000:1
Display Orientation
Landscape
Display Technology
LCD with IPS
Aspect Ratio
16:09
Viewing Angle
89/89 horizontal / 89/89 vertical
Inputs
• Composite Input BNC (x1) Y/C Input Mini-DIN 4-pin (x1) Y: 1.0 Vp-p (75 Ω) C: 0.286 Vp-p (75 Ω, NTSC burst) 0.3 Vp-p (75 Ω, PAL burst) RGB, Component Input RGB: Via HD-15 connector (D-sub 15-pin)* 0.7 Vp-p (75 Ω) (when Sync On Green, 0.3 Vp-p sync) * Needs SMF-405 sold separately Component: Via HD-15 connector (D-sub 15-pin)* Y: 1.0 Vp-p (75 Ω) (including 0.3 Vp-p sync) Pb: 0.7 Vp-p (75 Ω), Pr: 0.7 Vp-p (75 Ω) * Needs SMF-405 sold separately DVI-D Input DVI-D (x1) TMDS single link SDI Input BNC (x1) HD/SD-SDI HD15 Input D-sub 15-pin (x1) RGB: 0.7 Vp-p (75 Ω) H/V Sync: Total level (polarity free) Plug & Play function : corresponds to DDC2B External Sync Input Via HD-15 connector (D-sub 15-pin) * * Needs SMF-405 sold separately 0.3 Vp-p to 4.0 Vp-p (75 Ω) Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX) DC Input XLR-type 3-pin (male) (x1), 24 V DC (output impedance 0.05 ohms or less)
Outputs
• DVI-D Output DVI-D (x1) DC 5 V Output (x1), up to 2.0 A
VESA Pattern
100 x 100 mm
