Product Summary






Pro:Centric® Direct Support











The independent server is compatible with LG's Pro:Centric® Direct, which is a Content Management Software based on HTML5. This software provides a robust UI (user interface) editor, allowing for customization of widgets and a variety of theme templates. With Pro:Centric® Direct, hotels can create a distinctive guest experience and showcase their brand identity and uniqueness through LG's in-room television. It offers the flexibility to personalize and tailor the content displayed on the TV to meet specific hotel requirements and guest preferences.




















Server Admin Client





The PCA or PCD Admin Client Graphical User Interface (GUI) is made available to System Integrator administration users, offering a comprehensive range of features for managing and supporting the Pro:Centric system. This GUI can be accessed remotely over the Internet using a VPN service and a standard web browser. It provides convenient access to the following functionalities:

• System Status, Logs, and Server Settings
• Configuration for Channel Lineup and Electronic Program Guide
• UI Editor and Customization Tools
• Managing Television Settings and Software Updates

For further details, refer to the appropriate Pro:Centric® Admin Client User Guide (also
accessible on the system).












Pro:Centric® Server Installation











Secure remote management of this server functionality is facilitated through the integration of a reliable, built-in VPN client. This client establishes a secure connection with the centralized VPN server, enabling seamless remote configuration management and software updates.

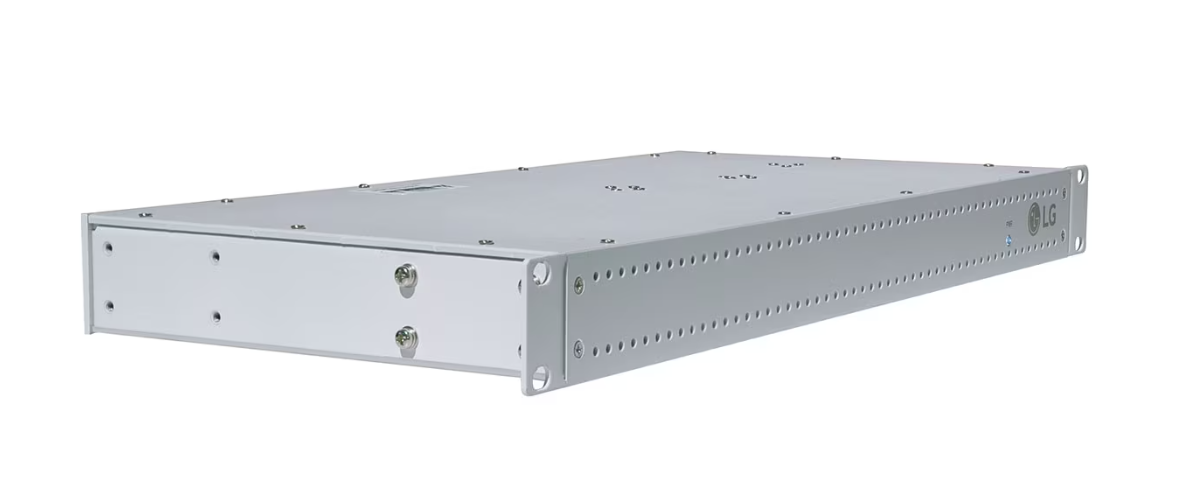

LG PCS500R Pro:Centric Server with HTML5 Content Management, UI Editor, and Server Admin Client

SKU: PCS500R | UPC: 719192641662
Authorized Dealer Authorized LG Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
LG PCS500R Pro:Centric Server with HTML5 Content Management, UI Editor, and Server Admin Client Call for Price
Contact Us for Availability Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Pro:Centric Hospitality Server
  • HTML5 Content Management
  • Customizable Guest Interfaces
  • Remote Server Administration
  • Secure Built-In VPN
  • Centralized Software Updates
LG PCS500R Pro Centric® Server with HTML5 Content Management, UI Editor, and Server Admin Client
LG

LG PCS500R Pro:Centric Server with HTML5 Content Management, UI Editor, and Server Admin Client

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="tech-spacs">
<h2 class="tech-spacs-title">SYSTEM SOFTWARE</h2>
<div class="tech-spacs-contents">
<ul>
<li>Software</li>
<li>Linux OS kernel 3.10, PCA (Java) and PCD (HTML) server applications</li>
</ul>
</div>
</div>
<div class="tech-spacs">
<h2 class="tech-spacs-title">ELECTRICAL</h2>
<div class="tech-spacs-contents">
<ul>
<li>Data Output</li>
<li>RF, 100/1000T Ethernet</li>
<li>DC Input</li>
<li>+19V DC @ 2.2Amps Adaptor</li>
<li>RF Output Span</li>
<li>Up to 8 Channels (Typically 48-64MHz) (non-contiguous)</li>
<li>Active Output Level</li>
<li>-1dBm (+47.75dBmV) Typical</li>
<li>Frequency Accuracy</li>
<li>+/- 5 ppm</li>
<li>Ethernet Connector (Feature Port)</li>
<li>100/1000 BaseT, Full Duplex RJ-45</li>
<li>CPU/Memory/Storage</li>
<li>64-bit Intel i3-6100U (4 threads at 2.3GHz), 16GB memory, 128GB SSD/Expandable storage with M.2 NGFF or 2.5" SSD</li>
</ul>
</div>
</div>
<div class="tech-spacs">
<h2 class="tech-spacs-title">MODULATION SPECIFICATIONS</h2>
<div class="tech-spacs-contents">
<ul>
<li>Standard</li>
<li>ITU-T J.83 Annex B (QAM-B)</li>
<li>Symbol Rate</li>
<li>64-QAM, 5.056941 MBaud/256-QAM, 5.360537 MBaud</li>
<li>Parameters</li>
<li>64-QAM, 7/8 Convolutional Code, 1/32 Guard Interval Ratio, 2K FFT, 13 Segments</li>
</ul>
</div>
</div>
<div class="tech-spacs">
<h2 class="tech-spacs-title">ENVIRONMENTAL OPERATING CONDITIONS</h2>
<ul>
<li>Temperature</li>
<li>32° to 104° Fahrenheit</li>
<li>Humidity</li>
<li>95% Non-condensing</li>
</ul>
<div class="tech-spacs-contents"></div>
</div>
<div class="tech-spacs">
<h2 class="tech-spacs-title">ENVIRONMENTAL STORAGE CONDITIONS</h2>
<ul>
<li>Storage Temperature</li>
<li>-4° to 158° Fahrenheit (-20° to 70° Celsius)</li>
<li>Humidity</li>
<li>95% Non-condensing</li>
</ul>
<div class="tech-spacs-contents"></div>
</div>
<div class="tech-spacs">
<h2 class="tech-spacs-title">CERTIFICATION</h2>
<div class="tech-spacs-contents">
<ul>
<li>Regulatory Compliance</li>
<li>FCC, UL, RoHS</li>
</ul>
</div>
</div>
<div class="tech-spacs">
<h2 id="hasDimension" class="tech-spacs-title">DIMENSIONS</h2>
<ul>
<li>Unit Dimensions (W × H × D)</li>
<li>19.0” x 1.7” x 8.5”</li>
<li>Unit Weight (Rack-only)</li>
<li>5.65 Ibs.</li>
</ul>
<div class="tech-spacs-contents"></div>
</div>
