Product Summary

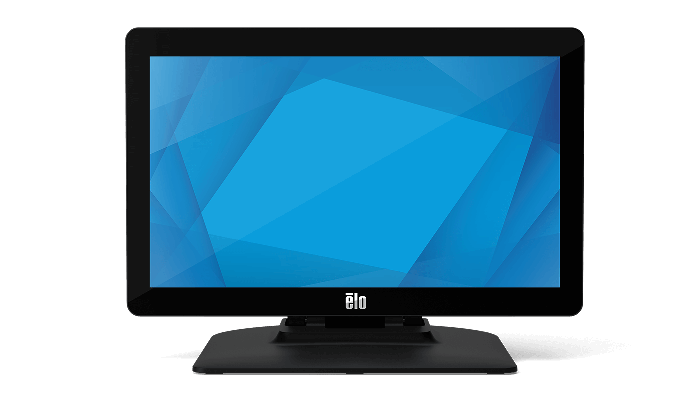

Elo Touch 1502L E125496 15.6" Full HD Touchscreen Monitor

The Elo Touch 1502L E125496 is a 15.6-inch commercial touchscreen monitor designed for retail, hospitality, healthcare, self-service kiosks, and point-of-sale applications. This standless Full HD model features TouchPro® Projected Capacitive (PCAP) technology with 10-point multi-touch, delivering a responsive, tablet-like experience through its edge-to-edge glass design. Equipped with USB-C, HDMI connectivity, and support for Elo Edge Connect™ peripherals, the 1502L offers flexible integration and customization for a wide range of commercial deployments.

Brilliant Full HD Display

Deliver crisp visuals for interactive business applications.

  • 15.6-inch LED-backlit TFT LCD
  • 1920 × 1080 Full HD resolution
  • 250-nit panel brightness (225 nits with DC power)
  • 700:1 contrast ratio
  • 16:9 widescreen aspect ratio
  • Anti-glare display surface

The Full HD display provides sharp text, vibrant colors, and reduced reflections for excellent visibility in commercial environments.

TouchPro® PCAP Technology

Responsive, tablet-like multi-touch performance.

  • Projected Capacitive (PCAP) touchscreen
  • Supports up to 10 simultaneous touch points
  • Edge-to-edge glass design
  • Finger and glove touch support
  • Fast, accurate touch response

TouchPro® technology delivers precise, drift-free interaction for retail, hospitality, and self-service applications.

Standless Commercial Design

Optimized for custom installations.

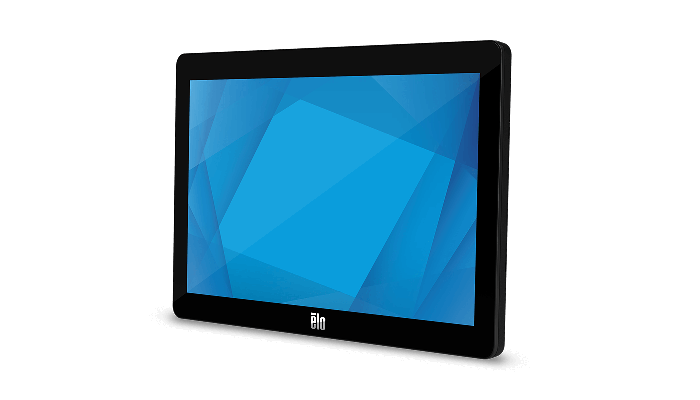

  • Standless configuration (E125496)
  • Slim 32.4 mm panel depth

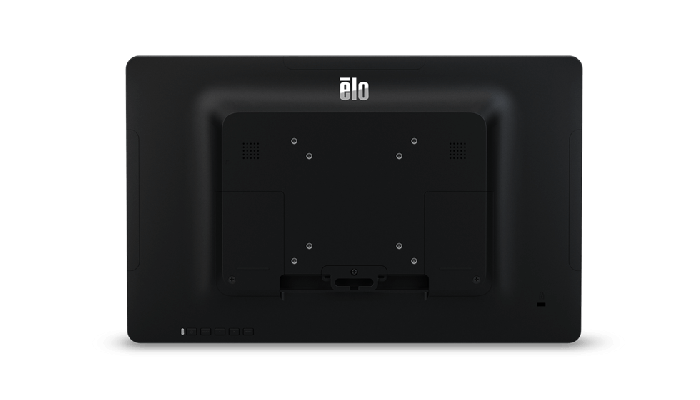

  • 75 × 75 mm VESA mounting
  • Wall, kiosk, or custom enclosure installation
  • Compact commercial footprint

The standless design is ideal for OEM integrations, kiosks, and space-saving commercial installations.

Elo Edge Connect™ Expandability

Customize your interactive solution.

  • Magnetic stripe reader (MSR)
  • Fingerprint scanner
  • Barcode scanner
  • RFID/NFC reader
  • Webcam
  • Speaker bar
  • EMV payment cradle
  • Status light

The Elo Edge Connect™ ecosystem allows you to add up to three optional peripherals directly to the monitor for a clean, integrated solution.

Flexible Connectivity

Integrates easily with modern commercial systems.

  • USB-C (video, touch, and power)
  • HDMI input
  • USB touch interface
  • Audio support
  • Cable management system

USB-C simplifies installation by carrying video, touch, and power through a single cable when supported.

Commercial-Grade Reliability

Built for continuous business operation.

  • IPX1 front-side water resistance
  • IK07 impact-resistant front glass
  • Commercial-grade construction
  • Anti-glare protective surface
  • 3-year manufacturer's warranty

Designed to withstand demanding commercial environments while delivering dependable long-term performance.

Elo Touch 1502L Full HD 15" Touchscreen Monitor E125496

SKU: E125496 | UPC: 843173124063
Authorized Dealer Authorized Elo Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$799.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Elo Touch 1502L Full HD 15" Touchscreen Monitor E125496 $799.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 16-Inch Full HD Touchscreen
  • Bright 250-Nit Commercial Display
  • 10-Point TouchPro PCAP Touch
  • Single-Cable USB-C Connectivity
  • Standless VESA Mount Design
  • Expandable Edge Connect Accessories

Best For

  • 🛍️ Retail / Digital Signage
  • 🏨 Hospitality

Technical Details

Specifications

Screen Size
15.6"
Native Resolution
1920 x 1080 (Full HD)
Brightness
Typical: 180 nits LCD Panel: 250 nits PCAP + DC Power: 225 nits PCAP + USB-C 5V Power: 180 nits
Contrast Ratio
700:01:00
Display Orientation
Landscape
Response Time
30 ms
Viewing Angle
160° horizontal, 160° vertical
Inputs
• 1 x USB Type-C (for video, touch, and power) 1 x HDMI 1 x Micro-HDMI (connects to VGA with an optional adapter) 3 x Micro-USB ports (for Elo Edge Connect peripherals) 1 x 12V D/C input 1 x Audio jack (Line-in
Sound Output
2W x 2
WiFi
No
VESA Pattern
75mm and 100mm
