Key Features
- 37–65" In-Wall Articulating Mount
- Landscape Or Portrait Mounting
- Built-In AV Equipment Box
- Full 180-Degree Swivel Range
- ADA-Compliant Low-Profile Design
- New-Build Or Retrofit Installation
1
/
2
1
2
Product Summary
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Knock-outs provide the ability to mount up to four single gang outlets
- Compatible with RACO 420 gang box or equivalent
Peerless-AV’s Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
- Includes Articulating Mount with 400 x 400mm VESA adaptors
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Landscape or portrait mounting options increases display versatility
- Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
- Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit |Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Knock-outs provide the ability to mount up to four single gang outlets
- Compatible with RACO 420 gang box or equivalent
- Integrated cable tie locations

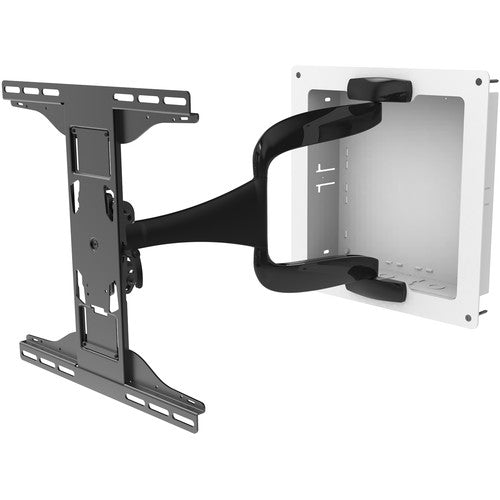

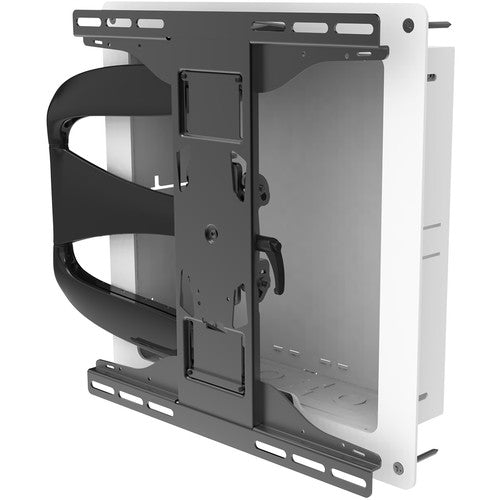

Peerless-AV IM747PU Designer Articulating Mount with In-Wall Box For 37" to 65" Ultra-Thin Displays
Authorized Dealer
Authorized
Peerless
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$659.00
BACK 2 SCHOOL SALE | additional discount in cart
Peerless-AV IM747PU Designer Articulating Mount with In-Wall Box For 37" to 65" Ultra-Thin Displays
$659.00
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Knock-outs provide the ability to mount up to four single gang outlets
- Compatible with RACO 420 gang box or equivalent
Peerless-AV’s Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
- Includes Articulating Mount with 400 x 400mm VESA adaptors
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
- Landscape or portrait mounting options increases display versatility
- Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
- Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit |Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
- Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
- Knock-outs provide the ability to mount up to four single gang outlets
- Compatible with RACO 420 gang box or equivalent
- Integrated cable tie locations
Technical Details
Specifications
VESA Pattern
400x400mm (15.75x15.75")
