Product Summary

Product Overview

The Christie Captiva DWU500S is a professional-grade WUXGA 1DLP ultra-short-throw laser projector. It is one of the best solutions for maximizing small spaces without sacrificing visual quality or brightness.

Technical Performance

  • Resolution: WUXGA (1920 x 1200) for 16:10 widescreen performance.
  • Brightness: 4,500 ANSI Lumens for vivid imagery.
  • Longevity: 20,000 hours of low-cost laser operation.
  • Throw Ratio: 0.25:1 ultra-short-throw lens.

Installation & Versatility

This projector stands out because of its flexible installation options. With 4-corner geometry adjustment and the ability to operate in any orientation, it is perfect for complex digital signage and interactive whiteboard setups.

CHRISTIE Captiva DWU500S WUXGA 1DLP  Ultra Short Throw Laser Projector (Black)

SKU: 171-037101-01
Authorized Dealer Authorized CHRISTIE Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$4,253.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
CHRISTIE Captiva DWU500S WUXGA 1DLP  Ultra Short Throw Laser Projector (Black) $4,253.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • WUXGA 1920 x 1200
  • 4,500 ANSI lumens
  • 0.25:1 ultra short throw
  • 20,000-hour laser operation
  • Quiet 29dB performance

Technical Details

Specifications

Lumens (ANSI)
4500
Native Resolution
1920 x 1200
Display Technology
DLP
Contrast Ratio
1800:01:00
Aspect Ratio
16:10 (WUXGA)
Throw Distance
130" to 150"
Image Size Diagonal
130" - 150"
Lens
• Focus adjustment lens • 0:25:1 ultra short throw lens offsets • Fixed offset based on image size
Short Throw
Yes

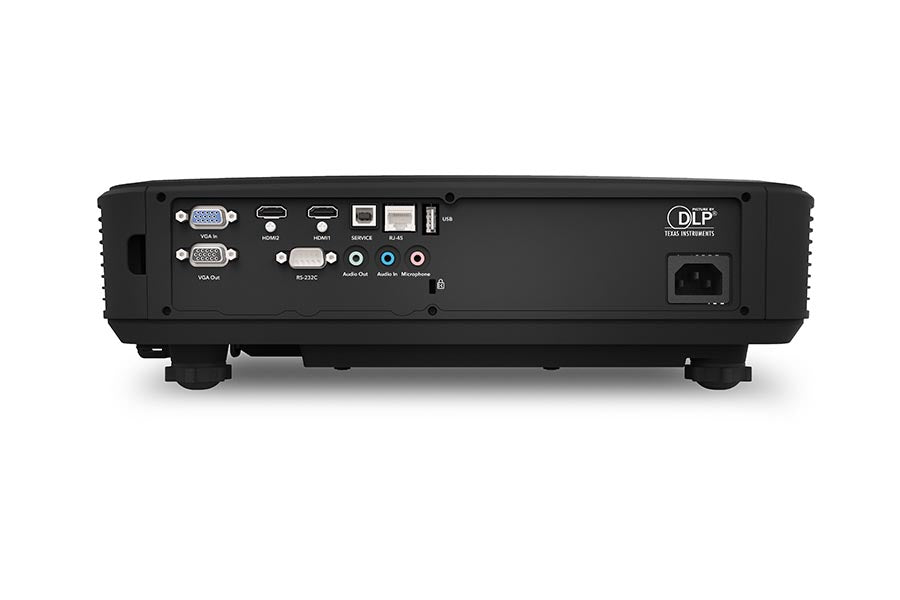

Inputs
• standard • HDMI x 2 • VGA x 1 • VGA audio in (3.5mm phone jack) • Microphone input • USB A - for power out only (5V/1.5A) max input pixel rate • 1600 x 1200 @ 60Hz (162 MHz) • 1920 x 1200 @ 60Hz reduced blanking (154 MHz) 3D • Frame packed/side-by-side/top and bottom 3D (HDMI 1.4a) • Frame sequential DLP link 3D (VGA/HDMI) • Frame sequential DLP link 3D (1024 x 768 @120Hz / 1280 x 720 @120Hz)
Outputs
• VGA monitor out • 10W speaker • Audio output (3.5mm phone jack)
Wireless Networking
No
Speakers
10.0 W Mono
Audible Noise
29 dB
Lamp Life
20000 hours
Projector Methods
Front, Ceiling, Rear
Dimensions (W × D × H)
3.46" x 15.08" x 12.50" (HxWxD)
Unit Weight
12.79lbs (5.8kg)
