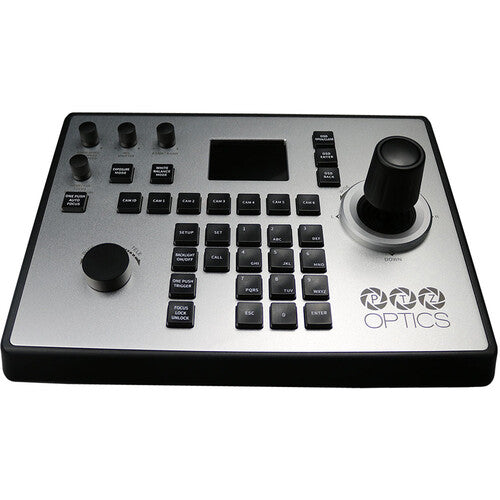

• PTZOptics PT-JOY-G4 IP Serial Joystick Controller top view

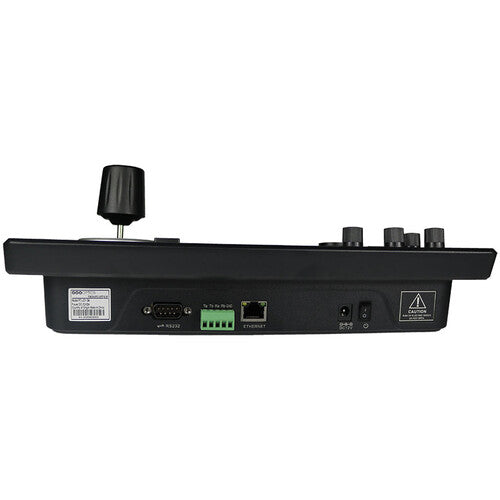

  • PTZOptics PT-JOY-G4 IP Serial Joystick Controller input output
  • PTZOptics PT-JOY-G4 IP Serial Joystick Controller

PTZOptics PT-JOY-G4 IP/Serial Joystick Controller (4th Generation)

SKU: PTJOYG4  |  UPC: 840170500166
$999.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

SPRING SALE | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n Serial & VISCA-over-IP Controller\n Control up to 255 PTZ Cameras\n For All PTZOptics & Other VISCA Cameras\n Customizable Pan/Tilt/Zoom Speeds\n 255 Camera Presets, 9 Quick Presets\n Focus, Iris & Zoom Control Buttons\n Focus Lock/Unlock Control, PoE Support\n Exposure & White Balance Control\n Camera OSD & Large LCD Status Display\n Import/Export Settings via LAN\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

Recommended Solutions

Loading recommendations...

  • Serial & VISCA-over-IP Controller

  • Control up to 255 PTZ Cameras

  • For All PTZOptics & Other VISCA Cameras

  • Customizable Pan/Tilt/Zoom Speeds

  • 255 Camera Presets, 9 Quick Presets

  • Focus, Iris & Zoom Control Buttons

  • Focus Lock/Unlock Control, PoE Support

  • Exposure & White Balance Control

  • Camera OSD & Large LCD Status Display

  • Import/Export Settings via LAN






Control up to 255 PTZ cameras using IP or serial communication with the 4th generation PT-JOY-G4 IP/Serial Joystick Controller from PTZOptics. The PT-JOY-G4 offers joystick and button control for up to 255 PTZ cameras via IP and seven cameras via serial protocols, with support for VISCA, VISCA-over-IP, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen as well as an on-screen display on your camera feed.

The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer settings on the PTZ cameras. Other features include glowing buttons for working in the dark, 255 camera presets, and nine quick presets buttons. You can import and export configurations using IP.

The PT-JOY-G4 supports a variety of camera models and manufacturers, and you can simultaneously control multiple brands such as HuddleCamHD, Sony, PTZOptics, BirdDog, and NewTek. The unit comes with an 8' long RS-232C cable and a 12 VDC universal power supply. It can also be powered using Power-over-Ethernet (PoE).






Features





IP, RS-232, RS-422, and RS-485 communication







VISCA-over-IP, Pelco-P, Pelco-D, ONVIF, and VISCA protocols







Camera on-screen display control and built-in LCD screen







Control up to 255 cameras







Control multiple different PTZ camera brands simultaneously, including HuddleCamHD, PTZOptics, BirdDog, and NewTek, with limited Sony PTZ control







Full pan/tilt/zoom PTZ camera control with speed adjustments on the fly







Store 255 presets and nine quick presets







Exposure and white balance control







Power-over-Ethernet (PoE) support







Fine-tune zoom and focus control dials, redesigned joystick, and focus lock/unlock







Glowing buttons for viewing in dark rooms







Import and export settings via LAN







Power adapter and 8' RS-232C cable are included
