Product Summary


  • Signal Processor for ADECIA

  • Customizable Communications Solutions

  • Connect to Two RM-CG Ceiling Mics

  • Connect to Two VXL1B-16P Speakers

  • Compatible with SWR2311P-10G PoE Switch

  • Auto Tuning for Optimization of Sound

  • Auto Mixing for Optimal Balance of Audio

  • USB, VoIP, Analog, Bluetooth I/O

  • Network Audio Support for Dante


System integrators and installers looking for a complete and customized communication solution for meeting spaces and classroom audio will be impressed with the Yamaha RM-CR Remote Conference Processor, the heart of the ADECIA system that helps overcome challenges with implementation, configuration, and room acoustics.

The RM-CR is compatible with a variety of optional components, including RM-CG ceiling array microphones, VXL-16P line-array PoE+ powered speakers, and the SWR2311P-10G PoE network switch. The processor automatically recognizes connected devices on the network for audio routing and implements Auto Tuning functions that automatically measures and provides the optimum sound setting for the environment.

Yamaha RM-CR Remote Conference Processor with Dante

SKU: RMCRW
Authorized Dealer Authorized Yamaha Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
Yamaha RM-CR Remote Conference Processor with Dante Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

General
RM-CR
Dimensions W 215 mm × D 260 mm × H 44 mm
Weight 1.6 kg
Supported OS Windows 11, Windows 10 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), macOS 12, macOS 11, macOS 10.15
Power Requirements PoE+ (IEEE 802.3at, LLDP), DC 48 V
Maximum Power Consumption 15.0 W
Connector RJ 45, USB, XLR balanced, RCA
In Operation Temperature 0 - 40 ℃
Humidity 30 % - 90 % (No condensation)
Storage Temperature -20 - 60 ℃
Humidity 20 % - 90 % (No condensation)
Indicator Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator (x3)
Mount Table Mount, Rack Mount
Maximum Device Number with RM-CR -
Accessories Installation Manual, USB Cable (A-B) 5 m (16.4 ft), USB Cable (A-micro B) 1 m (3.3 ft), 4x Rubber foot, Access Panel
Options RM-MTL: Table Mount Kit, RM-MRK: Rack Mount Kit
Ether1 Dante Audio/Dante Control, Remote Control, WebUI, PoE+
Ether2/Ether3 Corporate Network, Remote Control, SIP, Web UI
USB USB2.0, Network Class, Web UI, Fixed IP
Audio I/O Dante 16in/16out
USB USB2.0, Audio Class 1.0, Input: 2 ch, Output: 2 ch @48 kHz
Mic Input XLR balanced, Input 2 ch
AUX RCA unbalanced (Line Level), Input: 2 ch, Output: 2 ch
Speaker Out RCA unbalanced (Line Level), Output: 2 ch
Bluetooth Version Bluetooth 4.2
Supported Profiles HFP (1.6), A2DP, AVRCP
Supported Codec CVSD, SBC, mSBC
Wireless Output Class2
Maximum Communication Distance 10 m (32.8 ft) (no obstacles)
Radio Frequency (Operational Frequency) 2,402 to 2,480 MHz
Maximum Output Power (EIRP) 4.0 dBm (2.5 mW)
SIP Call Handling Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured)
Call Bridging Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user
Codecs G.711, G.722HD, G.729ab, G.726
DTMF Support RTP event, SIP in-band, SIP info package
Security SRTP Support (RFC 1889), IETF SIP support(RFC 3261 and companion RFCs)
Sampling Rate 48 kHz
Bit Depth 24 bit
Latency 8 [ms] (Dante In to USB Out, includes signal processing)
Frequency Response 20 Hz – 20 kHz

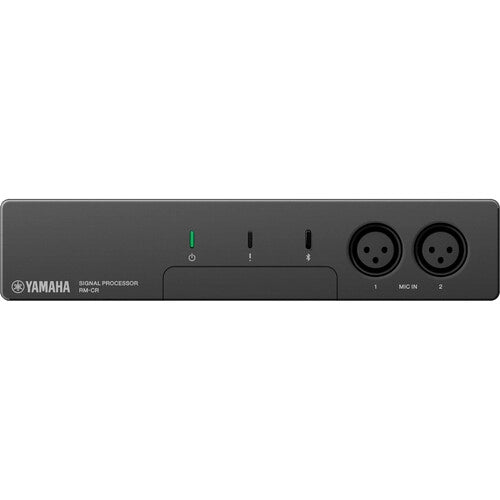

Yamaha RM-CR Remote Conference Processor with Dante 1
