Product Summary


  • Frequency response: 160Hz – 16kHz(-10dB)
  • Latency: 58
  • Dynamic Range: 118.6 dBA
  • Microphone for ADECIA System
  • Customizable Communications Solutions
  • Dynamic Voice Tracking for Human Voice
  • Four Auto Tracking Beams
  • Works with RM-CR Signal Processor
  • Incorporates Innovative Technologies
  • Network Audio Support for Dante
  • Single PoE Network Cable Connection
  • Supports Multiple Mounting Methods



System integrators and installers looking for a complete and customized communication solution for meeting spaces, and classroom audio will be impressed with the black Yamaha RM-CG, a beamforming ceiling array microphone that's part of the ADECIA system and includes remarkable processing technology that enables high-quality communication.

The RM-CG utilizes four auto-tracking beams to track simultaneous speech, allowing the dynamic voice tracking technology to scan for the human voice and ensure lively conversations. Yamaha incorporated several innovative technologies into the system including Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation.

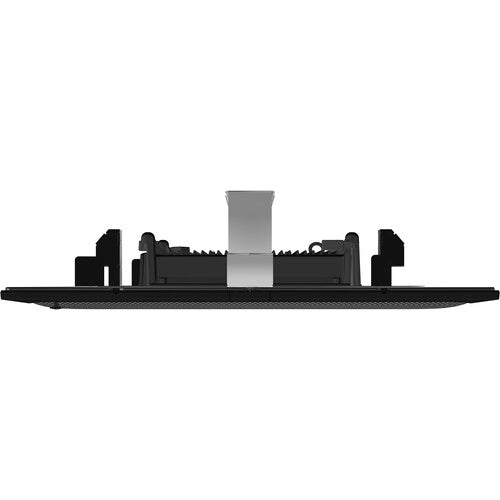

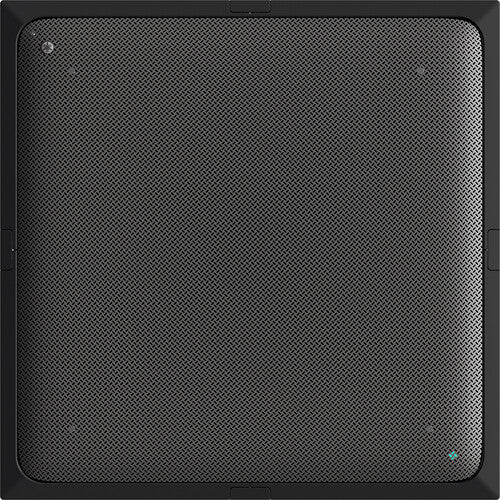

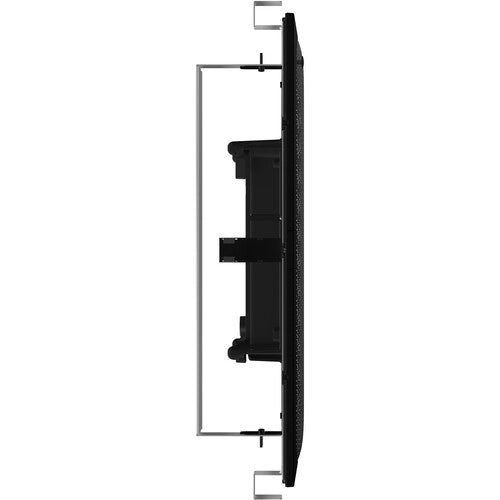

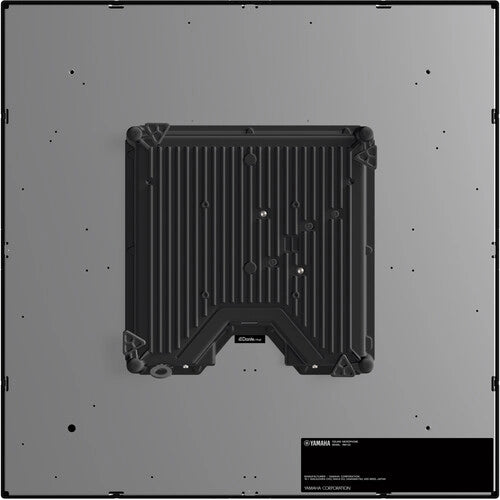

Yamaha RM-CG-B Ceiling Array Microphone (Black)

SKU: RMCGB | UPC: 889025130042
Authorized Dealer Authorized Yamaha Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$4,499.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Yamaha RM-CG-B Ceiling Array Microphone (Black) $4,499.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

Dimensions (W × D × H)
22.05 x 22.05 x 3.54 inches
General

RM – CG NETWORK SPECIFICATIONS

Ether1
Dante Audio/Dante Control, Remote Control, WebUI, PoE
Cable requirements
Cat 5e or higher (STP Recommended)

RM – CG AUDIO SPECIFICATIONS

Frequency response
160Hz – 16kHz(-10dB)
Sampling Rate
48kHz
Bit depth
24bit
Latency
58 [ms] (including signal processing)
Audio I/O Dante
1in x 2out  In1=AEC reference signal/Out1=output of beam mix, Out2= output of beam mix(simple processed)
Maximum input level of SPL(0dB
117.8 dB SPL
Self Noise
-0.8 dBA SPL
SNR(Ref. 94 dB SPL at 1 kHz
94.8 dBA
Sensitivity
-23.8 dBFS/Pa
Dynamic Range
118.6 dBA
Signal Processing
Multi beam tracking, Adaptive Echo Canceler,Noise Reduction, Dereverberation,Auto Mixer, Auto Gain Control,Parametric EQ,Output Gain

RM CG GENERAL

Description
Ceiling Microphone
Color
Black, White
Dimensions (WxDxH)
W560×D560mm×H90mm(including protrusions/microphone panel: H22mm)
Weight
5.6kg
Power requirements
PoE(IEEE 802.3af), DC 48V
Maximum Power Consumption
7.2 W
In Operation
Temperature 0℃~40℃ Humidity 30%~90% (No condensation)
Storage
Temperature -20℃~60℃ Humidity 20%~90% (No condensation)
Indicator
Front Indicator(Mute/Unmute & Status) ・Network Port Indicator
Mount
Ceiling Mount (*can’t replace a grid ceiling panel.) Wire hanging VESA mount
Max device number with RM-CR
2(Connection with other than RM-CR is not limited to this device)
Accessories
Construction description, (Guarantee), grillex1, screws for grille (M3x8mm)x5(*), screw coverx4, cutting template x1, Cringx1, screws for C ring x2, hanger anglex1, screws for hanger angle(M4x20mm)x5(*), terminal coverx1, safety wire x1,binding bandx1, clamp platex2 (*)including a spare respectively
Dust Protection
IP5X for dust protection(with junction cover)
Plenum Rating
UL2043(with junction cover)
Power Requirements
PoE (IEEE 802.3af)
