Product Summary


  • Frequency Response: 20Hz - 20kHz

  • Dynamic Range: 100.5dBA

  • Latency: 8ms


Included within the ADECIA solution family, the ADECIA Tabletop Microphone & Line Array Speaker Solution offering features the same easy setup and auto configuration features available through the RM-CR audio processor. Installation of the wired tabletop microphones is done through a LAN cable to the PoE switch. Up to 14 microphone pods (four microphones per pod) can be added for scalability.

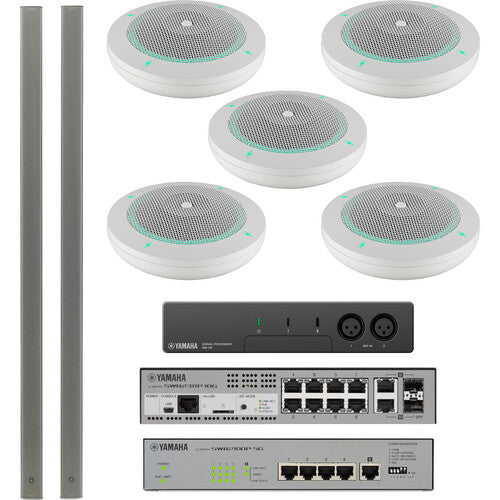

Yamaha AD-5TT-WW Adecia Wired Mic. Bundle:5-RM-TT-B Mics(W)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(W)

SKU: AD5TTWW
Authorized Dealer Authorized Yamaha Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$9,137.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Yamaha AD-5TT-WW Adecia Wired Mic. Bundle:5-RM-TT-B Mics(W)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(W) $9,137.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Frequency Response: 20Hz - 20kHz</li>\n <li>Dynamic Range: 100.5dBA</li>\n <li>Latency: 8ms</li>\n</ul>

Technical Details

Specifications

General
RM-TT GENERAL Dimensions 140 (W) × 41.5 (H) × 140 (D) mm Weight 310g Power Requirements PoE (IEEE 802.3af) Maximum Power Consumption 4.5W Connector RJ45 In Operation Temp/Humidity 0°C - 40°C / 30% - 90% (no condensation) Storage Temperature/Humidity -20°C - 60°C / 20% - 90% (no condensation) Indicator Mute indicator (Mute/Unmute), Status indicator, Network port indicator Max Device Number with RM-CR 14 Accessories Installation manual, Tabletop mounting adapter, Screw for mounting x 3, Spacer x 3 RM-TT NETWORK Ethernet Dante, Remote Control, Web UI, PoE Cable Requirements CAT5e or higher (STP) RM-TT AUDIO SPECIFICATIONS Audio I/O Dante 1in/2out Sampling Rate 48kHz Bit Depth 24bit Frequency Response 160Hz - 16kHz (-10dB) Max Input Level of SPL (0dBFS) 106.8dB SPL Self Noise 6.3dBA SPL SN Ratio Ref. 94dB SPL at 1kHz 87.7dBA Sensitivity -12.8dBFS/Pa Dynamic Range 100.5dBA Signal Processing Auto Voice Tracking, Selectable Polar Pattern (Cardioid, Hyper-cardioid, Super-cardioid, Omnidirectional, Bidirectional, Troid), Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain RM-CR GENERAL Dimensions 215 (W) x 44 (H) x 260 (D) mm Weight 1.6kg Power Requirements PoE+ (IEEE 802.3at, LLDP), DC 48V Maximum Power Consumption 15.0W In Operation Temp/Humidity 0°C - 40°C / 30% - 90% (no condensation) Storage Temperature/Humidity -20°C - 60°C / 20% - 90% (no condensation) Indicator Power indicator, Status indicator, Bluetooth indicator, Network port indicator x 3 Accessories Installation manual, USB Cable (A-B) 5m (16.4ft), USB Cable (A-microB) 1m (3.3ft), Rubber foot x 4, Access panel Options Rack Mount Kit RM-MTL, Table Mount Kit RM-MRK RM-CR NETWORK Ether1 Dante, Remote Control, Web UI, PoE+ Ether2/Ether3 Corporate Network, Remote Control, SIP, Web UI USB Network (Front) USB2.0, Network Class, Web UI, Fixed IP Cable Requirements Ethernet1/2/3: CAT5e or higher (STP) USB Network : USB Cable (A-microB) RM-CR AUDIO SPECIFICATIONS Audio I/O Dante 16in/16out Audio I/O USB USB2.0, Audio Class 1.0, Input: 2ch, Output: 2ch @48kHz Audio I/O Microphone Input XLR Balanced, Input: 2ch Audio I/O Aux RCA Unbalanced (Line Level), Input: 2ch, Output: 2ch Audio I/O Speaker Out RCA Unbalanced (Line Level), Output: 2ch Audio I/O Bluetooth Version 4.2 Supported Profiles: HFP (1.6), A2DP, AVRCP Supported Codec: CVSD, SBC, mSBC Wireless Output: Class2 Maximum Communication Distance: 10m (32.8ft) (no obstacles) Radio Frequency (Operational Frequency): 2,402MHz - 2,480MHz Maximum Output Power (EIRP): 4.0dBm (2.5mW) Audio I/O SIP Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Redial, Call timer, Call ID, Voice mail notifications (switch configured) Call Bridging: Supports bridging SIP, USB, BT and AUX calls. Join, Split, Hold, Resume, 5+1 lines: up to 2 SIP calls, 1 USB call, 1 Bluetooth call, 1 AUX, Plus the user Codecs: G.711, G.722HD, G.729ab, G.726 DTMF Support: RTP event, SIP in-band, SIP info package Security: SRTP support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs) Sampling Rate 48kHz Bit Depth 24bit Latency 8ms (Dante In to USB Out, includes signal processing) Frequency Response 20Hz - 20kHz
Yamaha Adecia Wired Mic. Bundle 5-RM-TT-B Mics(W)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(W)
Yamaha

Yamaha AD-5TT-WW Adecia Wired Mic. Bundle:5-RM-TT-B Mics(W)RM-CR,SWR-2311P-10G,SWR-2100-5G,2-VXL1B-16P(W)

$9,137.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

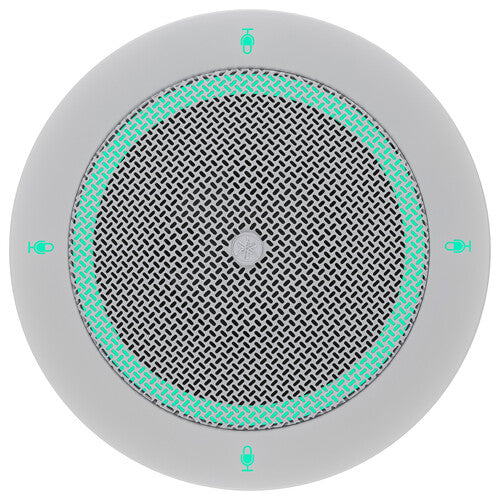

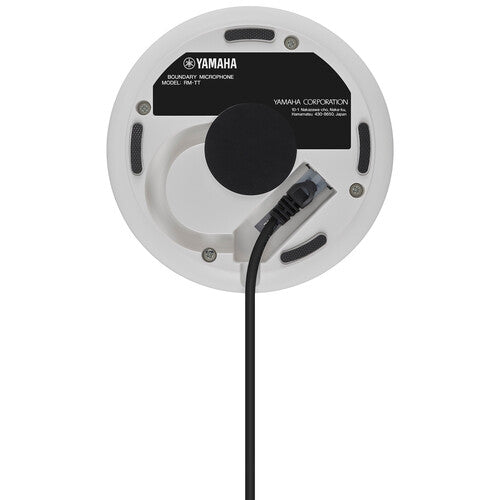

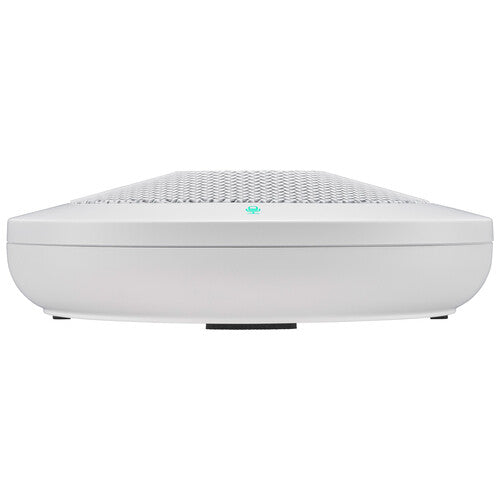

RM-TT GENERAL
Dimensions
140 (W) × 41.5 (H) × 140 (D) mm
Weight
310g
Power Requirements
PoE (IEEE 802.3af)
Maximum Power Consumption
4.5W
Connector
RJ45
In Operation Temp/Humidity
0°C - 40°C / 30% - 90% (no condensation)
Storage Temperature/Humidity
-20°C - 60°C / 20% - 90% (no condensation)
Indicator
Mute indicator (Mute/Unmute), Status indicator, Network port indicator
Max Device Number with RM-CR
14
Accessories
Installation manual, Tabletop mounting adapter, Screw for mounting x 3, Spacer x 3
RM-TT NETWORK
Ethernet
Dante, Remote Control, Web UI, PoE
Cable Requirements
CAT5e or higher (STP)
RM-TT AUDIO SPECIFICATIONS
Audio I/O Dante
1in/2out
Sampling Rate
48kHz
Bit Depth
24bit
Frequency Response
160Hz - 16kHz (-10dB)
Max Input Level of SPL (0dBFS)
106.8dB SPL
Self Noise
6.3dBA SPL
SN Ratio Ref. 94dB SPL at 1kHz
87.7dBA
Sensitivity
-12.8dBFS/Pa
Dynamic Range
100.5dBA
Signal Processing
Auto Voice Tracking, Selectable Polar Pattern (Cardioid, Hyper-cardioid, Super-cardioid, Omnidirectional, Bidirectional, Troid), Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain
RM-CR GENERAL
Dimensions
215 (W) x 44 (H) x 260 (D) mm
Weight
1.6kg
Power Requirements
PoE+ (IEEE 802.3at, LLDP), DC 48V
Maximum Power Consumption
15.0W
In Operation Temp/Humidity
0°C - 40°C / 30% - 90% (no condensation)
Storage Temperature/Humidity
-20°C - 60°C / 20% - 90% (no condensation)
Indicator
Power indicator, Status indicator, Bluetooth indicator, Network port indicator x 3
Accessories
Installation manual, USB Cable (A-B) 5m (16.4ft), USB Cable (A-microB) 1m (3.3ft), Rubber foot x 4, Access panel
Options
Rack Mount Kit RM-MTL, Table Mount Kit RM-MRK
RM-CR NETWORK
Ether1
Dante, Remote Control, Web UI, PoE+
Ether2/Ether3
Corporate Network, Remote Control, SIP, Web UI
USB Network (Front)
USB2.0, Network Class, Web UI, Fixed IP
Cable Requirements
Ethernet1/2/3: CAT5e or higher (STP) USB Network : USB Cable (A-microB)
RM-CR AUDIO SPECIFICATIONS
Audio I/O Dante
16in/16out
Audio I/O USB
USB2.0, Audio Class 1.0, Input: 2ch, Output: 2ch @48kHz
Audio I/O Microphone Input
XLR Balanced, Input: 2ch
Audio I/O Aux
RCA Unbalanced (Line Level), Input: 2ch, Output: 2ch
Audio I/O Speaker Out
RCA Unbalanced (Line Level), Output: 2ch
Audio I/O Bluetooth
Version 4.2 Supported Profiles: HFP (1.6), A2DP, AVRCP Supported Codec: CVSD, SBC, mSBC Wireless Output: Class2 Maximum Communication Distance: 10m (32.8ft) (no obstacles) Radio Frequency (Operational Frequency): 2,402MHz - 2,480MHz Maximum Output Power (EIRP): 4.0dBm (2.5mW)
Audio I/O SIP
Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Redial, Call timer, Call ID, Voice mail notifications (switch configured) Call Bridging: Supports bridging SIP, USB, BT and AUX calls. Join, Split, Hold, Resume, 5+1 lines: up to 2 SIP calls, 1 USB call, 1 Bluetooth call, 1 AUX, Plus the user Codecs: G.711, G.722HD, G.729ab, G.726 DTMF Support: RTP event, SIP in-band, SIP info package Security: SRTP support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs)
Sampling Rate
48kHz
Bit Depth
24bit
Latency
8ms (Dante In to USB Out, includes signal processing)
Frequency Response
20Hz - 20kHz
