$10,087.00
Technical Details

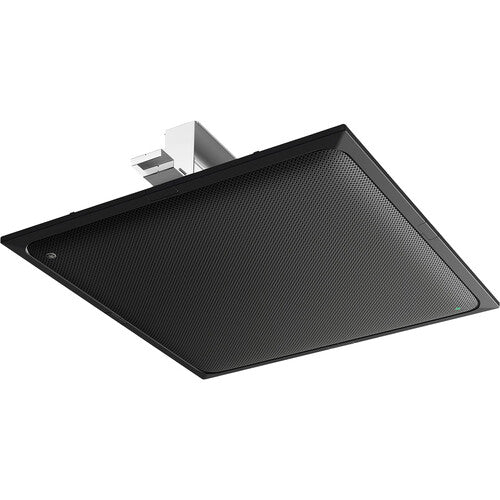

| Audio I/O | Dante: 1 x Input, 2 x Outputs |
| Sampling Rate | 48 kHz |
| Bit Depth | 24 Bit |
| Latency | 56 ms (Except Dante Connection) |
| Frequency Response | 160 Hz to 16 kHz (-10 dB) |
| SPL Level | 117.8 dB Maximum Input Level of SPL (0 dBFS) |
| Self Noise | -0.8 dBA |
| SNR | 94.8 dB (Ref. 94 dB SPL at 1 kHz) |
| Sensitivity | -23.8 dB/Pa |
| Dynamic Range | 118.6 dB |
| Signal Processing | Multi-Beam Tracking, Acoustic Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto-Gain Control, User Program EQ, Output Gain |
| Connector | RJ45 |
| Ethernet | Dante Audio/Dante Control, Remote Control, WebUI, PoE+ |
| Cable Requirements | Cat 5e or Higher (STP Recommended) |
| Indicator | Front Indicator (Mute/Unmute & Status) Network Port Indicator |
| Power | PoE (IEEE 802.3af), 48 VDC |
| Power Consumption | 7.2 W, Maximum |
| IP Rating | Dust Protection: IP5X Equivalent |
| Plenum Rating | UL2043 (With Junction Cover) |
| Temperature & Humidity | Temperature in Operation: 32 to 104°F / 0 to 40°C Temperature in Storage: -4 to 140°F / -20 to 60°C Humidity in Operation: 30 to 90% Humidity in Storage: 20 to 90% |
| Color | Black |

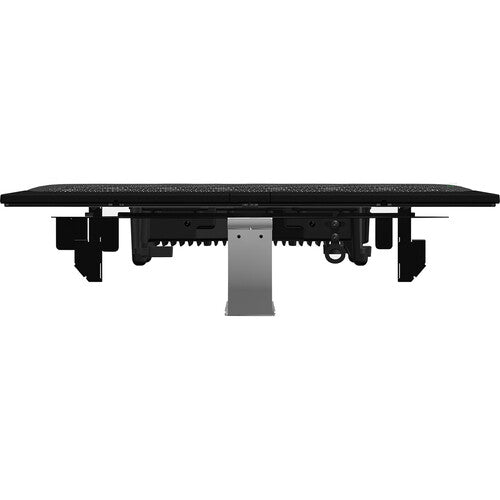

| Dimensions | 22 x 22 x 3.5" / 560 × 560 × 90 mm (Includes Protrusion/Microphone Panel: 0.86" / 22 mm) |
| Weight | 12.3 lb / 5.6 kg |
| Frequency Response | 20 Hz to 20 kHz |
| Sampling Rate | 48 kHz |
| Bit Depth | 24 Bit |
| Latency | 8 ms (Dante In to USB Out, Includes Signal Processing) |

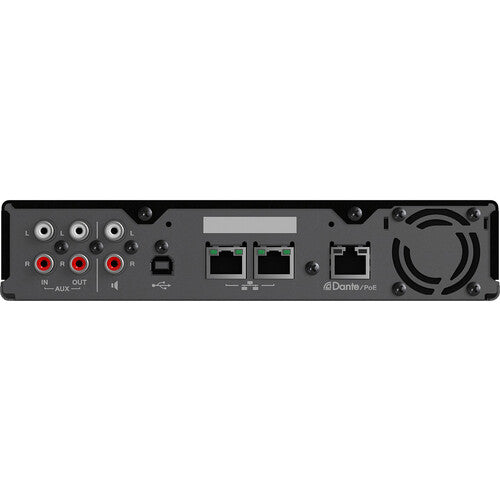

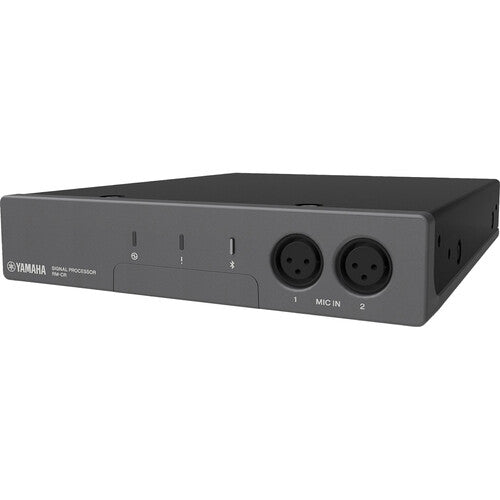

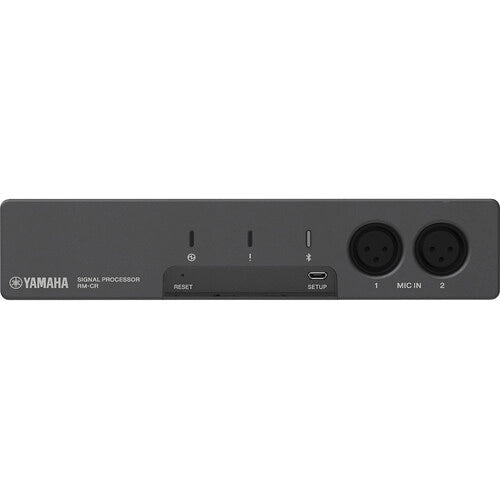

| Audio I/O | Dante: 16 In x 16 Out USB: USB 2.0. Audio Class 1.0, Input: 2 Channels, Output: 2 Channel at 48 kHz Microphone: 2 x XLR-3-31 Type (Balanced, 2-Pin Hot) Inputs Aux: RCA Unbalanced (Line Level), Input: 2 Channels, Output: 2 Channels Speaker Out: RCA Unbalanced (Line Level), Output: 2 Channel |
| Audio Input Levels | Mic In 1,2: -46 dBu (Nominal) Aux In L,R: -14 dBV (Nominal) |
| Analog Output Levels | Aux Out L, R: -14 dBV (Nominal) +6 dBV (Maximum, 1 Kilohm Source) Speaker Out L, R: -14 dBV (Nominal) +6 dBV (Maximum, 1 Kilohm Source) |
| Bluetooth | Version 4.2 Supported Profiles: HFP (1.6), A2DP, AVRCP Supported Codec: CVSD, SBC, mSBC Wireless Output: Class 2 Maximum Communication Distance: 32.8' / 10 m (No Obstacles) Radio Frequency (Operational Frequency): 2402 to 2480 MHz Maximum Output Power (EIRP): 4.0 dBm (2.5 mW) |
| SIP | Call Handling: Dial, Answer, Hold, Resume, Forwarding, Do Not Disturb, Call ID, and Voice Mail Notifications (Switch Configured) Call Bridging: Supports Bridging SIP, USB, BT, and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP Calls, 1 USB Call, 1 Bluetooth Call, 1 Aux, Plus the User Codecs: G.711, G.722HD, G.729ab, and G.726 DTMF Support: RTP Event, SIP In-Band, SIP Info Package Security: SRTP Support (RFC 1889), IETF SIP Support (RFC 3261 and Companion RFCs) |
| Ports | Ethernet Port 1 (Dante) Dante, Remote Control, Web UI, PoE+ Ethernet Port 2/3 (Corporate) Corporate Network, Remote Control, SIP, Web UI USB Network (Front) USB 2.0, Network Class: WebUI, Fixed IP |
| Cable Requirements | Ethernet Ports 1, 2/3 : Cat 5e or Higher (STP) Front USB Port: USB Cable (Type-A to Micro-USB) |
| Power Requirements | PoE+ (IEEE 802.3 at LLDP, 48 VDC) Maximum Power Consumption: 15 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Humidity (Non-Condensing) | 30 to 90% |
| Indicators | Power Indicator Status Indicator Bluetooth Indicator 3 x Network Port Indicators |
| Dimensions (D x H x W) | 10.2 x 1.7 x 8.5" / 260 x 44 x 215 mm |
| Weight | 3.5 lb / 1.6 kg |
| LAN Port | Standard: IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T) Number of Ports: 10 Communication Mode: Auto Negotiation Connector Type: RJ45 MAC Address: Printed on Top-Surface Label Polarity: Straight/Cross Automatic Detection |
| Combo Ports | LAN Ports: IEEE 802.3 (1000BASE-T) 2 Ports (Use Is Mutually Exclusive with SPF Ports) SFP Ports: SFP (Small Form-Factor Pluggable) 2 Ports (Use Is Mutually Exclusive with LAN Port) |
| Console Port | RJ45 (RS-232C), USB Mini-B (5-Pin) (USB2.0): 9600 Bit/s |
| PoE | Ports Available for PoE Power Supply: 8 PoE Standards: IEEE 802.3at Power Supply System: Alternative A Per Port: 30 W All Ports: 240 W |
| microSD Card Slot | Standard: SD/SDHC Number of Slots: 1 |
| Indicators | Power, microSD, LED Mode, LAN Port, SFP Port |
| Operating Environment | Ambient Temperature: 32 to 104°F / 0 to 40°C Ambient Humidity: 15 to 80%, Non-Condensing |
| Storage Environment | Ambient Temperature: -4 to 122°F / -20 to 50°C Ambient Humidity: 10 to 90%, Non-Condensing |
| Power Supply | Input Power: 100-240 VAC, 50/60 Hz |
| Maximum Power Consumption | 280 W |
| Dimensions | 8.7 x 11.6 x 1.7" / 220 x 294 x 42.4 mm |
| Weight | 5.1 lb / 2.3 kg |

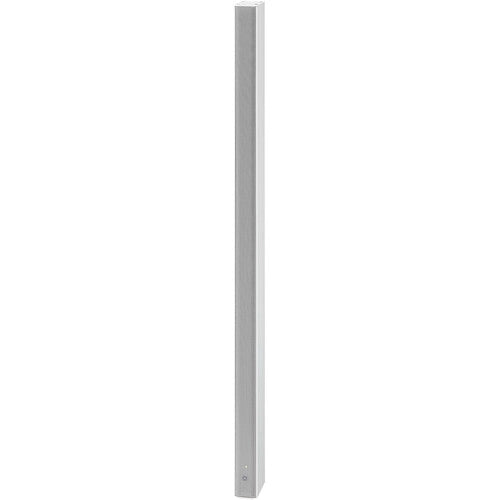

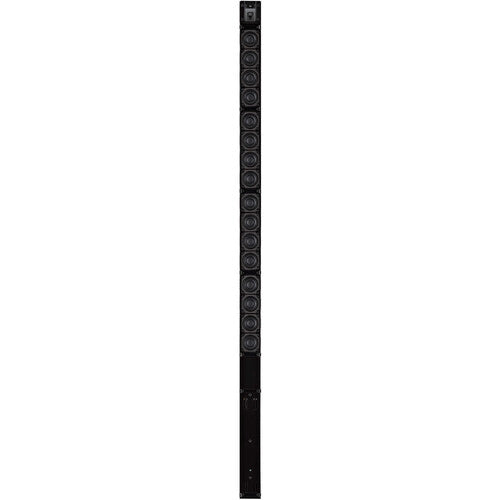

| Speaker Type | Full-Range, Powered Speaker, Bass Reflex |
| Frequency Range | 80 Hz to 20 kHz (-10 dB) |
| Nominal Coverage Angle | Horizontal: 170° Vertical: 25° (+12.5 to -12.5°) |
| Effective Coverage | Horizontal: 180° Vertical: 30° (+15 to -15°) |
| Components | LF-HF: 16 x 1.5" / 3.75 cm Cones |
| Maximum Output Level | 102 dB SPL with PoE+(IEEE 802.3at), at 3.3' / 1 m, On Axis |
| Power | Dynamic: 15 W with PoE+ (IEEE 802.3at), 6 W with PoE (IEEE 802.3af) Continuous: 15 W with PoE+ (IEEE 802.3at), 6 W with PoE (IEEE 802.3af) |
| I/O Connectors | 1 x RJ-45 (Dante) |
| Protection Circuits | Speaker Processing: Clip Limiting, Integral Power Protection Amplifier Protection: Overcurrent Protection, Over-Temperature Protection, Undervoltage Lock Out, DC Detection, Clock Detection Power Supply Protection: Overvoltage Protection, Undervoltage Lock Out |
| Cooling | Natural Convection |
| Power Requirements | PoE+(IEEE 802.3at), PoE(IEEE 802.3af) |
| Power Consumption | Idle: 3 W, 1/8 Pink Noise: 6 W with PoE+(IEEE 802.3at), 4.3 W with PoE(IEEE 802.3af) |
| Magnetic Shielding | No |
| Color | White |
| Dimensions | 2.1 x 44 x 4" / 54 x 1120 x 104 mm (Speaker Only) |
| Weight | 11 lb / 5 kg (Speaker Only) |
