Key Features
- <ul>\n <li>Audio Bandwidth: 50 - 20,000 Hz</li>\n <li>Transmission Range: Approximately 300' (91 m)</li>\n</ul>
$795.00
Technical Details
| HD Venue Base Station | |
| Audio Bandwidth | 50 - 20,000 Hz |
| Channels | 2-channels (system) 4-channels (maximum in one area) |
| Radio Frequency | North America: 1.92 to 1.93 GHz (UPCS North America) International: 1.88 to 1.90 GHz (DECT EU) |
| Radio Protocol | Digital (automatic channel selection) |
| Transmission Range | Approximately 300' (91 m) (Actual range depends on RF signal absorption, reflection & interference) |
| LED Indicator | Yes (channel indicator) |
| Diversity Antennae | Yes (SMA plug - 50 ohms) |
| Buttons | Yes (pairing push buttons) |
| Bracket | Yes (rack-mount bracket) |
| Configuration Switch | Configuration switches (DIP) x 8 |
| Power Connector | AC-IN (power input port) |
| USB Port | Yes (mini-USB serial interface for firmware updates only) |

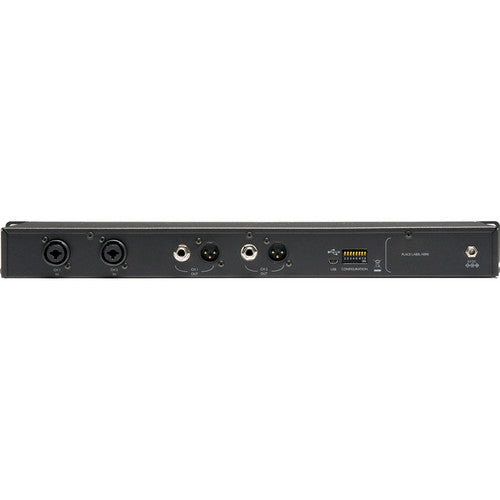

| Input Connectors | Female XLR and 1/4" (6.35 mm) balanced combo jacks x 2 |
| Output Connectors | Female 1/4" (6.35 mm) balanced jacks x 2 Male XLR balanced jacks x 2 |
| HD Charger Base | |
| USB Port | Yes (for firmware updates only) |
| Power Connector | DC-IN (power input port) |
| Charge Connector | Proprietary 4-pin microphone charge jacks x 2 |
| General | |
| Power Requirements | HD Venue Base Station: universal 100 - 240 V, 50/60 Hz inputs (5W) HD Charger Base Station: universal 100 - 240 V, 50/60 Hz inputs (5W) |
| Operating Temperature | 40 to 100°F (5 to 40°C) |
| Operating Humidity | 20 to 85% |
| Dimensions | HD Venue Base Station: 16.9 x 1.7 x 8.0" (43.0 x 4.4 x 20.3 cm) HD Charger Base Station: 4.6 x 1.0 x 3.1" (11.8 x 2.5 x 7.9 cm) |
| Weight | HD Venue Base Station: 2.0 lb (907.2 g) HD Charger Base Station: 5.2 oz (147.4 g) |
| Package Weight | 5 lb |
| Box Dimensions (LxWxH) | 21 x 12 x 4" |
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comOnce we have all the information requested above, an account and order will be created.
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.

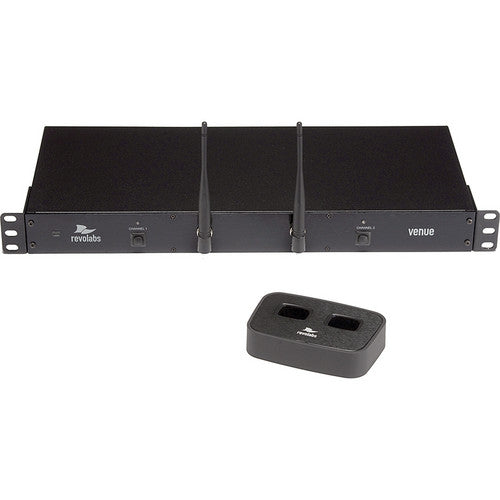

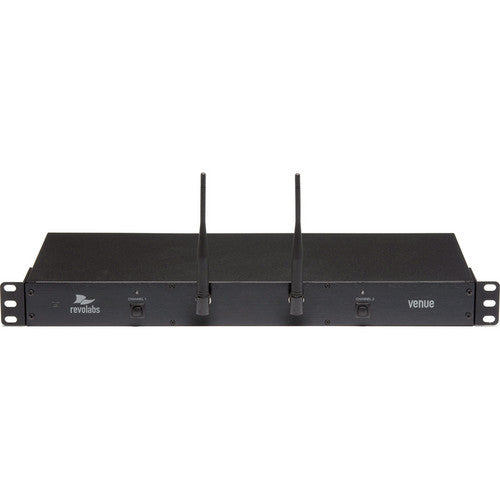

Revolabs 01-HDVENU-NM HD Venue 2-Channel Rack-Mount System without Microphones
Add to Cart for Lower Price
Call for Price
$795.00
