Product Summary





  • 2-way loudspeaker for surface-mount configurations in residential, professional, or commercial applications









  • Weather-resistant construction allows you to use the speaker indoors or outdoors









  • 4" woofer and 1" tweeter yield a frequency response of 115 Hz to 16 kHz



















  • Passive Design

  • Weather Resistant for Indoor/Outdoor Use

  • 4" Woofer, 1" Tweeter

  • 16W RMS Power Rating

  • For 70V/100V or 8-Ohm Power Amplifiers

  • 115 Hz to 16 kHz Frequency Response

  • High-Frequency Waveguide System

  • PolyGuard Tweeter Protection

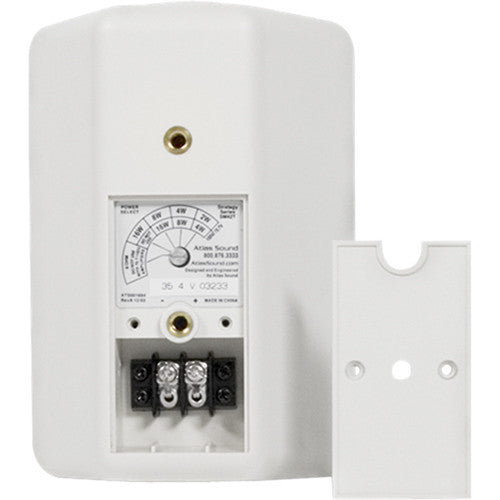

  • 2-Pole Barrier Strip Input

  • Includes C-Shaped Mounting Bracket

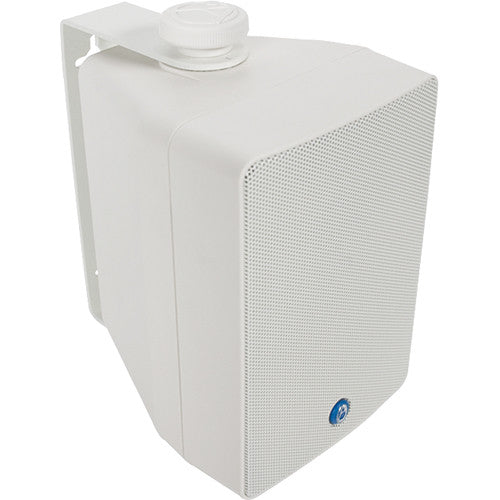

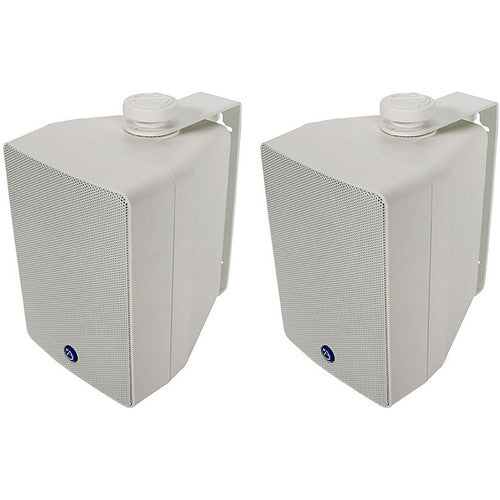

Experience the outstanding performance and versatility of the Atlas Sound SM42T-WH weather-resistant surface-mount loudspeakers, sold as a pair. These speakers are designed to provide consistent coverage and installation flexibility in a wide range of indoor and outdoor environments, including retail shops, restaurants, warehouses, and more.

Despite their compact size, the SM42T-WH speakers pack a punch. Each speaker features a highly efficient 4-inch polypropylene woofer and a 1-inch dome tweeter, delivering a frequency response range of 115 Hz to 16 kHz. This ensures excellent audio reproduction, allowing you to enjoy clear and balanced sound throughout your space.

Thanks to the TRX high-frequency waveguide system, these speakers provide a wide and even dispersion pattern of 90 by 90 degrees. This means that sound is evenly distributed, covering a larger area with consistent quality, regardless of your installation location.

The SM42T-WH loudspeakers are built to withstand the elements and demanding environments. Their weather-resistant design makes them suitable for both indoor and outdoor use, ensuring durability and reliable performance over time. The sleek white cabinet adds a touch of elegance to any setting while seamlessly integrating into your decor.

Upgrade your audio system with the Atlas Sound SM42T-WH weather-resistant surface-mount loudspeakers and enjoy exceptional sound quality, versatile installation options, and reliable performance. Whether you need to enhance the ambiance of your retail space or deliver clear audio in a restaurant or warehouse, these speakers are designed to meet your needs and exceed your expectations.

Atlas Sound SM42T-WH 4" 2-Way 16W Weather-Resistant Surface Speaker (Pair, White)

SKU: SM42TWH | UPC: 612079187218
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$247.98

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound SM42T-WH 4" 2-Way 16W Weather-Resistant Surface Speaker (Pair, White) $247.98
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">2-way loudspeaker for surface-mount configurations in residential, professional, or commercial applications</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Weather-resistant construction allows you to use the speaker indoors or outdoors</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">4" woofer and 1" tweeter yield a frequency response of 115 Hz to 16 kHz</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo"></div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo"></div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo"></div>\n</div>

Technical Details

Specifications

General
SPECIFICATIONS
Power Taps 2, 4, 8, & 16-Watt and 8Ω
Speaker Type Surface Mount
Sensitivity 88dB
Frequency Response 115Hz - 16kHz
Height 7" (17.78 cm)
Depth 5 15/16" (15.03 cm)
Width 5" (12.7 cm)
Shipping Weight 5.00 lbs (2.27 kgs)
