Key Features
- <ul>\n <li>1/2.8-Type Exmor CMOS Sensor</li>\n <li>20x Optical Zoom Lens</li>\n <li>RC4-SHD Kit</li>\n</ul>
1
/
2
1
2
Product Summary
- 1/2.8-Type Exmor CMOS Sensor
- 20x Optical Zoom Lens

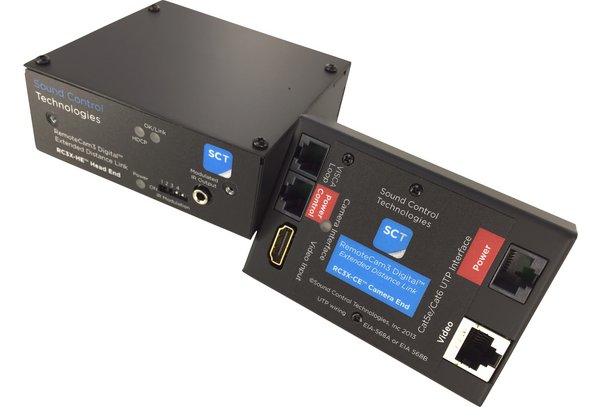

- RC4-SHD Kit

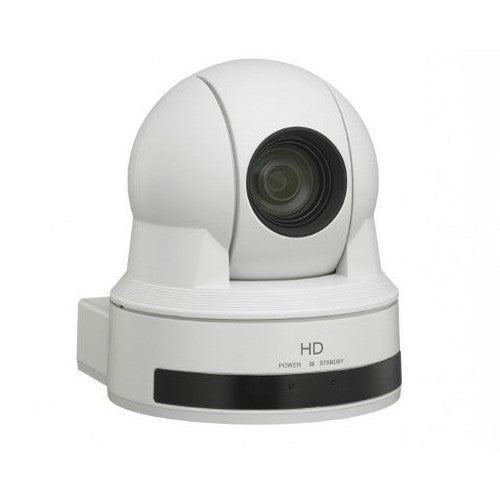

EZ-2-Connect PTZ Camera Solution featuring EVI-H100V/W (white) PTZ Camera with RC4-SHD Kit. The Sony EVI-H100VW PTZ Camera is a high-quality PTZ camera that couples a 1/2.8-type Exmor CMOS sensor with a 20x optical zoom lens to provide excellent high definition image quality for various remote viewing applications such as video conferencing, training and distance learning. The camera can be mounted right-side up or upside-down. If upside-down, an E-flip function automatically flips captured images so they are displayed correctly on a connected monitor.
Sony EVIH100VW/PAC4 PTZ Camera Package with RC4-SHD Kit
Authorized Dealer
Authorized
Sony
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$10,000.00
BACK 2 SCHOOL SALE | additional discount in cart
Sony EVIH100VW/PAC4 PTZ Camera Package with RC4-SHD Kit
$10,000.00
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
- 1/2.8-Type Exmor CMOS Sensor
- 20x Optical Zoom Lens
- RC4-SHD Kit
EZ-2-Connect PTZ Camera Solution featuring EVI-H100V/W (white) PTZ Camera with RC4-SHD Kit. The Sony EVI-H100VW PTZ Camera is a high-quality PTZ camera that couples a 1/2.8-type Exmor CMOS sensor with a 20x optical zoom lens to provide excellent high definition image quality for various remote viewing applications such as video conferencing, training and distance learning. The camera can be mounted right-side up or upside-down. If upside-down, an E-flip function automatically flips captured images so they are displayed correctly on a connected monitor.
Technical Details
Specifications
Sensor
1 x 2.1MP 1/2.8" Exmor CMOS
Signal System
1080/59.94i 1080/50i (switchable)
Signal To Noise Ratio
HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 1080PsF29.97), 1080i/50 (frame out 1080PsF25), 720p/59.94, 720p/50, 720p/29.97
Gain
Auto/Manual/Max. AE Gain Limit (-3 to 28 dB, 2 dB steps)
Shutter Speed Range
1 - 1/10,000 second
Exposure Control
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE
White Balance
Auto, Indoor, Outdoor, One-Push, Manual
Resolution
HD 1080
Output
DVI-I, Digital (RGB) and analog Component
Camera Control
Interface: RS-232C/RS-422 Protocol: VISCA
Focal Length
f=4.7 to 94 mm F1.6 to F3.5
Minimum Object Distance
10 - 800 mm
Pan Angle
+/-170°
Tilt Angle
+90°/-20°
Pan Speed
100°/sec
Tilt Speed
190°/sec
Presets
6
Operating Temperature
32 to 104°F (0 to 40°C)
Power
DC 12V
Minimum Illumination
1.4 Lux (50 IRE, f/1.6, 30 fps)
Optical Zoom
20x
Complete Your Solution
Mounts & Installation
Controllers
Connectivity
Purchase Orders
We accept Purchase Orders from all Schools, Universities, Major Government Agencies and Not-for-profit Organizations within the United States and Canada Only. All Purchase Orders are subject to approval.
Simply email, fax or mail your purchase order and please ensure your P/O contains the following information:
- Contact name, email address & telephone number. Note: An email address is required to receive order/shipping confirmation.
- Billing name & address.
- Shipping address.
- Tax ID#. For tax exempt orders, please see the Tax Exempt information below.
- Purchase Order Number.
- Date needed. Please note: Up to 3–5 days are needed to process requests. This does not include delivery time.
- Authorized signature. Your purchase order can only be accepted when accompanied by the signature of the officer authorizing the purchase and when submitted on your organization's official purchase order form or letterhead.
- Purchase orders must be in excess of $75 excluding shipping. All prices are in USD.
- Sales tax is charged only on orders shipping to the state of Florida.
Submit Your Purchase Order
Please email completed purchase orders to Sales@OfficeWonderland.com .
You can also fax it to: (786) 916-5963
Or mail it to:
OfficeWonderland.comAttn: Purchase Orders
20400 NE 16th PL
North Miami Beach, FL 33179
Once we have all the information requested above, an account and order will be created.
Please Note
- Please allow 3–5 days for us to process requests.
- Confirmation emails are sent when the order is placed and another email is sent when the order ships.
- Please make all checks payable to OfficeWonderland Ltd. at the address referenced above.
- Payments on PO orders are due within 30 days.
Terms
We operate with a Net 30 Day payment arrangement for approved purchase orders. Payment is expected to be made in full not more than 30 days after your order is processed.
In the Box
- <ul> <li>Power Supply</li> <li>Null Modem DB89 Serial Head-End Cable</li> <li>3' HDMI Camera Head-End Cable</li> <li>RJ11 to 8 Pin Mini Din VISCA out cable</li> <li>RJ45 to Power/Control IR</li> <li>Camera and Codec/Head-End Interface Modules</li> <li>VISCA loop 8 pin Mini Din to 9 Pin Head-End</li> <li>1' DVI to HDMI Camera Cable</li></ul>
