Marshall CV503 Miniature Full-HD Camera (3G/HDSDI)
$399.00
Unit price
/
Unavailable
Free Shipping At Checkout!
Marshall CV503 Miniature Full-HD Camera (3G/HDSDI) is backordered and will ship as soon as it is back in stock.
Need Help? Call Us 800-211-2718
Couldn't load pickup availability
Product Highlights:
- 1/2.8" 2.5MP CMOS Sensor
- M12 Mount with Removable 3.6mm Lens
- Progressive & Interlaced Frame Rates

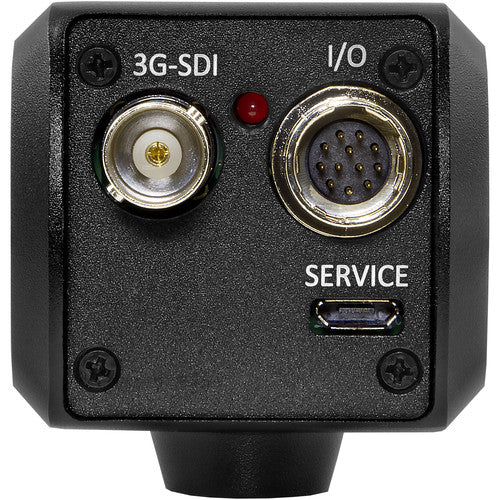

- 3G/HD-SDI Video Output
Click above to submit a purchase order
DUNS #074303253
IRS W-9 form
DUNS #074303253
IRS W-9 form
Included In The Box:
- Camera Breakout Cable
- 3.6mm Lens in M12 Mount
- 12 VDC Power Supply
- 1/2.8" 2.5MP CMOS Sensor
- M12 Mount with Removable 3.6mm Lens
- Progressive & Interlaced Frame Rates
- 3G/HD-SDI Video Output
Image Control
- Lens Shading: Corrects inconsistent brightness level in the image
- Contrast: Adjusts the image contrast level
- Brightness: Adjusts the image brightness level
- Saturation: Adjusts the image saturation level
- Hue: Adjusts the image hue level
- Edge Enhance: Adjusts the image sharpness level
- Auto Saturate: Decreases saturation automatically when noise scene is detected
- Auto Edge: Adjusts line sharpness level automatically
- Black / White Level: Adjusts the image black level value
- Gamma Correct: Adjusts the image output gamma level
- DNR: Reduces video noise at low ambient light. Select the DNR level from Off, Low, Middle, and High using the Left or Right button
AE Control
- Auto: Adjusts the exposure level automatically. Detailed fine tuning options are available under this menu
- Shut Fix: Provides more detailed shutter speed options. All other controls are tuned for the selected shutter speed
- AGC Fix: Provides more detailed gain option. All other controls are tuned for the selected gain value.
- Manual: Adjusts the exposure level manually
- Shutter: Speed can be set at auto or manual (1/30~1/10,000)
- Iris Speed: Electronic iris speed can be controlled, for DC iris lens only (0~5)
- AGC: Electronic iris speed can be controlled, for DC iris lens only (0~5)
- AGC Max: Used to set maximum gain value to control the video noise caused by Auto Gain Control (Off, Low, Middle, High, DMIN, DMID, DMAX)
- Sens Up: Controls the digital slow shutter to allow extra light into the camera and adjust the picture quality (Off, x2~x10)
- AE Bright: Select this to adjust auto exposure brightness levels (0~10)
- Lens Mode: Lens setting will be optimized for selected environment, for DC iris lens only
- FLK Control: Provides a proper image sensor frequency to match the power frequency in order to minimize video flicker
Digital Tools
- DZoom: Digitally zoom the video by the desired ratio
- Defog: This feature will help increase visibility in extreme weather conditions, such as fog, rain, or in a very strong luminous intensity
- DIS: This feature enables digital image stabilization
- Backlight: Adjusts backlight compensation by choosing either BLC HLM from this menu
- Binning: Enable or disable pixel binning
- Defect Pixel: Advanced defective pixel correction menu
- Disp Function: Display effects such as freeze mirror, rotation, and style can be applied from this menu
- WDR: This feature enables user to view both object and background more clearly when background is too bright
- Flicker Detect: Adjust the image sensor frequency to match the power frequency
- Privacy: Mask an area you want to hide on the screen by applying the privacy zones

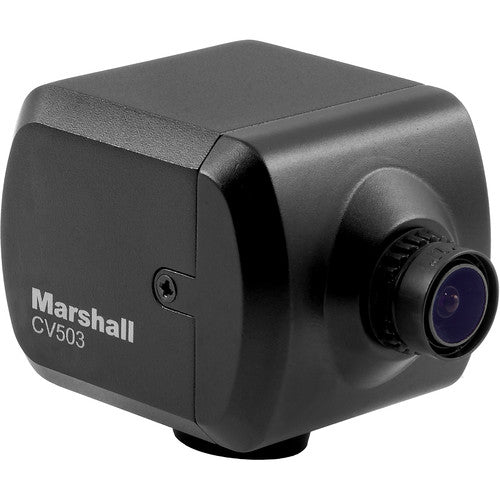

The compact and versatile Marshall Electronics CV503 Mini HD Camera captures at progressive frame rates up to 60p, as well as interlaced, making it suitable for use in live broadcast productions, courtrooms, corporate videos, government assemblies, sportscasts, newscasts, reality television, concerts, and houses of worship. It features a 2.5MP CMOS sensor, with 1920 x 1080 resolution and outputs 3G/HD-SDI. It features an M12 lens mount and comes with a 3.6mm lens. Image tools include Digital Noise Reduction, Auto White Balance, and digital zoom.
Features specific to surveillance include motion detection and privacy mask, allowing you to have the camera trigger if it detects motion in a specific area, as well as being able to mask off an area of the image from surveillance. Audio is handled by the breakout cable that lets you connect a mic- or line-level input device. The breakout cable also features an integrated joystick control for accessing and setting menu items via the on-screen menu display. In addition, you can also control the camera via RS-485 control protocol.
Lens
A removable M12 mounted 3.6mm lens with a 72° angle of view is included with the camera. You can swap out the lens for almost any other Marshall M12 mount lens
-
Sensor
-
Resolution
-
Output
-
Audio Input
-
Camera Control
-
Focal Length
-
Power
-
Optical Zoom
