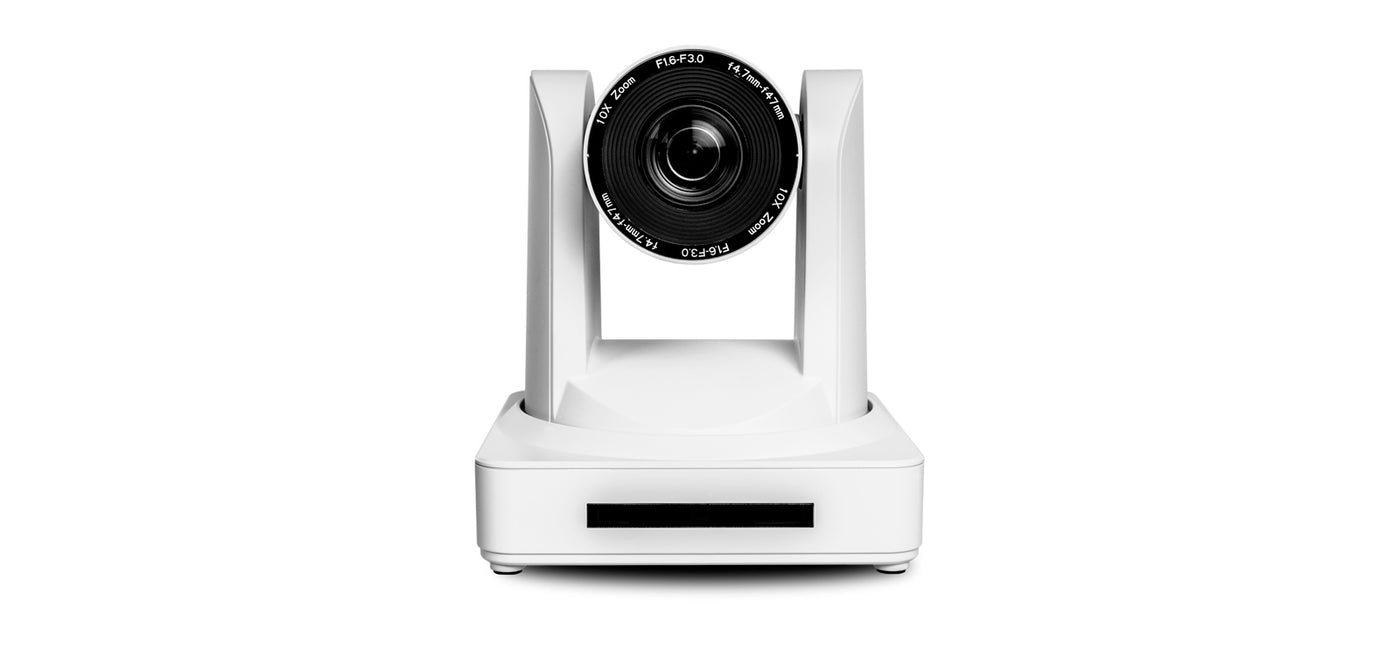

Atlona AT-HDVS-CAM-HDBT-WH PTZ Camera with HDBaseT Output (White)

SKU: ATHDVSCAMHDBTWH  |  UPC: 846352005351
$949.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

Request a Quote
  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n 1080P Resolution\n 60.9° horizontal field of view\n 10x optical zoom\n HDBaseT output\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote
Learn More About Purchase Orders

  • 1080P Resolution

  • 60.9° horizontal field of view

  • 10x optical zoom

  • HDBaseT output


FEATURES

  • Designed for video conferencing and other applications such as lecture capture and distance education

  • HDBaseT output for extending video, power, and camera RS-232 control up to 330 feet (100 meters) @ 1080p with CAT5e/6 cable

  • Remote powering over HDBaseT – local powering available with included power supply

  • Up to 255 camera presets available, 10 accessible from IR remote

  • Supports VISCA, Pelco-D, and Pelco-P camera control protocols

  • Fast and accurate auto focus, plus auto white balance and auto exposure modes

  • Fast and quiet pan and tilt mechanism

  • Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma

  • Easy, GUI-based configuration using integrated web server

  • TCP/IP, RS-232, and IR control – convenient handheld IR remote control included

  • Delivers HD video resolutions including 1080p @ 60 Hz

  • High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor

  • Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view

  • Camera can be mounted on a wall, or inverted for ceiling installation with the optional AT-HDVS-CAM-CMNT ceiling mount kit

  • Includes installation guide, wall mounting bracket, IR remote control, VISCA to RS-232 DB-9 adapter, lens cap, and external universal power supply

  • Available in black or white

  • Limited product warranty: 10 years for electronic circuit and optics; 3 years for PTZ motor


The Atlona AT-HDVS-CAM-HDBT is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance education. It features an HDBaseT output for extending video, power, and camera control over distances up to 330 feet (100 meters). The HDVS-CAM-HDBT is ideal for remotely interfacing into HDBaseT equipped switchers and extenders, for use with a video conferencing codec, lecture capture appliance, or PC equipped for video capture. Camera control over HDBaseT or TCP/IP facilitates remote integration into AV control systems. The HDVS-CAM-HDBT delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 60 Hz, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. This PTZ camera is ideal for large meeting spaces, classrooms, training rooms, and many other environments. The HDVS-CAM-HDBT is available in black or white.



Applications

  • Meeting spaces and conference rooms – The HDVS-CAM-HDBT enables simple, clean connectivity over category network cable, from a wall or ceiling to AV equipment in a credenza or below the meeting table.

  • Classrooms and other instructional spaces – The HDVS-CAM-HDBT is ideal for distance learning and collaboration, as well as recording lectures.

  • Legacy video conferencing systems – This camera can provide an effective upgrade to existing codecs, by delivering high quality imaging performance and ease of installation over HDBaseT.

Is This Right For You?


Recommendation


16187
Atlona

Atlona AT-HDVS-CAM-HDBT-WH PTZ Camera with HDBaseT Output (White)

$949.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

1/2.8” HD CMOS

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

> 55 dB

N/A

Gain

Automatic Gain Contol ON

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

auto exposure control

N/A

White Balance

auto white balance

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

HDBaseT output

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

RS-232 control up to 330 feet (100 meters) @ 1080p with CAT5e/6 cable,s VISCA, Pelco-D, and Pelco-P camera control protocols

N/A

Focal Length

f = 4.7 ~ 47 mm

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

±170°

N/A

Tilt Angle

-30° ~ ±90°

N/A

Pan Speed

0.1 - 180° / sec

N/A

Tilt Speed

0.1 - 80° / sec

N/A

Presets

255 camera presets available, 10 accessible from IR remote

N/A

Operating Temperature

14 to 122

N/A

Power

Input: 110 - 220 V AC, 50/60 Hz Output: 12 V DC, 1 A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

0.5 lm, F1.8

N/A

Optical Zoom

10x

N/A

TAA Compliant

N/A
