Product Summary




























































































Music Input 3.5mm Stereo Summed Front Panel
Impedance 10kΩ
Input Level 1V (0dBV)
Input Type Unbalanced, Qty. 1
Music Input Bluetooth Stereo Front Panel
Impedance 10kΩ
Input Level 1V (0dBV)
Input Type Balanced Mic/Line Selectable, Qty. 1
Connector Type XLR Female Socket
Impedance 1.2kΩ Balanced, 600Ω Unbalanced

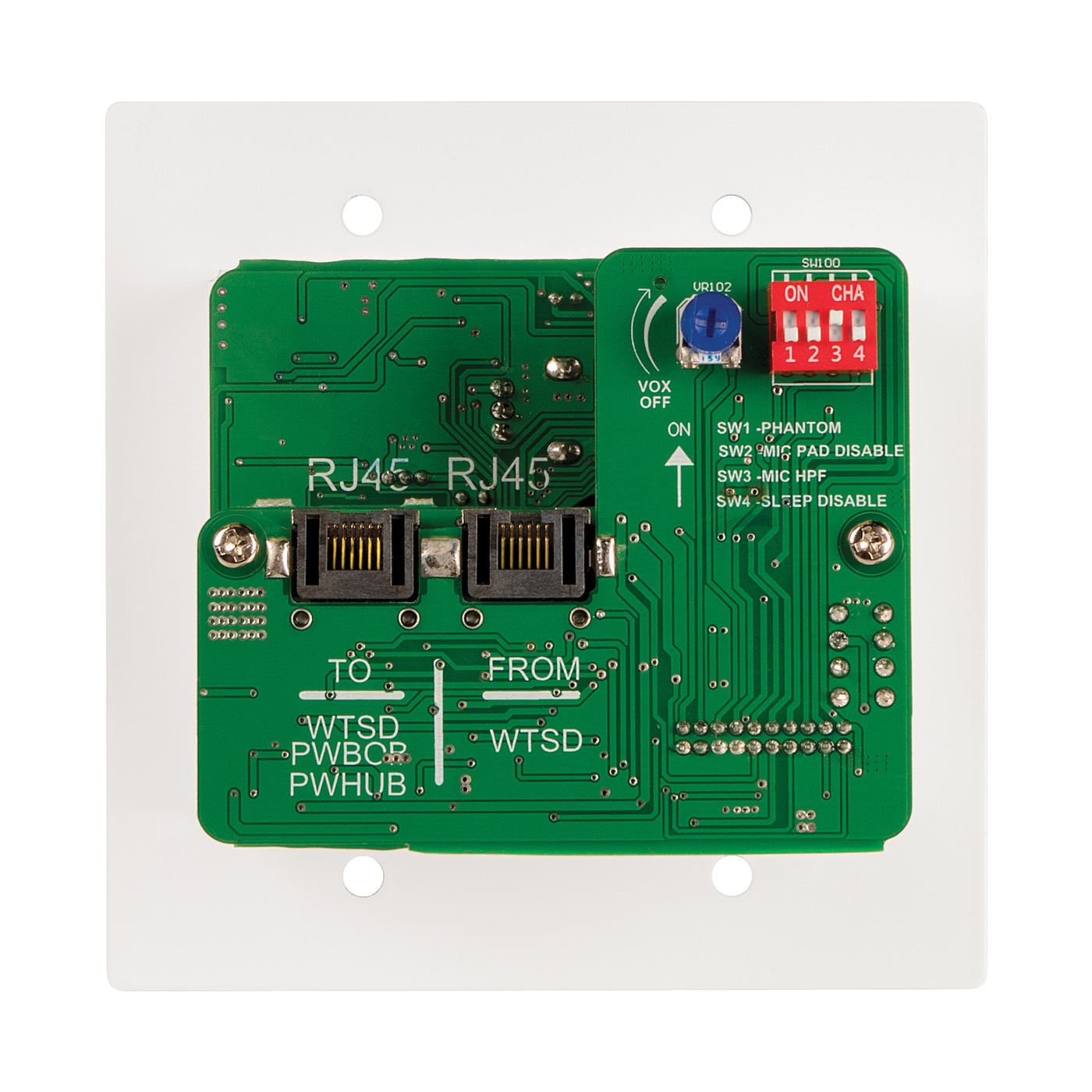

Phantom Power 24VDC Defeatable Rear panel DP SW, ON Indicator RED Front Panel
Low Cut Filter 125Hz/12dB Defeatable Rear Panel DP SW
Line Input Level 500mV (-6dBV) Balanced
Output Type WTSD Bus
Connector Type RJ45
Frequency Response 20Hz -20KHz +/- 1dB
THD .06% & 1KHz
Height 4.37" (111mm)
Width 4.34" (110mm)
Depth 2.5" (62.6mm)
Weight 0.53 lbs (.24kg)
Shipping Weight 1.3 lbs. (.61kg)


  • Indoor/Outdoor Use

  • Power Supply & WTSD-PWBOB interface included

  • XLR Balanced Mic or Line Input with Individual Level Controls

  • 3.5mm Stereo Actively Summed Input with Level Control

  • Commercial Grade Bluetooth Input with Level Control

  • The Bluetooth Discovery ID Name can be Customized

  • Fits Most 2-Gang Boxes

  • Uses Industry Standard Cat5 or Cat6 Cable

  • High Gain Balanced Line Output for Applications of 400ft.

  • Linkable with other WTSD Mixers on the same BUSS

  • WTSD-COVER Water Resistant Stainless Steel Locking Cover (Optional)

  • Remote Trigger Output for Remote Amplifier Turn On


Introducing the Atlas Sound Indoor/Outdoor Analog Wall 3x1 Mic/Line/BT/AUX Mixer W/Optional Dante® Audio Network Interface WTSD-MIX31K, a versatile 3x1 Mic/line/Aux/Bluetooth Analog Mixer designed to deliver exceptional audio performance and flexibility. This mixer offers a balanced microphone/line input, an auxiliary 3.5mm input, and Bluetooth connectivity, all summed to a balanced line output.

Equipped with commercial-grade Bluetooth technology, the WTSD-MIX31K ensures ultra-low noise levels, long-range connectivity, and convenient features such as no auto-connect and a quick disconnect bump feature. Installers can customize the Bluetooth Discovery ID name using the dedicated renaming app.

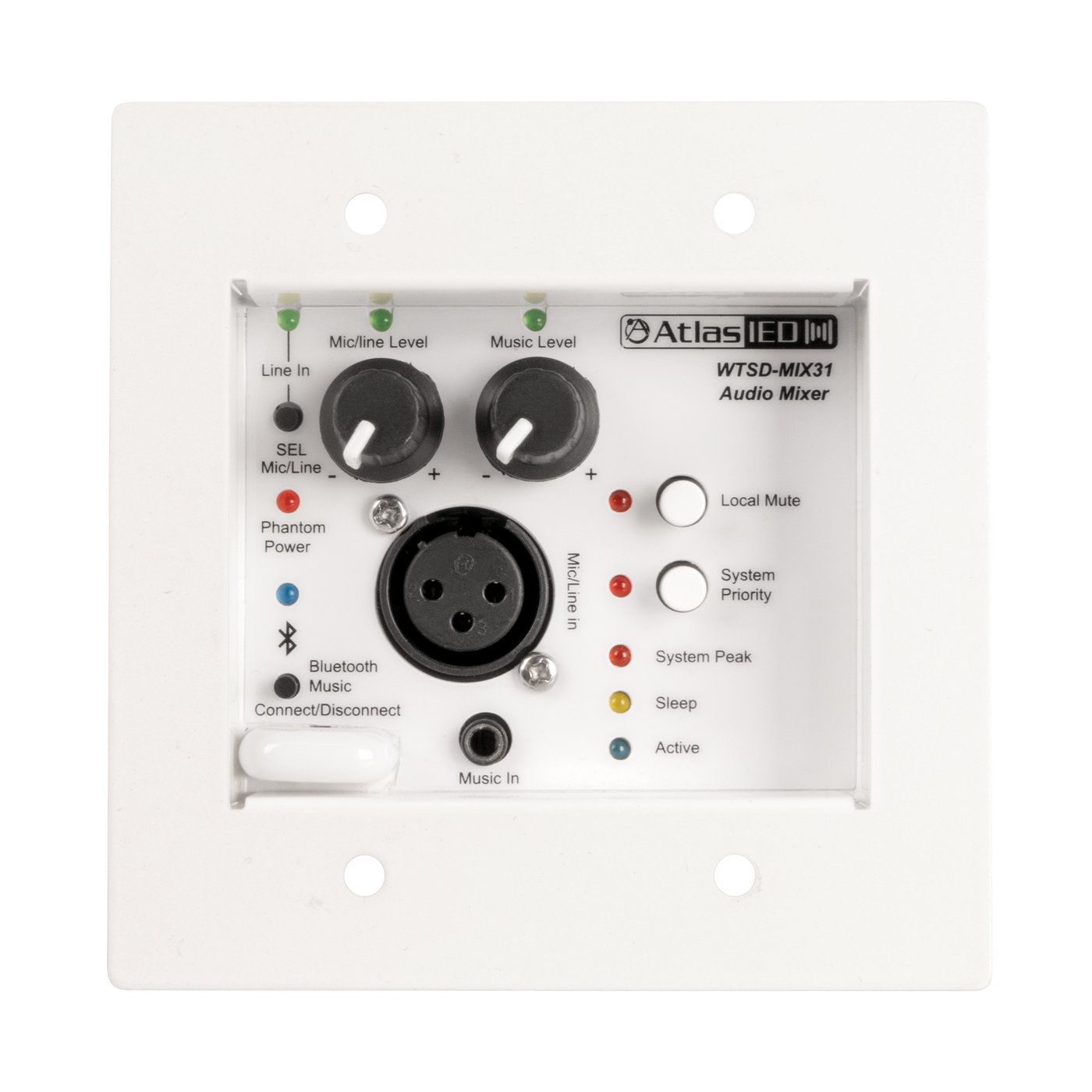

Switching between mic or line level for the XLR input is easily done via a front panel switch, accessible through a pinhole. The high-gain mic inputs feature user-enabled phantom power for condenser microphones, along with a 125Hz low-cut filter to eliminate unwanted low-frequency interferences. A local mute button allows for muting the output to the bus, while the system priority button can mute building-wide background music (BGM) systems, isolating the room as needed. Additionally, the adjustable VOX (Voice-Activated Switching) feature mutes the AUX input background audio when announcements are present, ensuring clear and uninterrupted communication.

The AUX input, provided through a stereo 3.5mm jack, is electronically summed to achieve optimal audio performance. Separate level controls for each input allow precise control over the audio mix, enabling the desired balance.

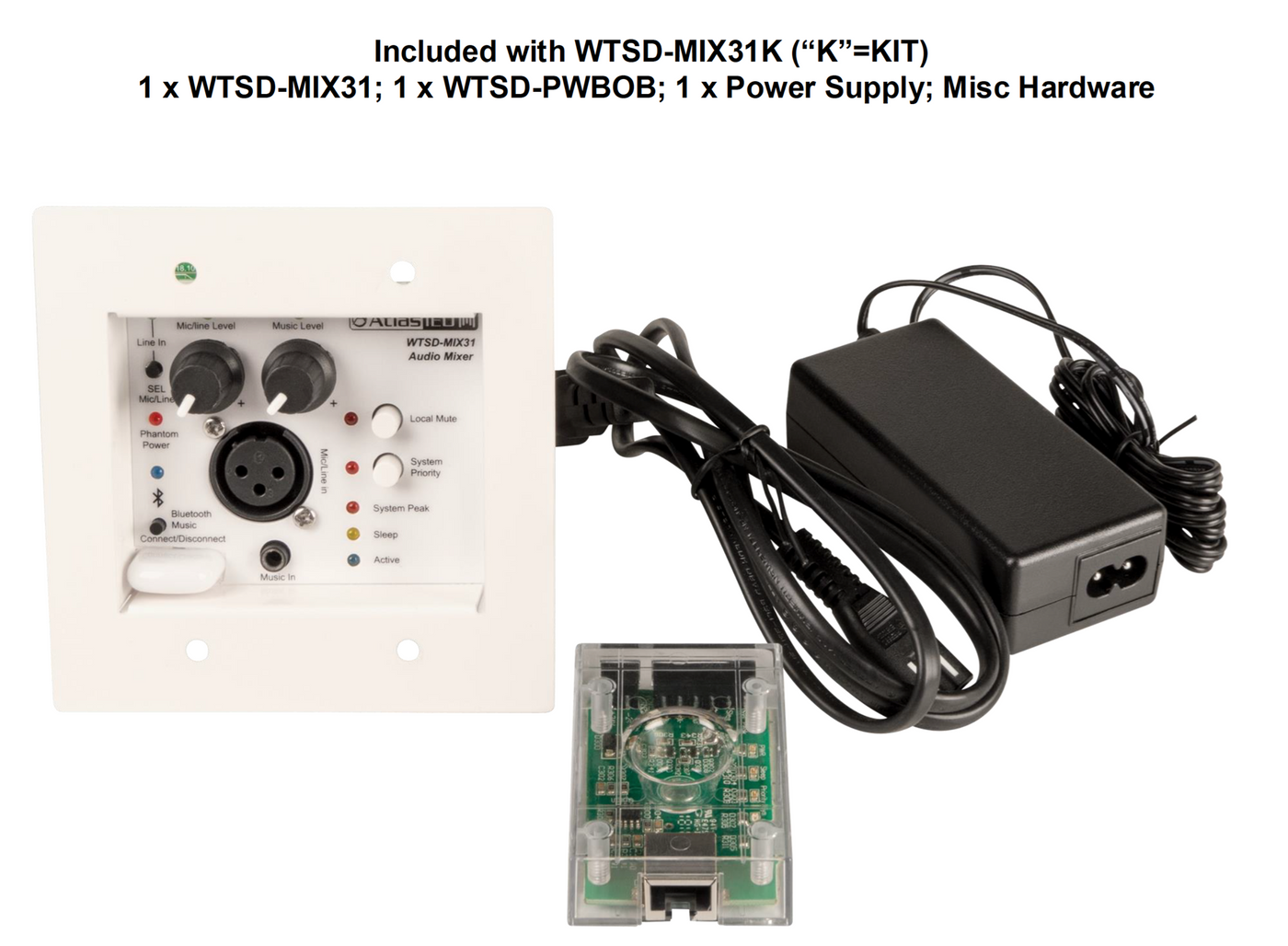

The WTSD-PWBOB is included with each unit, offering a balanced audio output with signal, mute, system priority, and power LEDs. Additionally, it provides a 12V DC logic output for remote system muting or power sequencing.

For enhanced versatility, the WTSD-MIX31K can be converted into a Dante® Digital Network audio mixer by integrating it with the optional AtlasIED TSD-DAC2i converter. This enables seamless integration into Dante® networked audio systems, expanding the mixer's capabilities and compatibility.

Experience exceptional audio quality, flexible control, and seamless connectivity with the WTSD-MIX31K Analog Mixer. Whether for professional installations, venues, or broadcasting applications, this mixer delivers reliable performance and comprehensive features to meet your audio needs.

Atlas Sound Indoor/Outdoor Analog Wall 3x1 Mic/Line/BT/AUX Mixer W/Optional Dante® Audio Network Interface WTSD-MIX31K
