Product Summary

Rack Units2Height6.74" (171mm) Width 23.69" (602mm) Depth 23.67" (601mm) Usable Depth 18.21" (463mm) Max Shelf Load 20 lbs (9.09 kg) per RUMax Gross Weight 68.5 lbs (31.14 kg) Weight28.5 lbs (12.95 kg) Shipping Weight TBD


  • Integrated AC power pack with 5 AC electrical outlets

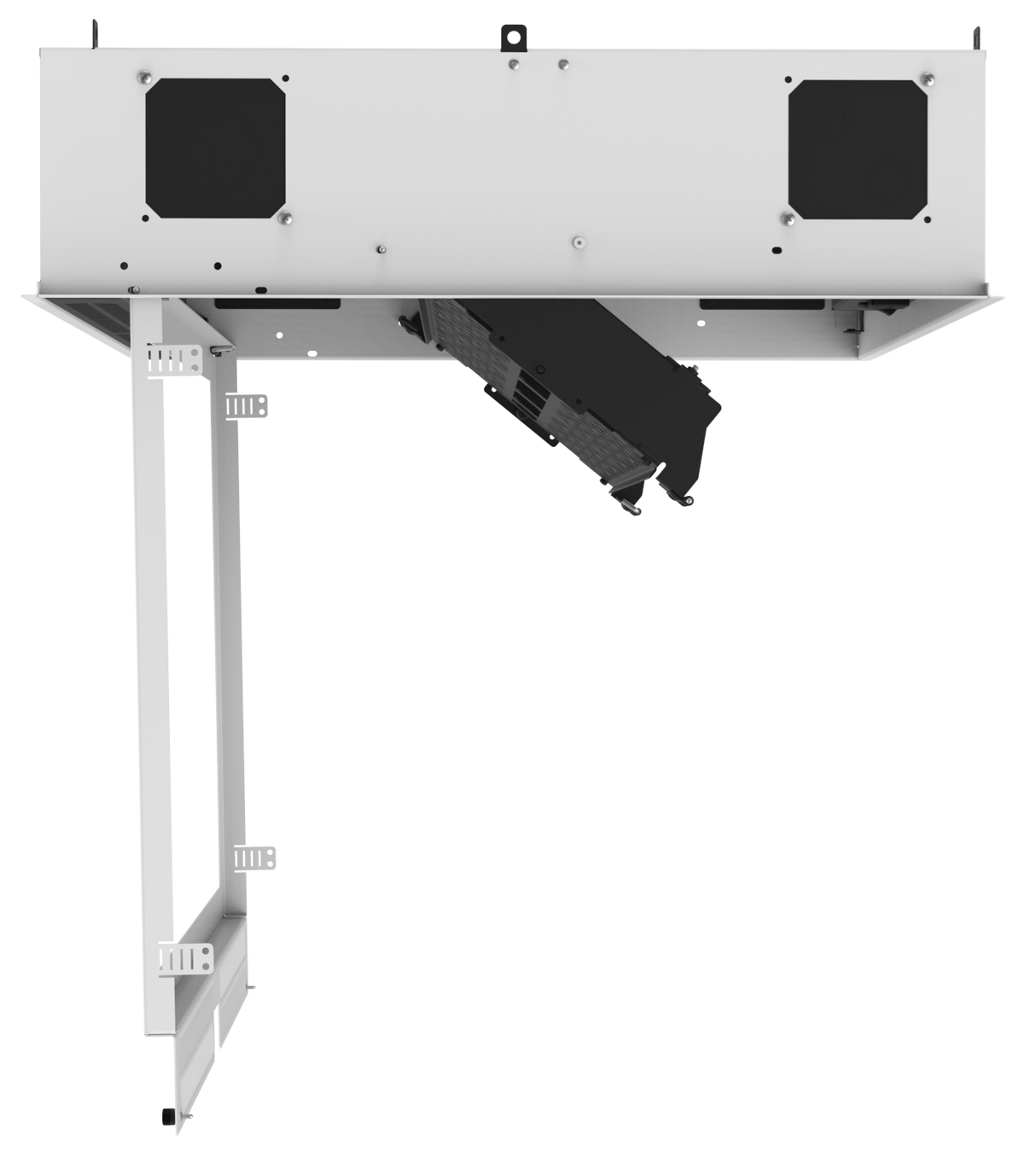

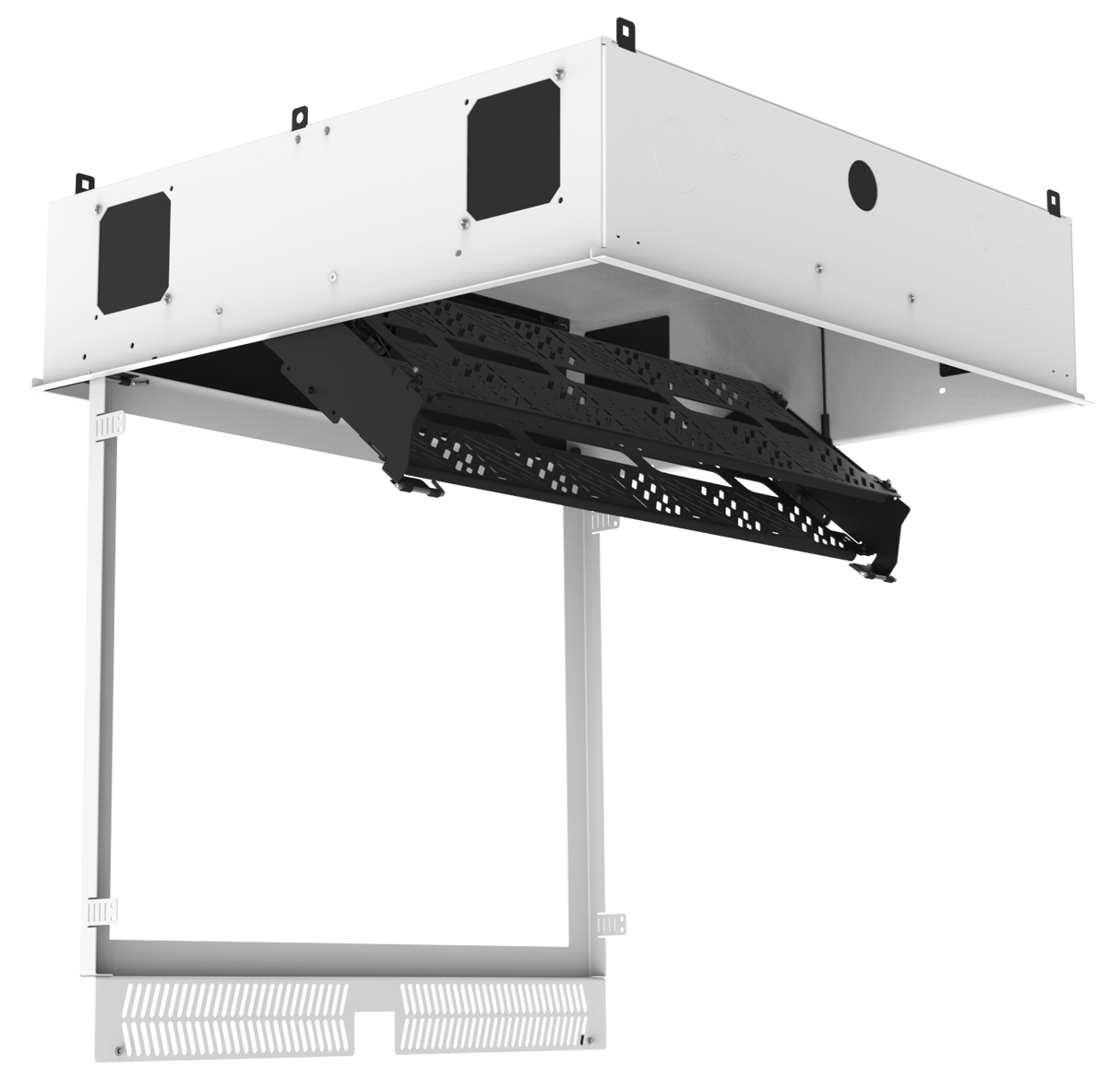

  • AmbiTILT™ shelf loading mechanism - Easily load and service equipment

  • UL Plenum rated for installation into standard ceiling-tile grids

  • Manufactured in Texas USA

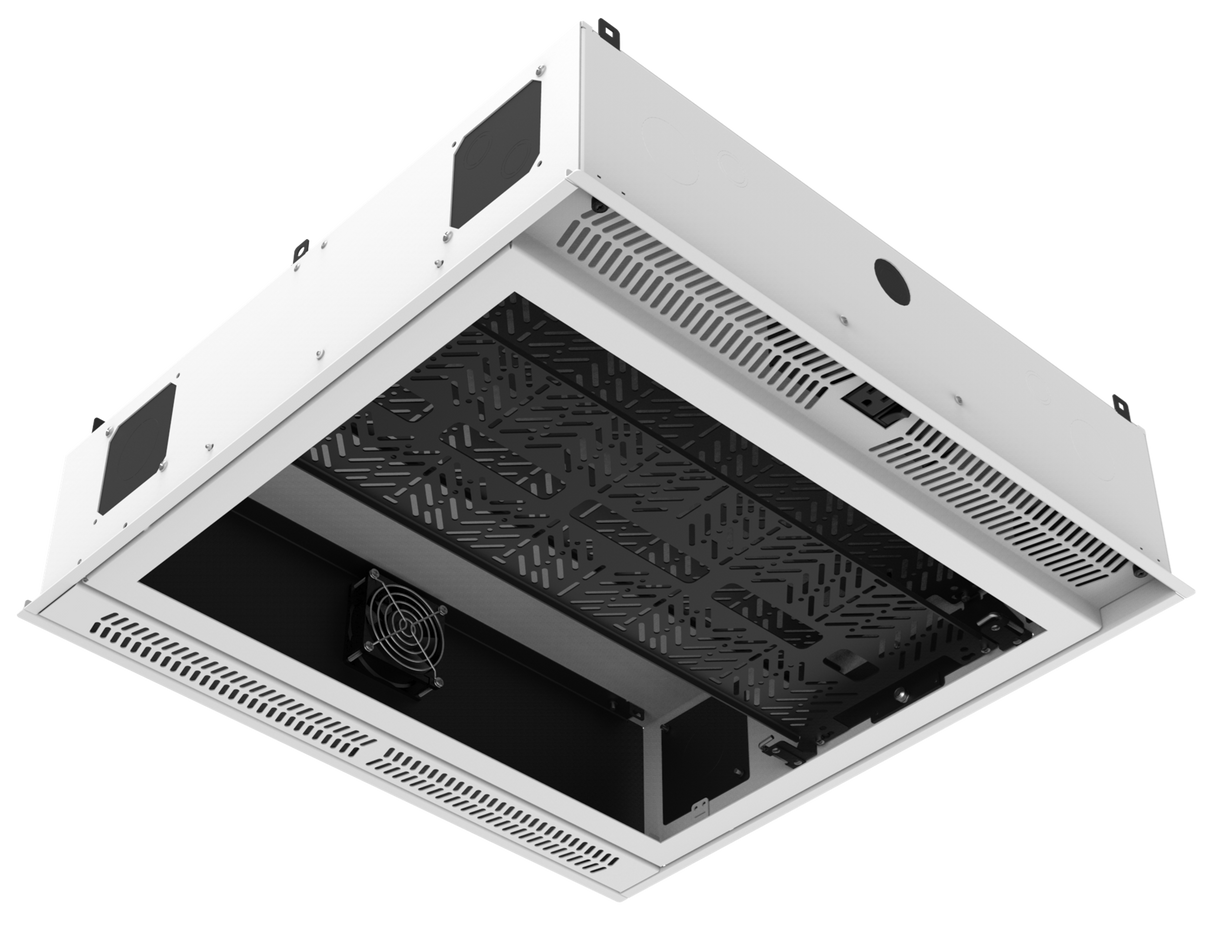

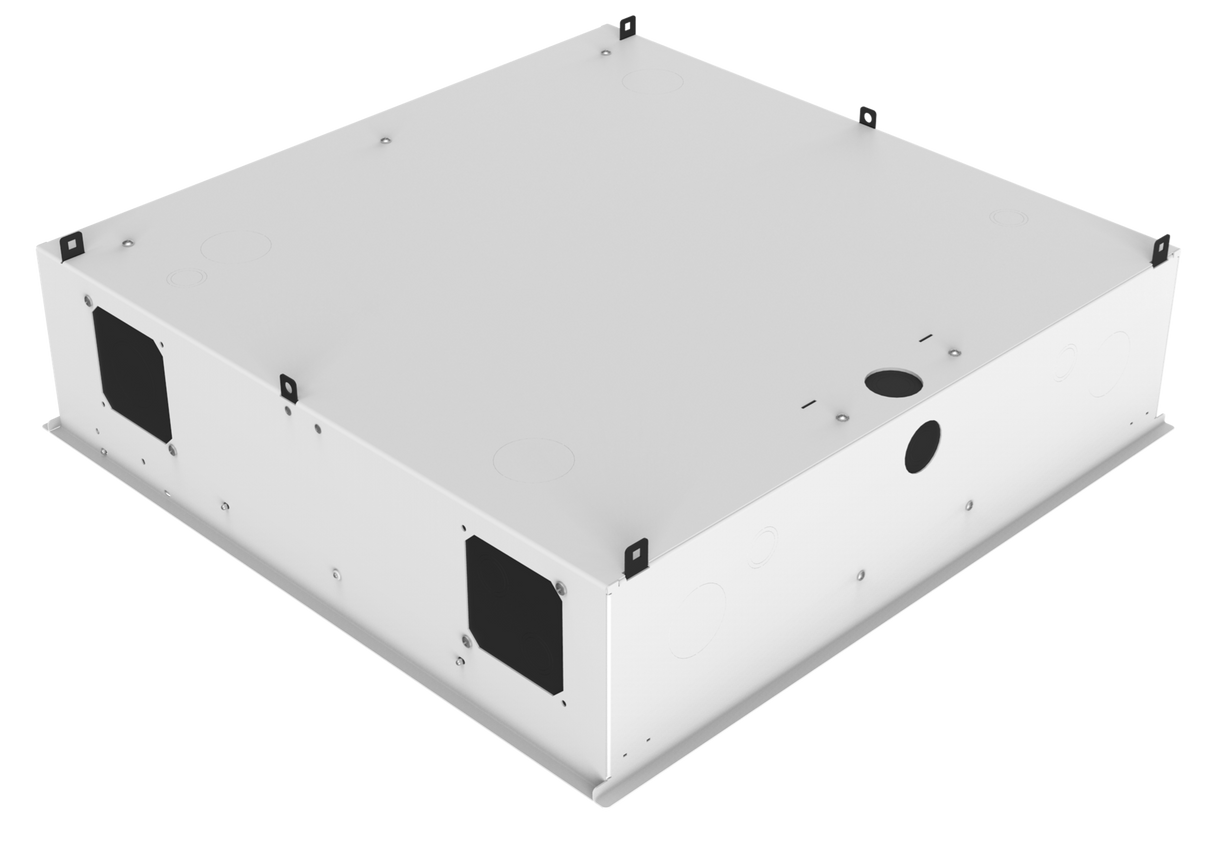

The Atlas Sound 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack - Without Projector Pole Adapter CR222-NR allows electronic equipment to be conveniently installed out of sight, in the ceiling plenum. The CR Series provides a space-saving solution while also being aesthetically discrete, blending in with common drop-ceiling tile designs. They permit equipment to be securely mounted above the ceiling in a sealed UL plenum-rated cabinet with an easy access door. The door assembly has an open frame design so the installer can place a ceiling tile into the frame and better conceal the entire ceiling rack. The ceiling tile cut-out is safely held in place by retainer tabs, locking it to the frame. To open the door, two retention thumb screws can be removed, and the door has attached safety cables to protect against injury.

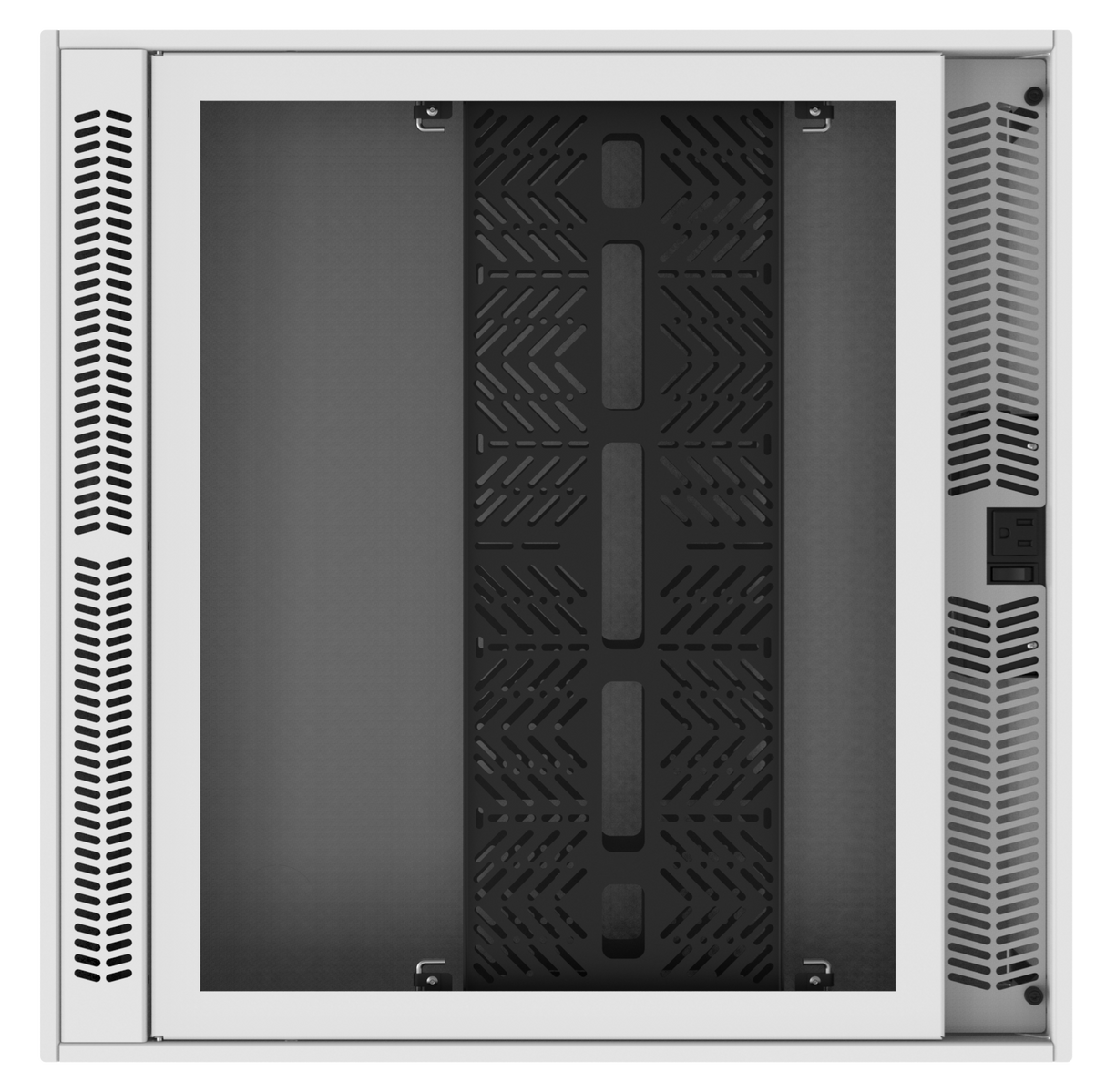

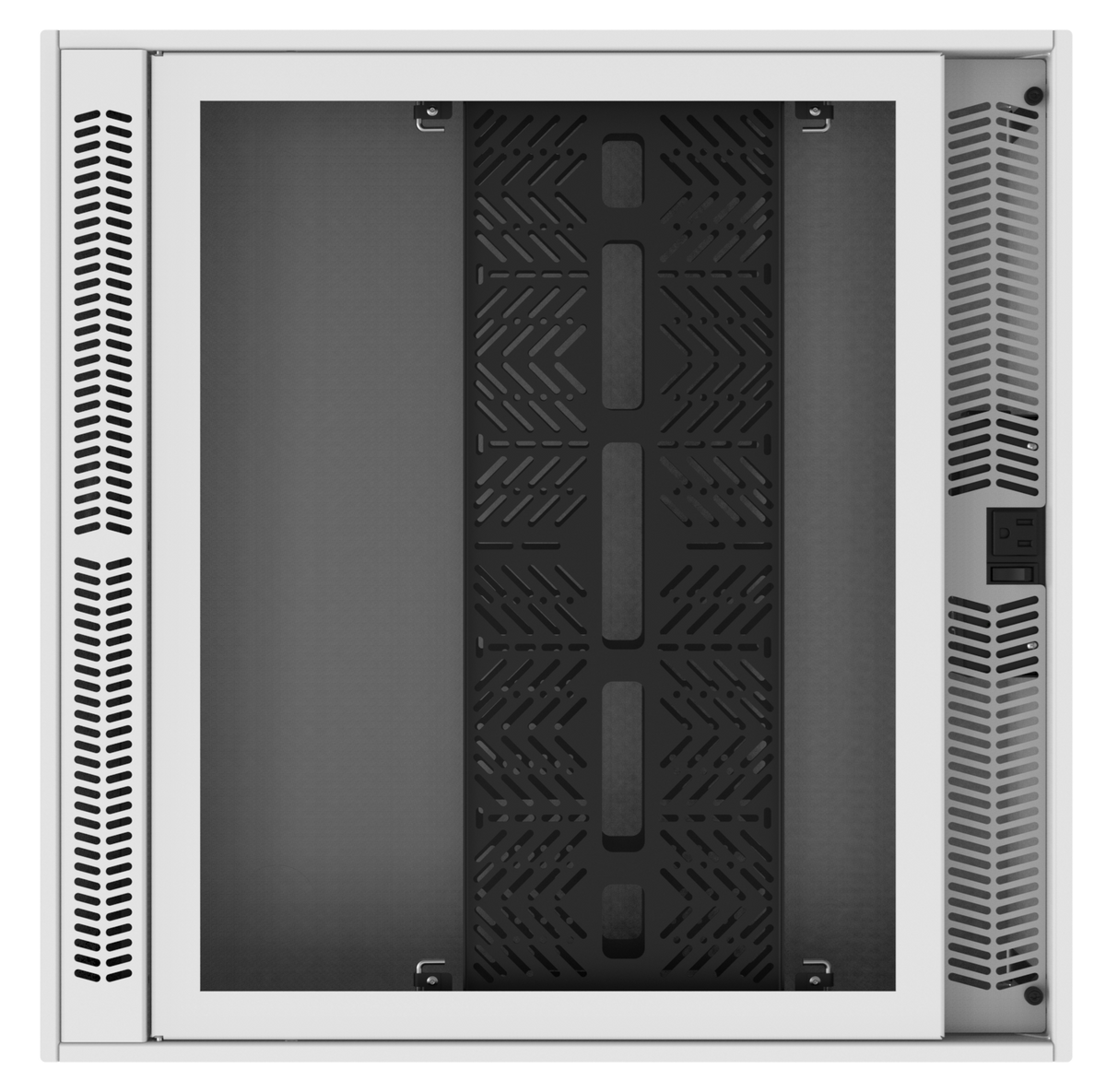

The CR222-NR provides 2RU (rack units) with a 19" standard-width. The enclosures are 2' x 2' to fit a standard reflected ceiling tile grid. The shelf system has universal mounting holes to easily bolt or tie down electronic devices. As an option, a rack rail kit can be purchased for installing rack mount installable electronic equipment. The optional CR222RR rack rail provides two rack units (2RU).


Atlas Sound 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack - Without Projector Pole Adapter CR222-NR

SKU: CR222NR | UPC: 612079663729
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,147.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack - Without Projector Pole Adapter CR222-NR $1,147.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Rack Units2Height6.74" (171mm) Width 23.69" (602mm) Depth 23.67" (601mm) Usable Depth 18.21" (463mm) Max Shelf Load 20 lbs (9.09 kg) per RUMax Gross Weight 68.5 lbs (31.14 kg) Weight28.5 lbs (12.95 kg) Shipping Weight TBD
Atlas Sound 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack - Without Projector Pole Adapter CR222-NR
Atlas Sound

Atlas Sound 2' x 2' Ceiling-Mount Rack with 2RU, Standard-Width, AmbiTILT™ Shelf and Integrated AC Power Pack - Without Projector Pole Adapter CR222-NR

$1,147.99
