Product Summary

SPECIFICATIONS

























































Network Interface Single RJ-45
Input Impedance 15kΩ (Analog)
Frequency Response 20Hz - 20kHz (+/- 2dB)
THD .06% @ 1kHz
Signal To Noise Ratio 95dB @ 1kHz (A Weighted)
Dynamic Range 100dB (-60dBFS A Weighted)
Power Source PoE (52V 36mA)
Power Consumption 1.9W
Height 1" (25mm)
Width 3.6" (93mm)
Depth 3.17" (81mm)
Weight .44 lbs (0.20kg)
Shipping Weight .7 lbs (0.32kg)




  • Dante® digital audio platform




  • 2 CH Balanced Analog Line Input




  • Wide range gain adjust -20dB to +20dB




  • AUX, Line & Mic Levels




  • Input Clip Indicator



  • PoE Powered

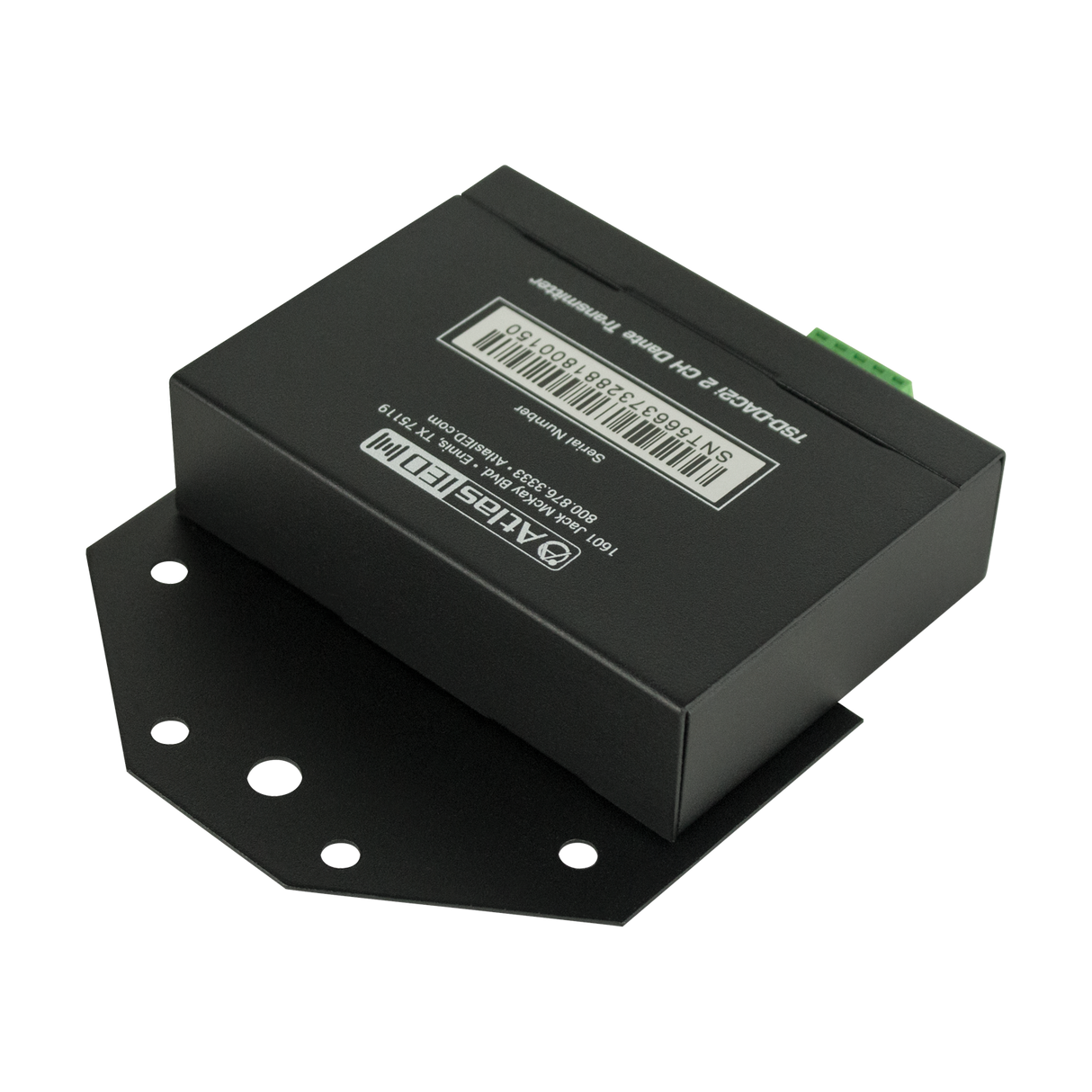

  • Mounting Plate

  • Incorporates with WTSD Wall Mixers


Introducing the AtlasIED TSD-DAC2i, a powerful PoE (Power over Ethernet) 2-channel analog pre-amplifier designed to convert analog audio signals into Dante® digital audio. This innovative device allows for seamless integration of analog audio sources into Dante® digital audio systems.

The TSD-DAC2i is versatile and can be used with any Analog to Dante® digital audio endpoint. However, it is particularly well-suited for use with the AtlasIED WTSD wall mixer series. When analog audio signals are converted into Dante® digital audio, they can be transmitted over IP networks and easily routed and managed using the Dante® Controller software.

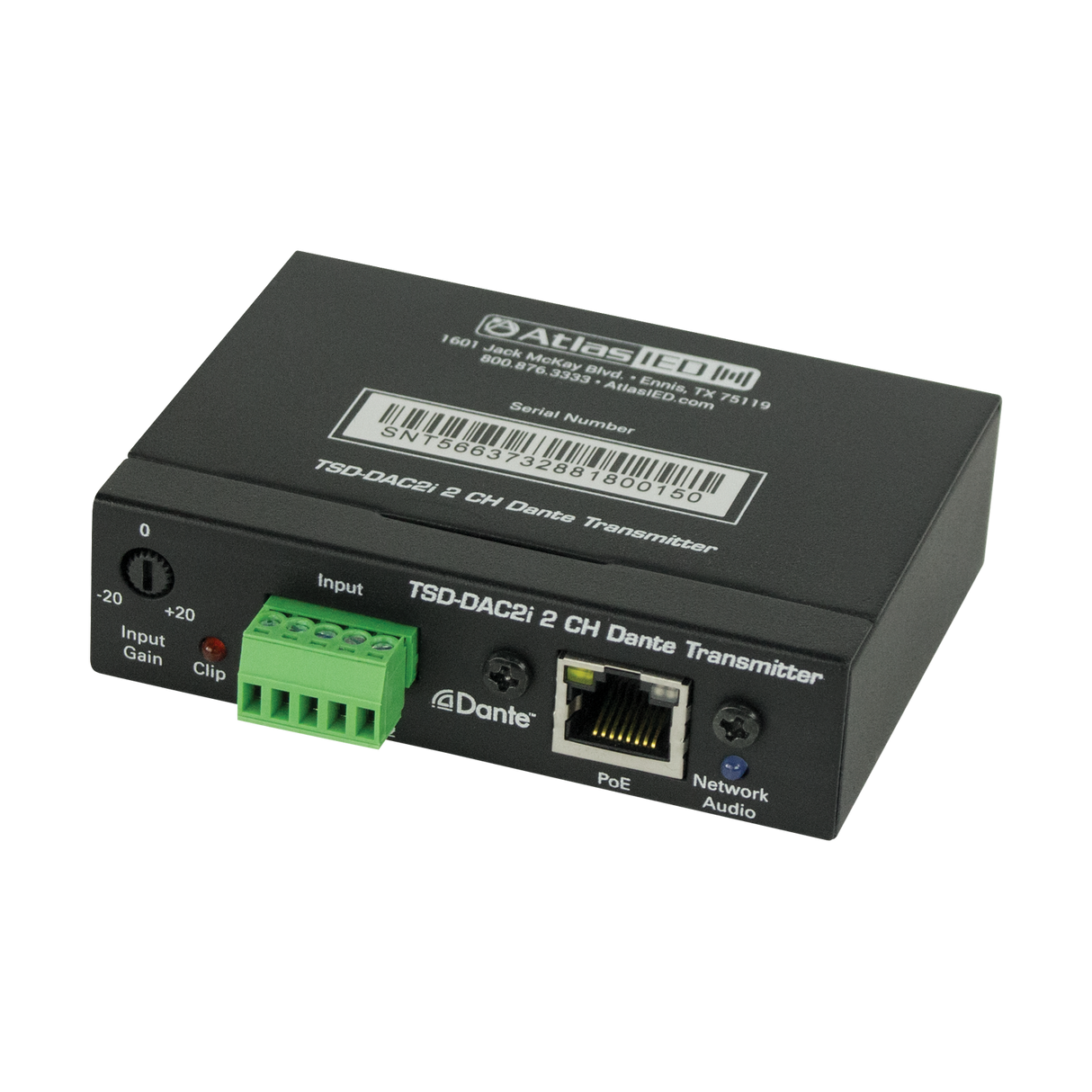

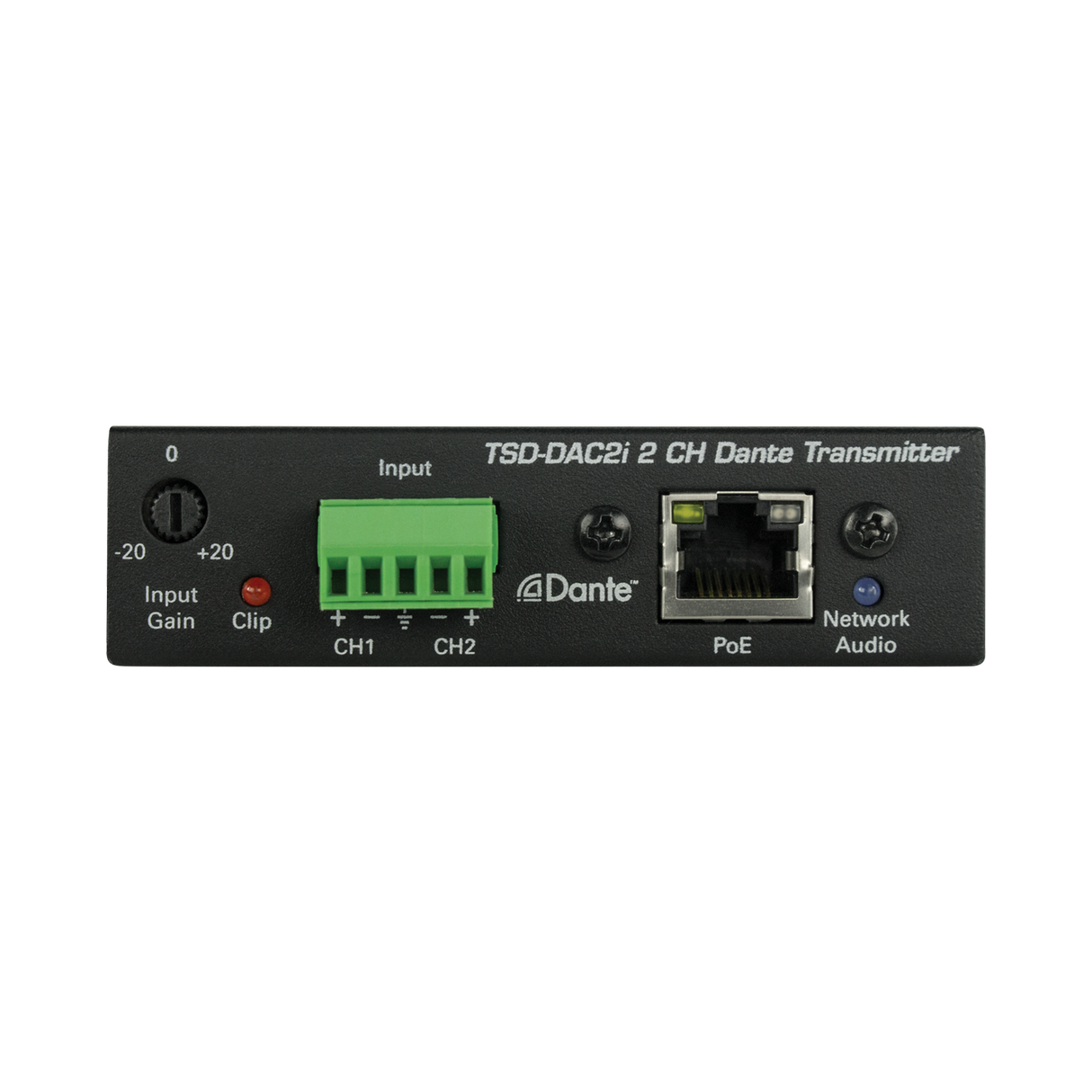

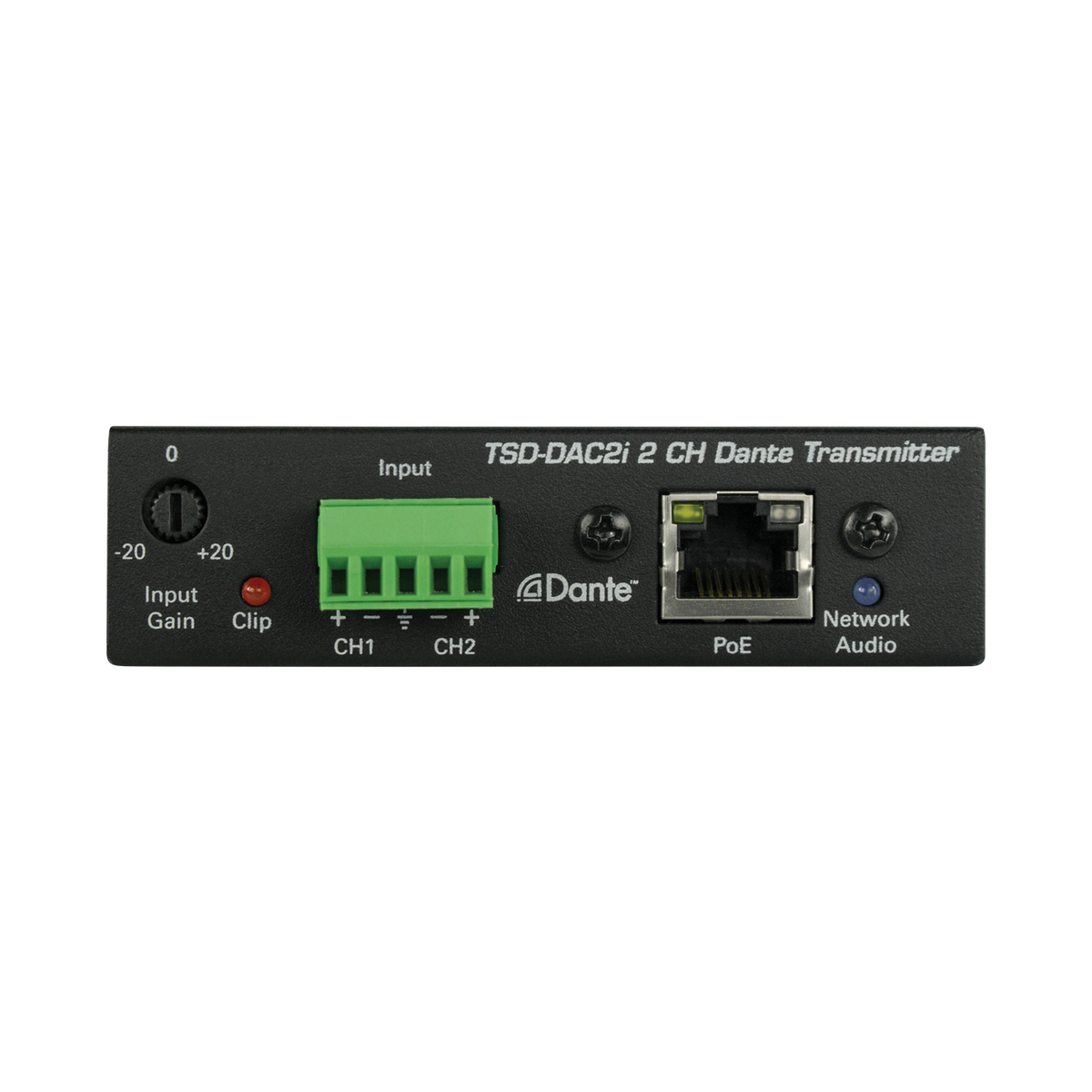

Equipped with two analog balanced line inputs, the TSD-DAC2i Dante® transmitter I/O module provides flexible connectivity options. The variable gain control allows for easy adjustment from line to mic level, ensuring compatibility with various audio sources. An Input Clip indicator illuminates when clipping signals are present, enabling users to monitor and optimize audio levels.

The TSD-DAC2i features indicators for Power and Network connection, providing visual cues for quick status checks. What sets this pre-amplifier apart is its power supply. It requires no external power supply as it can be conveniently powered via a network PoE port or a PoE cable power injector. This streamlined power setup simplifies installation and reduces clutter.

Upgrade your audio system with the AtlasIED TSD-DAC2i and experience the seamless integration of analog audio into Dante® digital audio networks. Benefit from its flexible inputs, intuitive indicators, and convenient PoE power supply. This pre-amplifier opens up new possibilities for audio transmission and management in professional installations.

Atlas Sound 2-Channel Balance Line Input to Dante® Interface TSD-DAC2I

SKU: TSDDAC2I | UPC: 612079663736
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$506.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 2-Channel Balance Line Input to Dante® Interface TSD-DAC2I $506.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features
