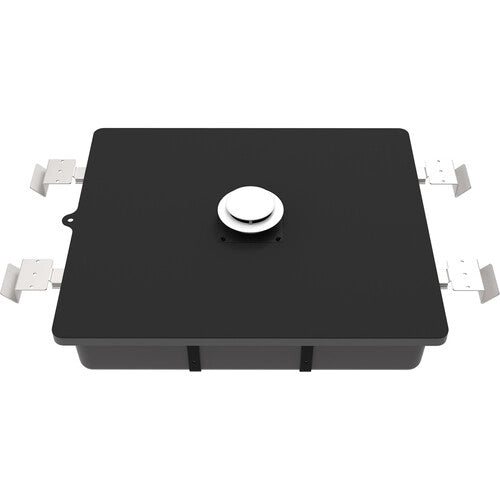

Atlas Sound SHS-LF Strategically Hidden Subwoofer 60-Watts 70V/100V Transformer (Black)
SKU:
SHSLF
$729.99
Unit price
/
Unavailable
In Stock
·
Free Shipping to Lower 48 States
Tax-Exempt
& Purchase Orders Accepted
Bulk Pricing
Available
Atlas Sound SHS-LF Strategically Hidden Subwoofer 60-Watts 70V/100V Transformer (Black) is backordered and will ship as soon as it is back in stock.
- Manufacturer Warranty Included
- Lifetime Technical Support from OfficeWonderland
- No Sales Tax for Qualified Tax-Exempt Organizations
- Purchase Orders Accepted (Net 30 Available)
Atlas Sound SHS-LF Strategically Hidden Subwoofer 60-Watts 70V/100V...
$729.99
Unit price
/
Unavailable
Key Features
- SPECIFICATIONS\n\n\n\n\nSensitivity\n87dB (1W/1m)\n\n\nPower Taps (70V)\n1.9, 3.8, 7.5, 15, 30, 60-Watts\n\n\nPower Taps (100V)\n3.8, 7.5, 15, 30, 60-Watts\n\n\nRecommended Amp Power (RMS)\n200-Watts @ 8Ω\n\n\nFrequency Response (Line Gain)\n46Hz - 127Hz (+/- 5dB)\n\n\nCut Out Diameter\n2.75" (69.85mm)\n\n\nCertified To Safety Listing\nUL1480A & UL2043, CSA C22.2 No. 205-17\n\n\nDimensions (HxWxD)\n4.58" (116.3mm) x 24.56" ( 623.8 mm) x 16.66" (423.3mm)\n\n\nWeight\n28.70 Lbs (13.02 kg)\n\n\n\n
Purchase Orders & Tax-Exempt
We proudly support schools, universities, government agencies, and qualified businesses.
- Net 30 Purchase Orders
- Tax-Exempt Sales for Eligible Organizations
- W-9 Available Upon Request
SPECIFICATIONS
| Sensitivity | 87dB (1W/1m) |
| Power Taps (70V) | 1.9, 3.8, 7.5, 15, 30, 60-Watts |
| Power Taps (100V) | 3.8, 7.5, 15, 30, 60-Watts |
| Recommended Amp Power (RMS) | 200-Watts @ 8Ω |
| Frequency Response (Line Gain) | 46Hz - 127Hz (+/- 5dB) |
| Cut Out Diameter | 2.75" (69.85mm) |
| Certified To Safety Listing | UL1480A & UL2043, CSA C22.2 No. 205-17 |
| Dimensions (HxWxD) | 4.58" (116.3mm) x 24.56" ( 623.8 mm) x 16.66" (423.3mm) |
| Weight | 28.70 Lbs (13.02 kg) |
- Subtle Form & Design Blends Into Any Ceiling
- Easy & Quick Installation
- Detachable, Phoenix Style, Four-pole Euro Connectors for Easy Daisy Chain Wiring
- Sealed Enclosure Provides Optimal Bass Response
- Optional Color Match Process Via DesignLab™ by AtlasIED
Introducing the Atlas Sound Strategically Hidden Subwoofer 60-Watts 70V/100V Transformer (Black) SHS-LF, a powerful and discreet subwoofer designed to deliver optimal deep bass performance. Featuring four low-frequency drivers housed within a concealed enclosure, this subwoofer is sure to impress listeners with its immersive and impactful sound.
The SHS-LF comes equipped with a 70V/100V transformer that includes primary taps at 1.9, 3.8, 7.5, 15, 30, and 60 watts (@70.7V). This allows for seamless integration and balancing of the subwoofer with full-range speakers, eliminating the need for separate amplification. The tap selector switch also includes a transformer bypass setting for 8Ω/direct coupled applications, providing added flexibility in system configuration.
Designed with installers in mind, the SHS-LF features an integrated rail system that simplifies the installation process. All necessary parts, including the tile rails, are built directly into the enclosure, eliminating the need for rail screws. Once the four rails are pulled out from the enclosure, it is ready for installation. Installers only need to drill a 2.75" hole into the ceiling tile, set the product through the hole, and secure it by screwing on the adaptive dispersion lens.
The SHS-LF includes the Adaptive Dispersion Lens, which can be configured in two different ways to suit various applications. For installations with ceiling heights between 10' and 14', the 8mm dispersion lens with the solid lens cover attached is recommended. For installations with ceiling heights above 14' or in applications that require maximum output, the direct fire lens with the perforated panel attached should be used.
Thanks to its concealed design, the SHS-LF seamlessly blends into its surroundings. It incorporates a patented 3" diameter dispersion lens with a micro trim ring, ensuring a discreet visual appearance once installed. The subwoofer's size is minimized to that of a high-end ceiling sprinkler head, providing a clean and unobtrusive look.
Experience powerful and immersive bass performance with the SHS-LF subwoofer. Its concealed design, integrated rail system, and adaptive dispersion lens make it an ideal choice for a range of applications where deep bass is desired while maintaining a sleek and visually appealing aesthetic. Elevate your audio experience with the SHS-LF and enjoy a new level of sound quality and immersion.
