• 1,500,000 : 1 Contrast Ratio


• 1920 × 1200 WUXGA Resolution


• 5,000 ANSI lumens

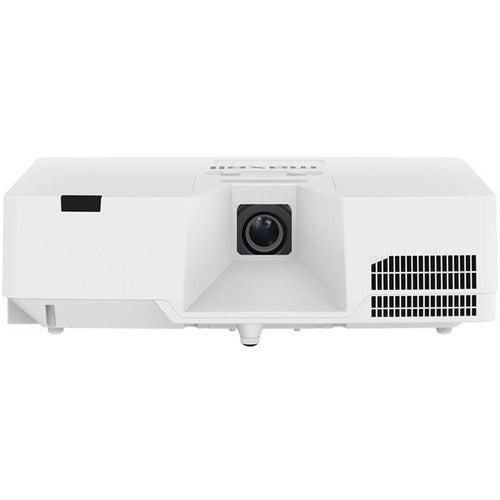

Maxell has reclaimed their projector line and released it’s first new model, the Maxell MP-WX5603 5000 ANSI Lumens WXGA Laser projector. The Maxell MPWX5503 is practically maintenance free with 20,000 hours of lamp life and can be used for extended period of run time designed for 24/7 use. The MP-WX5603 is very flexible for different types of installations with it’s lens shift and 360 degree mounting capabilities. This will allow you to point the projector directly on the floor or mount it sideways. Expect the highest quality image even with ambient light with both 5000 lumens of brightness and 1,500,000:1 contrast ratio. When buying the MP-WX5603 from a Maxell Authorized dealer such as Officewonderland you will be provided a 5 year manufacturer warranty free of charge to protect your investment.



Product Highlights

• 6,000 ANSI Lumens Brightness


• WXGA (1280 x 800) Native Resolution


• 1.3 – 2.1 : 1 Throw Ratio

Unique Features

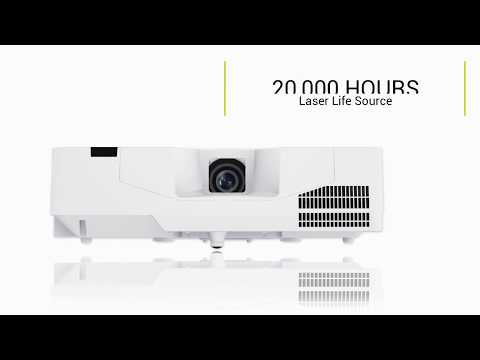

Long Life 20,000 Hours Laser Light Source:

Light source combines blue laser diodes and phosphor which can achieve over 6,000 lumens. The projection image is bright and clear, with vivid colors. Since lamp replacement is unnecessary, maintenance cost is reduced and by not using mercury lamps, the projectors are eco-friendly. Plus, Maxell’s unique cooling system can achieve a low noise level of 27dB in whisper mode. The life of the light source is approximately 20,000 hours at normal mode but by using other modes which reduce the brightness or operation period, its life can be extended up to 50,000 hours. These mode settings can be used for different purposes depending on the application of the projector.

Accentualizer:

Maxell original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.

Aspect Zoom:

Aspect Zoom makes the maximum image size on the screen while keeping the aspect of the image.

Auto Power On:

When the projector is in standby mode and detects the video signal input from an external device, this function starts up the projector to display the image automatically on the screen. This makes the time to start up the projector and begin presenting quicker and easier.

• This function is unavailable when STANDBY MODE is set to NETWORK(WOL) or SAVING.


• This function may work unintentionally by connected external device.

Cloning Function:

Copy setting data from one projector to others of the same model via the Projector Data Cloning Application. Cloning not only saves almost all PJ settings such as gamma and keystone, it saves countless hours in setup and installation.

HDCR2 (High Dynamic Contrast Range):

When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto color enhancement. This results in clear and vivid images even in bright rooms.

Perfect Fit 2:

Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.

Projector Quick Connection App For Mobile Devices:

Our iOS and Android applications offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.

Standard Features

Input Source Naming:

Users can name input sources in simple language instead of factory default names.

Lens Shift:

Lens shift can adjust the position of an image on the screen by turning the adjusters manually. This adjustment is useful to fit the image to the position without causing keystone distortion.

Network Control, Maintenance and Security:

Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.

Picture By Picture:

Enables the content from two input sources to be displayed simultaneously, side by side on one screen. You can use two sources including 2 HDMI, with both images sharing equal screen size. The feature is ideal for teleconferencing applications.

Picture In Picture:

Enables you to display one image inside another image using two sources including 2 HDMI.

PIN Lock / MyScreen / MyText:

PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.

Wireless Presentation Compatible:

Connect the Maxell MP-WX5603 projector to a computer or your network using the optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11 a/b/g/n/ac.

360° Rotation/Portrait Projection:

Display rotation of 360° and portrait projection for creative applications and greater installation flexibility.
