Product Summary





  • Multi-purpose coaxial loudspeaker for voice transmission, music, and signal reproduction in commercial, industrial, and institutional applications









  • Optimized to produce sonic quality similar to the legendary C803A speaker









  • 45 Hz to 19 kHz nominal frequency range









  • High-efficiency transformer with taps at 1W, 2W, 4W, and 8W for use with constant-voltage systems









  • Handles 16W RMS (25W peak)









  • Factory-installed CRS baffle with concealed loudspeaker mounting studs






  • Passive, Non-Shielded Design

  • 8" Woofer, 3" Tweeter

  • 16W RMS Power Handling

  • Integrated Multi-Tap Transformer

  • 45 Hz to 19 kHz Nominal Frequency Range

  • 120° Dispersion Pattern

  • Pre-Installed CRS Baffle

  • Built-In Crossover Network

  • Color-Coded 6" Wire Lead

  • Includes Mounting Hardware

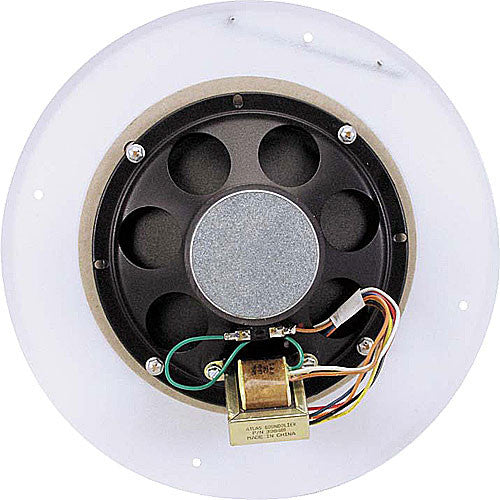

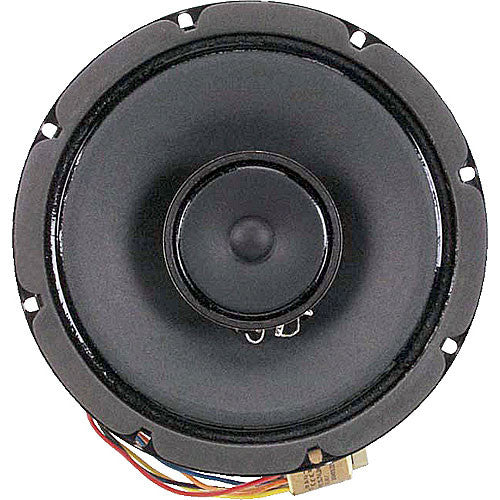

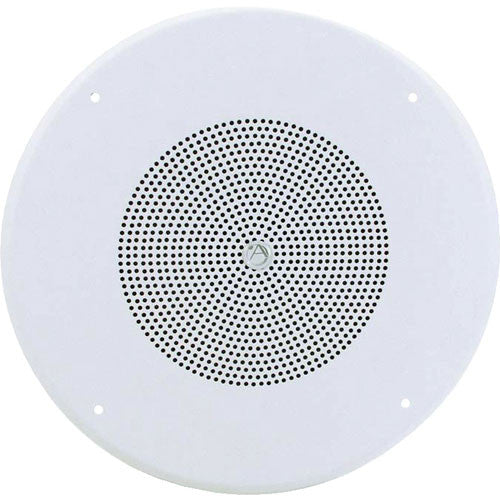

The white Atlas Sound GD87W is a passive, non-shielded 8" ceiling speaker with an 8W multi-tap transformer designed for voice amplification and background music reproduction in a variety of environments ranging from academic institutions to industrial buildings. When driven by a 70V/100V power amplifier (available separately), the 8" treated paper woofer and 3" tweeter yield a nominal frequency range of 45 Hz to 19 kHz. A built-in crossover network ensures proper distribution of frequencies to the speaker components.

Atlas Sound GD87W 8" 2-Way 16W Coaxial Ceiling Speaker with Baffle & 70.7V Transformer

SKU: GD87W | UPC: 612079179985
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$72.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound GD87W 8" 2-Way 16W Coaxial Ceiling Speaker with Baffle & 70.7V Transformer $72.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Multi-purpose coaxial loudspeaker for voice transmission, music, and signal reproduction in commercial, industrial, and institutional applications</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Optimized to produce sonic quality similar to the legendary C803A speaker</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">45 Hz to 19 kHz nominal frequency range</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">High-efficiency transformer with taps at 1W, 2W, 4W, and 8W for use with constant-voltage systems</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Handles 16W RMS (25W peak)</li>\n</ul>\n</div>\n</div>\n</div>\n<div>\n<div class="feature_UbV5SNP5Eo">\n<div class="descriptionAsTitle_UbV5SNP5Eo">\n<ul>\n <li class="js-injected-html text_UbV5SNP5Eo">Factory-installed CRS baffle with concealed loudspeaker mounting studs</li>\n</ul>\n</div>\n</div>\n</div>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Treated Paper
Sensitivity 96dB Average
Frequency Response 55Hz - 15kHz
Power Taps 1, 2, 4, & 8 Watts
Dispersion 105° (2kHz Octave Band, -6dB Points)
Diameter 8 1/8" (20.6375 cm)
Safety Listed 1480, 2043
