Product Summary


  • IP-22SYSM indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.

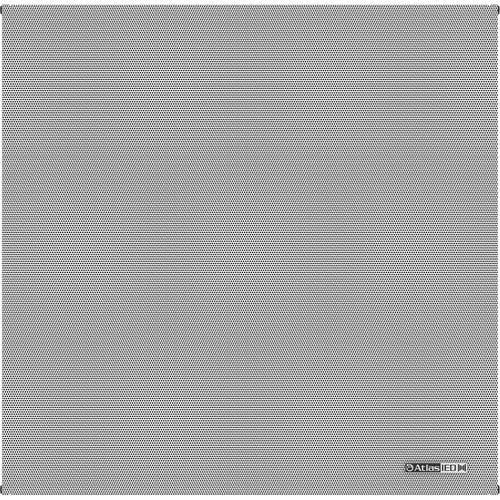

  • The Grills for the IP-22SYSM IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the speaker to maximize performance by allowing the optimum percentage of open area forward of the speaker. The baffle is finished in neutral white electrostatic powder coat.

  • IP-22SYSM includes an Omni directional subminiature, electret condenser microphone that is mounted behind the grille’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.

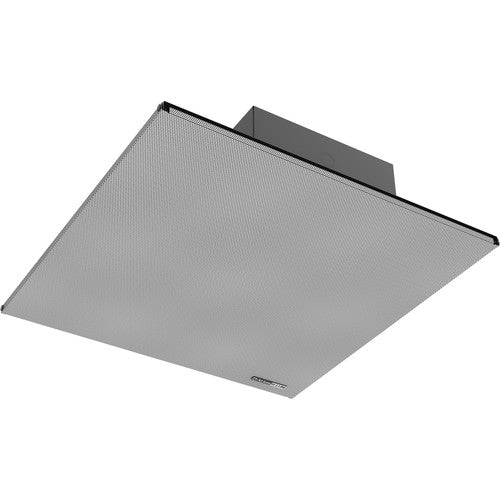

AtlasIED IP-22SYSM 2’ x 2’ suspended ceiling mount IP speakers with talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

AtlasIED IP-22SYSM registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Atlas Sound 8" 2x2' Drop Tile Ceiling PoE+ IP Loudspeaker Endpoint with Microphone IP-22SYSM

SKU: IP22SYSM | UPC: 612079664450
Authorized Dealer Authorized Atlas Sound Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,157.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Atlas Sound 8" 2x2' Drop Tile Ceiling PoE+ IP Loudspeaker Endpoint with Microphone IP-22SYSM $1,157.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>IP-22SYSM indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.</li>\n <li>The Grills for the IP-22SYSM IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the speaker to maximize performance by allowing the optimum percentage of open area forward of the speaker. The baffle is finished in neutral white electrostatic powder coat.</li>\n <li>IP-22SYSM includes an Omni directional subminiature, electret condenser microphone that is mounted behind the grille’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.</li>\n</ul>

Technical Details

Specifications

General
SPECIFICATIONS
Speaker Type Coaxial
Speaker Size 8" LF, 1" HF
Frequency Response 86Hz - 15.5kHz
Dispersion 105˚ (2kHz Octave Band, -6dB Points)
Sensitivity 98dB SPL Average
Power Rating 12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)
THD <0.2%
Connector Type RJ-45
Height 23.68" (601mm)
Width 24.10" (612mm)
Depth 5.06" (129mm)
Shipping Weight 20.91 lbs (9.48 kg)
