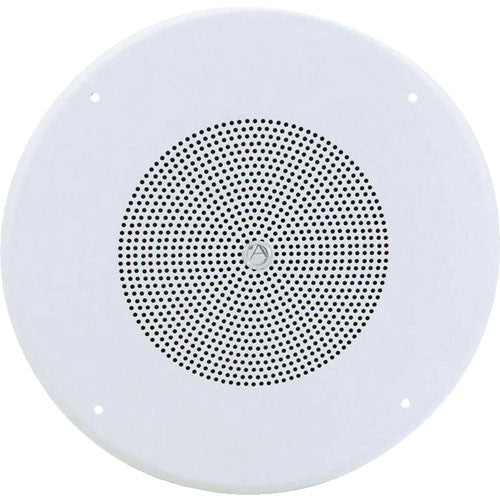

Atlas Sound GD87W 8" 2-Way 16W Coaxial Ceiling Speaker with Baffle & 70.7V Transformer

$57.99
Free Shipping At Checkout!

Fall SALE- additional discount in cart

Need Help? Call Us 800-211-2718

Product Highlights:
  • Multi-purpose coaxial loudspeaker for voice transmission, music, and signal reproduction in commercial, industrial, and institutional applications
  • Optimized to produce sonic quality similar to the legendary C803A speaker
  • 45 Hz to 19 kHz nominal frequency range
  • High-efficiency transformer with taps at 1W, 2W, 4W, and 8W for use with constant-voltage systems
  • Handles 16W RMS (25W peak)
  • Factory-installed CRS baffle with concealed loudspeaker mounting studs

Click above to submit a purchase order
DUNS #074303253

IRS W-9 form
Included In The Box:
  • Atlas Sound GD87W 8" 2-Way 16W Coaxial Ceiling Speaker with Baffle & 70.7V Transformer
  • Mounting Hardware
  • Limited 5-Year Warranty





  • Multi-purpose coaxial loudspeaker for voice transmission, music, and signal reproduction in commercial, industrial, and institutional applications









  • Optimized to produce sonic quality similar to the legendary C803A speaker









  • 45 Hz to 19 kHz nominal frequency range









  • High-efficiency transformer with taps at 1W, 2W, 4W, and 8W for use with constant-voltage systems









  • Handles 16W RMS (25W peak)









  • Factory-installed CRS baffle with concealed loudspeaker mounting studs






  • Passive, Non-Shielded Design

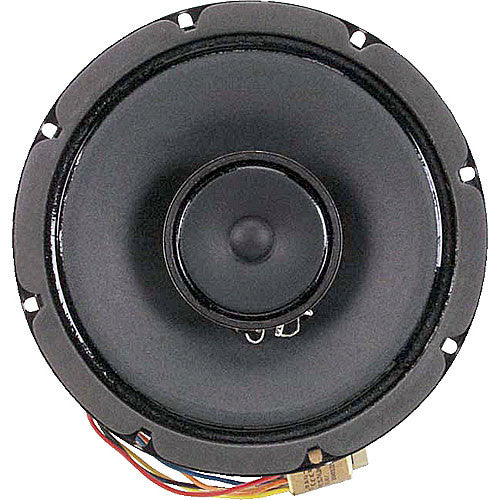

  • 8" Woofer, 3" Tweeter

  • 16W RMS Power Handling

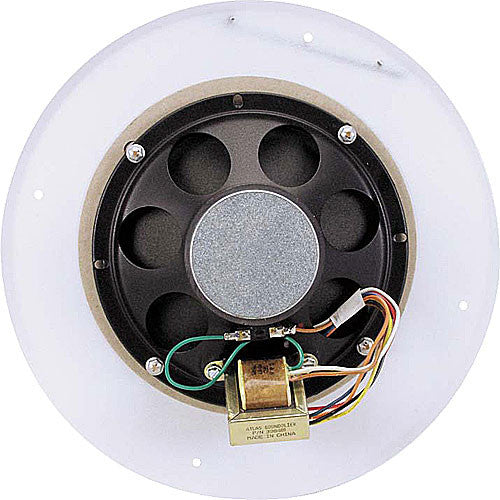

  • Integrated Multi-Tap Transformer

  • 45 Hz to 19 kHz Nominal Frequency Range

  • 120° Dispersion Pattern

  • Pre-Installed CRS Baffle

  • Built-In Crossover Network

  • Color-Coded 6" Wire Lead

  • Includes Mounting Hardware


The white Atlas Sound GD87W is a passive, non-shielded 8" ceiling speaker with an 8W multi-tap transformer designed for voice amplification and background music reproduction in a variety of environments ranging from academic institutions to industrial buildings. When driven by a 70V/100V power amplifier (available separately), the 8" treated paper woofer and 3" tweeter yield a nominal frequency range of 45 Hz to 19 kHz. A built-in crossover network ensures proper distribution of frequencies to the speaker components.
