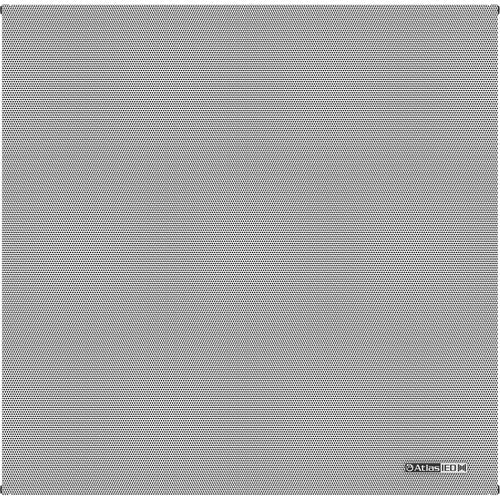

Atlas Sound 8" 2x2' Drop Tile Ceiling PoE+ IP Loudspeaker Endpoint with Microphone IP-22SYSM

SKU: IP22SYSM  |  UPC: 612079664450
$925.99
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Memorial Month Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • \n IP-22SYSM indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.\n The Grills for the IP-22SYSM IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the speaker to maximize performance by allowing the optimum percentage of open area forward of the speaker. The baffle is finished in neutral white electrostatic powder coat.\n IP-22SYSM includes an Omni directional subminiature, electret condenser microphone that is mounted behind the grille’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.\n

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • IP-22SYSM indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.

  • The Grills for the IP-22SYSM IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. A perforated 22-gauge metal screen is provided over the speaker to maximize performance by allowing the optimum percentage of open area forward of the speaker. The baffle is finished in neutral white electrostatic powder coat.

  • IP-22SYSM includes an Omni directional subminiature, electret condenser microphone that is mounted behind the grille’s steel perforation material adjacent to the speaker to allow two-way communication and/or monitoring from the speaker location to any PC or phone handset.

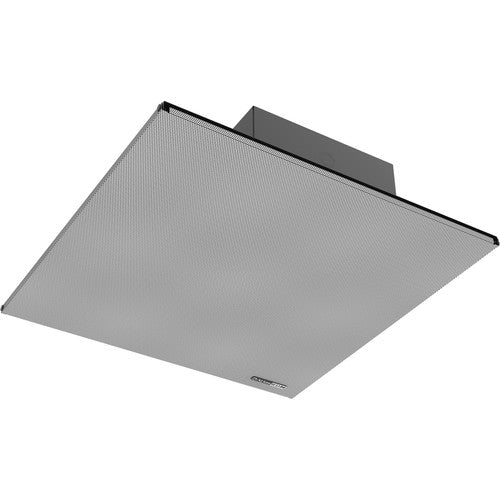

AtlasIED IP-22SYSM 2’ x 2’ suspended ceiling mount IP speakers with talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.

AtlasIED IP-22SYSM registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Is This Right For You?


Recommendation


Atlas Sound 8 2x2' Drop Tile Ceiling PoE+ IP Loudspeaker Endpoint with Microphone
Atlas Sound

Atlas Sound 8" 2x2' Drop Tile Ceiling PoE+ IP Loudspeaker Endpoint with Microphone IP-22SYSM

$925.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<div class="title"><strong>SPECIFICATIONS</strong></div>
<div class="table-wrapper">
<table>
<tbody>
<tr>
<td>Speaker Type</td>
<td>Coaxial</td>
</tr>
<tr>
<td>Speaker Size</td>
<td>8" LF, 1" HF</td>
</tr>
<tr>
<td>Frequency Response</td>
<td>86Hz - 15.5kHz</td>
</tr>
<tr>
<td>Dispersion</td>
<td>105˚ (2kHz Octave Band, -6dB Points)</td>
</tr>
<tr>
<td>Sensitivity</td>
<td>98dB SPL Average</td>
</tr>
<tr>
<td>Power Rating</td>
<td>12-Watts Max (802.3AF) / 25-Watts Max (802.3AT)</td>
</tr>
<tr>
<td>THD</td>
<td>&lt;0.2%</td>
</tr>
<tr>
<td>Connector Type</td>
<td>RJ-45</td>
</tr>
<tr>
<td>Height</td>
<td>23.68" (601mm)</td>
</tr>
<tr>
<td>Width</td>
<td>24.10" (612mm)</td>
</tr>
<tr>
<td>Depth</td>
<td>5.06" (129mm)</td>
</tr>
<tr>
<td>Shipping Weight</td>
<td>20.91 lbs (9.48 kg)</td>
</tr>
</tbody>
</table>
</div>
