Product Summary


  • Superior sound quality

  • Enhanced high-frequency performance

  • High-power 3-way system


Unveiling Remarkable Performance in a Compact Package

Introducing the VTX V20, a marvel of cutting-edge technology and exceptional performance, encapsulating the groundbreaking prowess of the VTX V25 in a more compact, high-power 3-way system. This engineering masterpiece is complemented by a novel suspension system designed for swift transport, hassle-free setup, and precise configuration. Every facet of the VTX V20 has been meticulously crafted to ensure a stable 105-degree horizontal coverage and optimal line source array coupling in the vertical dimension. This results in an audio experience that remains faithful and crystal-clear even when pushing the boundaries of output levels, all packaged within its remarkably compact size.

Key Features:

  1. Differential Drive Technology: Experience superior sound quality with our state-of-the-art differential drive technology.

  2. 4th Generation Advanced High-Frequency Waveguide: Enjoy enhanced high-frequency performance with our cutting-edge waveguide technology.

  3. Compact Version of the Patented D2 Dual Compression Driver: The VTX V20 boasts a smaller yet equally powerful iteration of our patented D2 dual compression driver.

  4. ASM Suspension System: Our innovative ASM suspension system ensures efficient transport and effortless setup.

  5. V5 System Integration: Seamlessly integrate the VTX V20 into your audio setup with our V5 system integration technology.


Experience extraordinary sound performance in a package that defies its compact nature – the VTX V20.

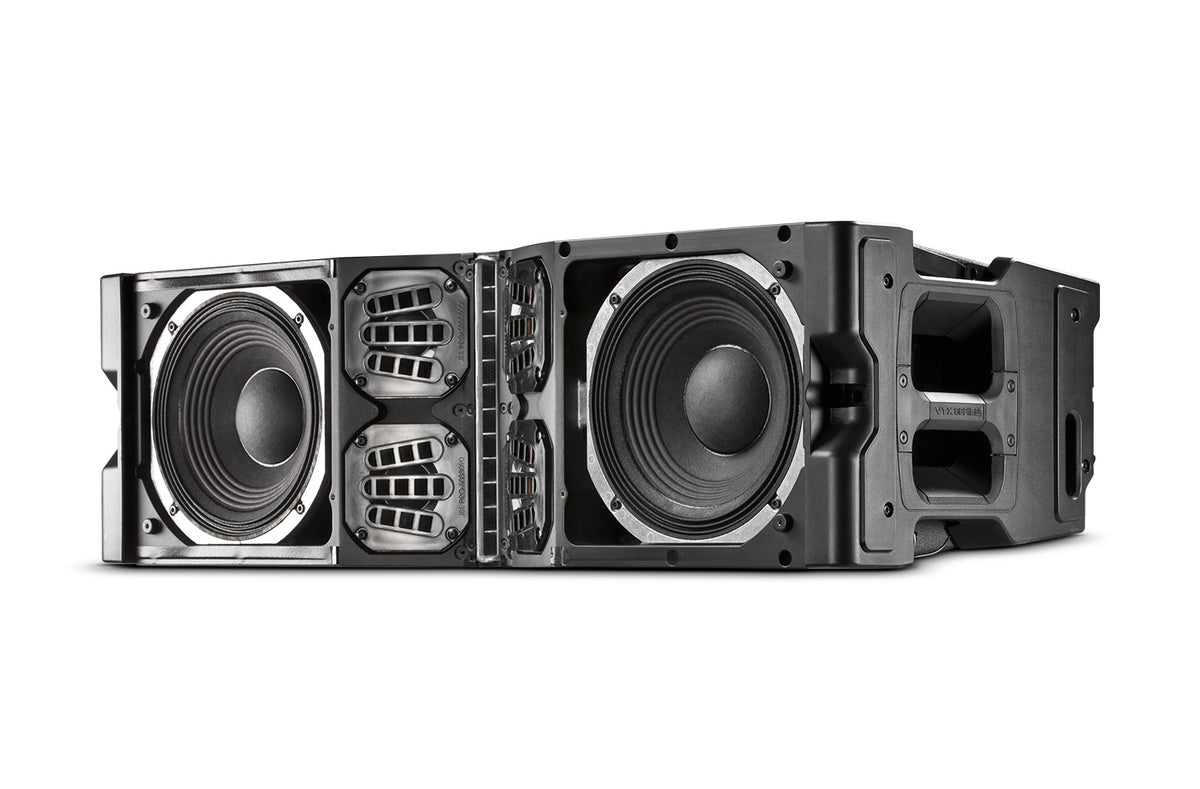

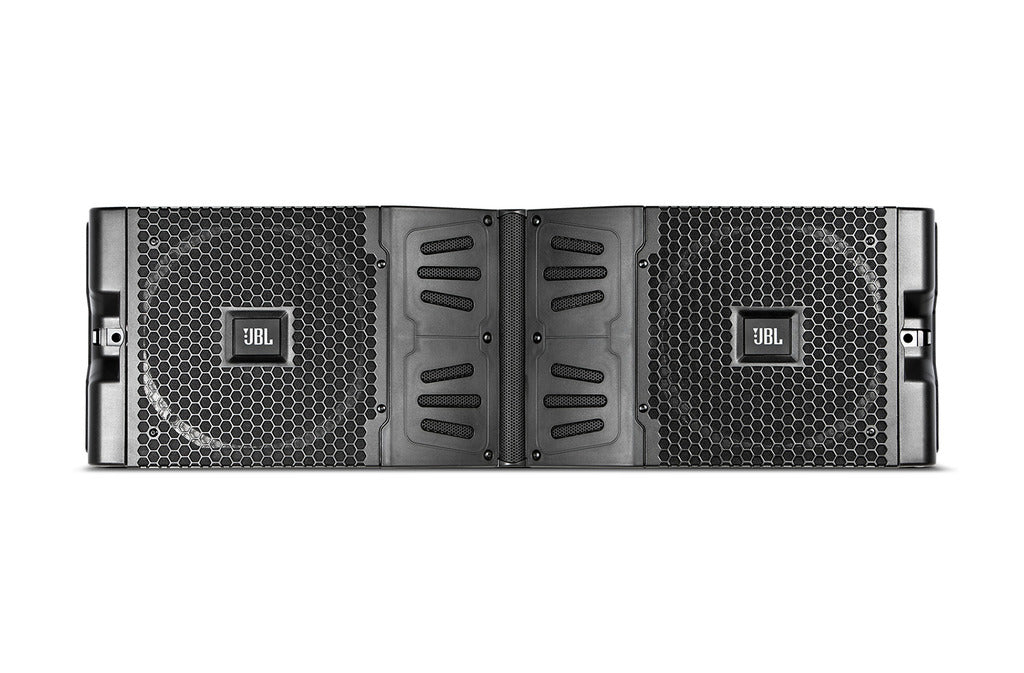

JBL VTX-V20-BP Three-Way High Directivity Line Array Element

SKU: VTXV20BP | UPC: 691991034299
Authorized Dealer Authorized JBL Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
JBL VTX-V20-BP Three-Way High Directivity Line Array Element Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Superior sound quality</li>\n <li>Enhanced high-frequency performance</li>\n <li>High-power 3-way system</li>\n</ul>

Technical Details

Specifications

General
System Type 3-Way High Directivity Line Array Element with D2 Technology
Frequency Range (-10dB) 60 Hz – 20 kHz (Preset: VTX V20)
Horizontal Coverage (-6 dB) 105 degrees nominal (300 Hz - 16 kHz)
Maximum Peak Output 139 dB (Preset: VTX V20)
System Amplification Crown Audio I-Tech HD
Nominal Impedance Active: LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms Passive: LF: 16 ohms MHF: 8 ohms
LF Driver (2) JBL 2261H 10-inch Neodymium Differential Drive® woofer
MF Driver (4) JBL 2164H 5-inch Neodymium mid-range woofer
HF Driver (3) JBL 2415K D2 Dual Diaphragm, Dual Voice Coil, Neodymium Compression Drive
Enclosure Cast aluminum front baffles and HF waveguide, Finnish birch plywood; black DuraFlex™ finish, integral recessed handles
Inter-enclosure Angle 0, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5, 7.5, 10, 12.5
Dimensions (H x W x D) 280 mm x 911 mm x 402 mm 11 in x 35.9 in x 15.8 in
Net Weight (each) 40 kg (88 lbs)
