Product Summary


  • RS422/RS232 Remote Control Interface

  • 20x optical zoom

  • 1080p, 1080i, and 720p modes

  • 1/2.8" sensor captures clear images



  • 2 Megapixel 1/2.8-inch Sensor

  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p

  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps

  • 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital

  • Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt

  • Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions

  • TRS Audio Line/Mic level select (2.5V to mic)

  • IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs

  • RS422/RS232 Remote Control Interface at High Comm Speeds

  • Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.

  • Compatible with integrated video conferencing systems

  • (1) Ethernet (Cat) connection allows for H.264 video, PoE+ (power), and Control over one Cat cable.

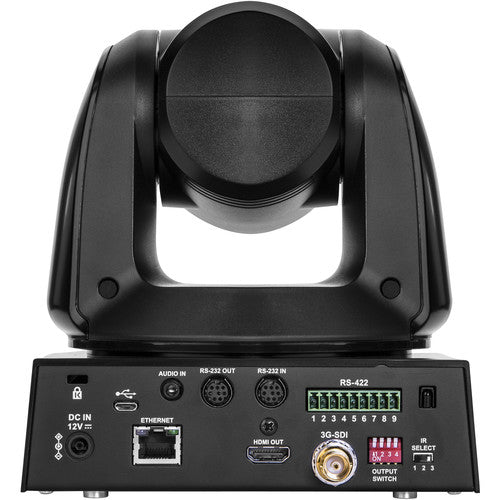

REAR OUTPUTS:

1. USB port for FW updates

2. 12V Power input

3. IP NETWORK Ethernet (PoE+/H.264/IP Control)

4. HDMI Type-A Output

5. 3G/HD-SDI Output

6. OUTPUT Selection Switch

7. IR SELECT

8. TRS Audio In

9. RS-232 loop-through OUT

10. RS-232 INPUT port

11. RS-422 port

Marshall Electronics Broadcast ProAV PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as 3G/HD-SDI, HDMI Type-A, and IP (H.264) which allows for one Ethernet cable to contain compressed H.264 Video, PoE (48V) and IP Control. Remote operation and control via VMS (Video Management Software), Web Browser GUI, or RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Remote Confidence Monitoring, Corporate, Broadcast, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast ProAV studio workflows using IP, 3G/HD-SDI, or HDMI.

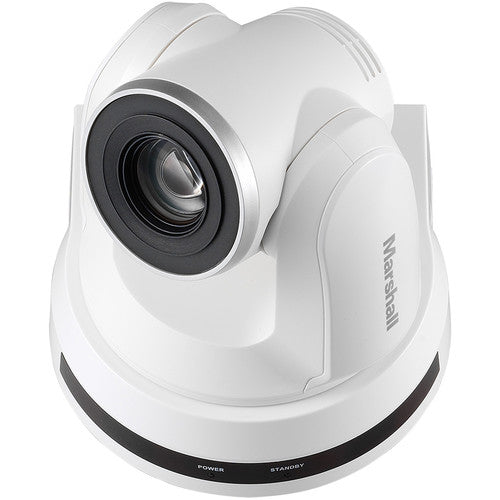

Marshall CV620-IPW HD PTZ Camera with IP, 3G/HD-SDI, HDMI (White)

SKU: CV620IPW | UPC: 801813188349
Authorized Dealer Authorized Marshall Electronics Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,949.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Marshall CV620-IPW HD PTZ Camera with IP, 3G/HD-SDI, HDMI (White) $1,949.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Full HD 1080p60 Video
  • 20x Optical Zoom
  • Simultaneous SDI HDMI IP
  • PoE+ Single-Cable Connectivity
  • RS-232 RS-422 Control
Complete Your Solution

Controllers

Marshall VS-PTC-IP IP PTZ Camera Controller

Marshall Electronics

$1,349.00
16357
Marshall Electronics

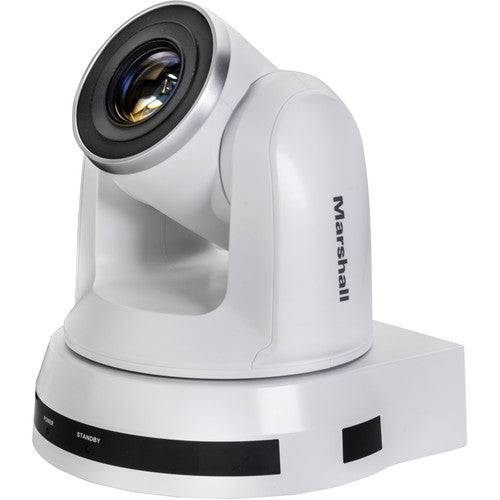

Marshall CV620-IPW HD PTZ Camera with IP, 3G/HD-SDI, HDMI (White)

$1,949.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

Size: 1/2.8" Resolution: 2 MP

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

> 50 dB

N/A

Gain

N/A

N/A

Shutter Speed Range

1 - 1/10,000 sec

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

1 x BNC, HD/3G-SDI,1 x HDMI type A

N/A

Audio Input

N/A

N/A

Audio

1 x 3.5mm, stereo analog audio

N/A

Camera Control

1 x RJ45,1 x DIN, RS-232 input

N/A

Focal Length

Focal Length: 4.7-94mm Aperture: f/1.6-3.5

N/A

Minimum Object Distance

Wide: 12" / 30 cm Tele: 60" / 1.5 m

N/A

Pan Angle

±170°

N/A

Tilt Angle

-30 to +90°

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

1 lux (50 IRE at f/1.6 and 30 fps)

N/A

Optical Zoom

20x

N/A

TAA Compliant

N/A
