Product Summary

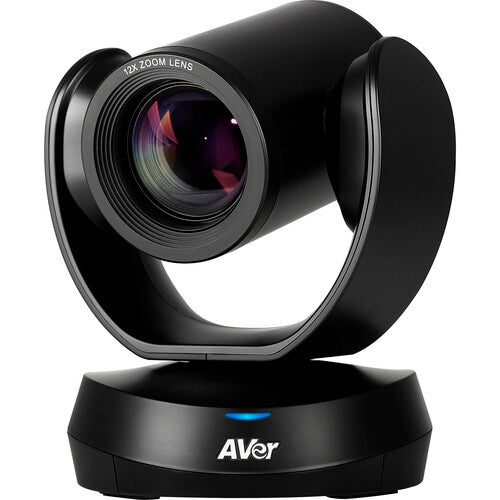

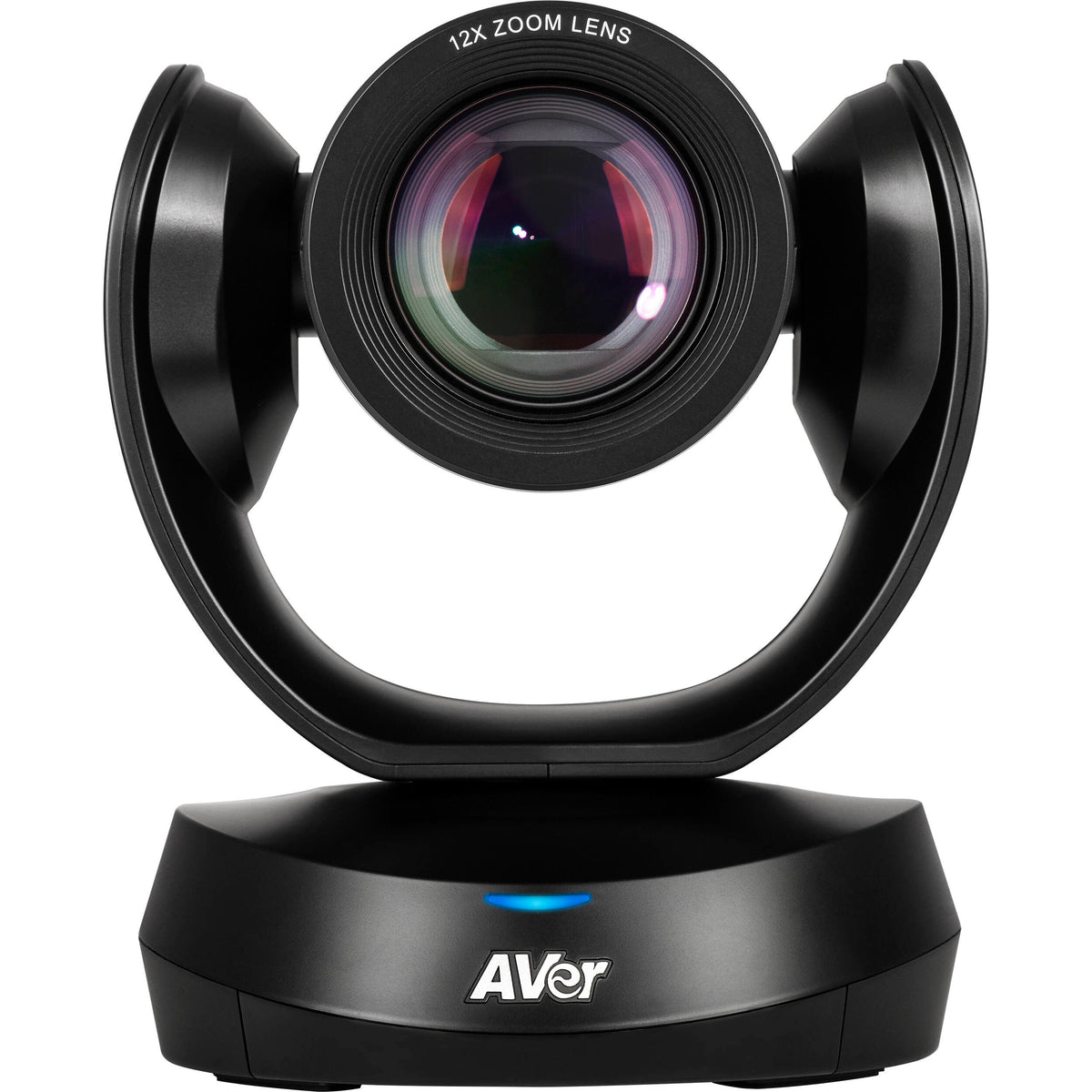

AVer CAM520 Pro3 Professional Conference Camera

The AVer CAM520 Pro3 is a professional Full HD conference camera designed for medium to large meeting rooms, hybrid workspaces, classrooms, and corporate collaboration. Featuring Full HD 1080p resolution, 12x optical zoom, AI-powered SmartFrame technology, and auto-tracking, the CAM520 Pro3 ensures every participant stays clearly visible throughout your meetings. With USB plug-and-play connectivity, PoE+ support, and compatibility with leading video conferencing platforms, it delivers an exceptional conferencing experience with simple deployment and enterprise-grade management.

Crystal-Clear Full HD Video

Deliver professional-quality meetings with outstanding image clarity.

  • Full HD 1080p resolution at 60 fps
  • 2 Megapixel CMOS sensor
  • Sharp, natural color reproduction
  • Excellent low-light performance
  • Professional image processing

The CAM520 Pro3 captures vibrant, detailed video that enhances remote collaboration and creates a more engaging meeting experience.

Powerful 12x Optical Zoom

Bring every participant and presentation into focus.

  • 12x optical zoom
  • 18x total zoom
  • 84.5° wide-angle field of view
  • Fast autofocus
  • Distortion-free close-ups up to 60 feet away

Zoom in on whiteboards, documents, presenters, or meeting participants without sacrificing image quality.

AI SmartFrame & Auto-Tracking

Keep everyone perfectly framed automatically.

  • AI SmartFrame technology
  • Automatic participant framing
  • Facial detection
  • Body detection
  • Auto-tracking

Next-generation AI automatically detects meeting participants and adjusts the camera view so everyone remains visible—even in larger meeting spaces or when participants are wearing face coverings.

Plug-and-Play Simplicity

Start meetings in seconds.

  • USB 3.1 plug-and-play connectivity
  • Windows compatible
  • macOS compatible
  • Chromebook compatible
  • No additional drivers required

Simply connect a single USB cable to begin high-quality video conferencing with minimal setup.

Flexible Streaming & Connectivity

Support modern collaboration and live streaming workflows.

  • USB 3.1 output
  • LAN connectivity
  • RTSP streaming
  • RTMP streaming
  • H.264 video streaming

The CAM520 Pro3 supports simultaneous conferencing and live streaming, making it ideal for meetings, webinars, and online presentations.

Advanced Camera Controls

Customize every presentation with precision.

  • Pan, tilt, and zoom control
  • IR remote included
  • Store up to 10 camera presets
  • PTZApp software support
  • Image adjustment controls

Users can quickly reposition the camera and save frequently used viewing angles for effortless operation.

Professional Integration

Designed for enterprise AV environments.

  • RS-232 control
  • VISCA-over-IP support
  • UVC over USB
  • Third-party control system compatibility
  • PTZApp management software

The camera integrates easily into professional AV installations and enterprise conferencing systems.

Flexible Installation

Install virtually anywhere.

  • PoE+ (IEEE 802.3at) support
  • Desktop placement
  • Wall mount included
  • Tripod compatible
  • Kensington security slot

Power, network connectivity, and remote management can all be handled through a single PoE+ connection for cleaner installations.

Enterprise Device Management

Simplify administration across multiple locations.

  • Web-based remote management
  • USB virtualization
  • PoE+ management
  • Remote configuration
  • Easy firmware updates

IT administrators can remotely monitor and manage deployed cameras without needing physical access to each device.

Broad Platform Compatibility

Works with today's leading collaboration platforms.

  • Microsoft Teams
  • Zoom
  • Cisco Webex
  • Google Meet
  • Skype
  • BlueJeans
  • RTSP/RTMP streaming platforms

The CAM520 Pro3 integrates seamlessly with the most popular video conferencing and streaming platforms for flexible deployment.

AVer CAM520 Pro3 Conference Camera

SKU: COM520PR3 | UPC: 848090009394
Authorized Dealer Authorized AVer Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,439.99

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
AVer CAM520 Pro3 Conference Camera $1,439.99
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • Professional USB PTZ Conference Camera
  • 12X Optical Zoom
  • Full HD 1080p Resolution at 60fps
  • 1/2.8" Low-Light 2MP CMOS Image Sensor
  • 82° Wide Diagonal Field of View
  • USB Plug-and-Play (UVC 1.1)
  • H.264, MJPEG & YUV Video Formats

Best For

  • 🎓 Education
  • 🏢 Corporate Collaboration
  • ⛪ House of Worship
  • 🏛️ Government

Technical Details

Specifications

Resolution
HD 1080
Optical Zoom
12x
Pan Angle
±170°
Tilt Angle
+90° (up) -30° (down)
Power
AC 100V ~ 240V, 50/60 Hz
AVer CAM520 Pro2 Conference Camera
AVer

AVer CAM520 Pro3 Conference Camera

$1,439.99

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dd>
<ul>
<li>Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.</li>
<li>Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps</li>
<li>SmartFrame for automatic FOV adjustment to fit all participants</li>
<li>Smart Composition function offers great visibility for individual participant in the meeting room</li>
<li>Innovative Preset Framing: Follow presenter based on preset areas</li>
<li>WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions</li>
<li>Zoom: 36X* total zoom (12X optical zoom)</li>
<li>Field of view(D/H/V): 80.5°/72.8°/44.1°</li>
<li>Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)</li>
<li>Lens F#: 1.6 (wide) ~ 2.8 (tele)</li>
<li>Mirror, flip, AE, white balance: auto/manual override via PTZApp 2</li>
<li>Minimum focus distance: 1m</li>
<li>Standard tripod screw holes and Kensington slot</li>
<li>People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage</li>
</ul>
<small>*Please use PTZApp 2 to set up 36X zoom.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Motorized Pan &amp; Tilt Movement</dt>
<dd>
<ul>
<li>Pan: ±170°</li>
<li>Tilt: +90° (up) -30° (down)</li>
<li>10 camera presets (via remote control)</li>
<li>Fast and quiet pan &amp; tilt movement</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Video Format</dt>
<dd>
<ul>
<li>YUV, YUY2, MJPEG</li>
<li>Network video compression format: H.264</li>
<li>Network protocol: RTSP, RTMP</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Control</dt>
<dd>
<ul>
<li>IR remote control</li>
<li>VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)</li>
<li>Remote side: VISCA over IP, IP (RJ45)</li>
<li>UVC plug and play</li>
<li>WebUI: Browser IP access via Chrome (Does not support Internet Explorer)</li>
<li>PTZApp 2</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>

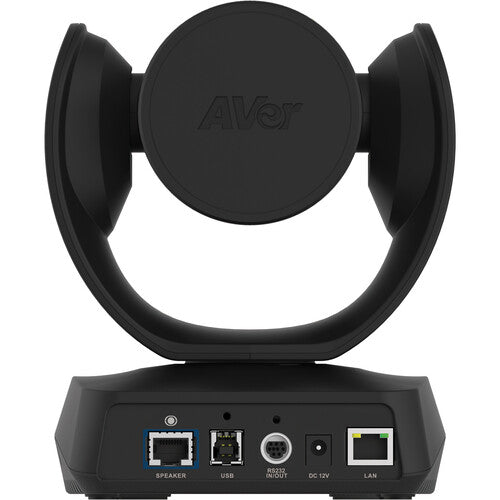

<dt>Connectivity</dt>
<dd>
<ul>
<li>12V/2A power adaptor</li>
<li>Mini DIN9 for RS232 in &amp; out connection (VISCA, control panel and camera daisy chain)</li>
<li>USB 3.1 type-B</li>
<li>IP (RJ45)</li>
<li>HDMI 1.4</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>USB</dt>
<dd>
<ul>
<li>3.1 Gen 1 Type-B, backward compatible with USB 2.0</li>
<li>UVC 1.1 (USB video), UVC1.5*</li>
</ul>
<small>* UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Mount</dt>
<dd>
<ul>
<li>Camera wall-mount bracket included</li>
<li>Optional foldable TV mount</li>
<li>Optional ceiling mount</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>System Requirements</dt>
<dd>
<ul>
<li>Windows® 7/10/11</li>
<li>Mac OS X 10.14 or later</li>
<li>Google Chromebox 3 version 94.0.4606.114 or later</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>PC Hardware Requirement</dt>
<dd>
<ul>
<li>3.2 GHz Intel® Core™ i5-4460 processor</li>
<li>8 GB RAM or more</li>
<li>USB 3.1 port , backward compatible with USB2.0 port</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Environmental Data</dt>
<dd>
<ul>
<li>Operation temperature: 0 ~ 40°C</li>
<li>Operation humidity: 20% ~ 80%</li>
<li>Storage temperature: -20 ~ 60°C</li>
<li>Storage humidity: 20% ~ 80%</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Dimensions</dt>
<dd>
<ul>
<li>Package dimensions: 256 x 256 x 274 mm</li>
<li>Package weight: 3.335 kg/7.35 lbs</li>
<li>Camera: 182 x 142.7 x 153 mm/1.47 kg</li>
<li>Remote control: 200 x 50 x 21 mm/0.09 kg</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Optional Accessories</dt>
<dd>
<ul>
<li>Mini DIN8 to D-SUB9 RS232 adapter</li>
<li>USB3.1 fiber extender 10m/20m/30m</li>
<li>USB3.1, 3m type-B to type-A cable</li>
<li>HDMI Cable</li>
<li>Ceiling mount</li>
<li>1-Port POE+ Injector</li>
<li>Foldable TV mount</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Web page browser requirement</dt>
<dd>
<ul>
<li>Chrome: version 76.x or above</li>
<li>Firefox: version 69 or above</li>
<li>IE: Not support</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Power Supply</dt>
<dd>
<ul>
<li>AC 100V ~ 240V, 50/60 Hz</li>
<li>Consumption: 12V, 2A</li>
<li>PoE+: 802.3at</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Free Applications for Meeting Collaboration <small>(Windows® and Mac®)</small></dt>
<dd>
<ul>
<li class="title"><strong>EZManager 2: Camera Central Management software</strong></li>
<li>Remotely manage group FW/SW updates, camera control, and settings</li>
<li class="title"><strong>PTZApp 2</strong></li>
<li>Support Virtual Streaming function.</li>
<li>Smart gallery*/Virtual USB streaming/ Preset Link</li>
<li>Upgrade firmware automatically or manually</li>
<li>Control camera</li>
<li>Set parameters and adjust camera image</li>
<li>Diagnose operating status</li>
<li>View live video</li>
<li class="title"><strong>EZLive</strong></li>
<li>Annotating / Image capturing / Video recording</li>
</ul>
<small>*Will be supported in future update</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Package Contents</dt>
<dd>
<ul>
<li>CAM520 Pro3 unit</li>
<li>Remote control</li>
<li>5m, USB2.0 type-B to type-A cable</li>
<li>Power adapter (10 ft/3 m)</li>
<li>QR code card</li>
<li>Wall-mount bracket</li>
<li>¼” tripod screw</li>
<li>Mini DIN9 to mini DIN8 RS232 adapter</li>
</ul>
<small></small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Warranty</dt>
<dd>
<ul>
<li>Camera: 3 years*</li>
<li>Accessories: 1 year</li>
</ul>
<small>*We offer an optional 2-year extended warranty in Europe. Please contact your local supplier for details.</small></dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Compatible Applications</dt>
<dd>
<ul>
<li>Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco WebEx®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit</li>
</ul>
</dd>
</dl>
</li>
</ul>
</dt>
</dl>
</li>
</ul>

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

Sony super-low-light 8M pixel sensor

N/A

Resolution

HD 1080

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

1 x Mini-DIN 9-Pin (RS-232, UVC 1.5) Input

N/A

Focal Length

3.9 to 47.3mm

N/A

Minimum Object Distance

Wide: 4.9' / 1.5 m

N/A

Pan Angle

±170°

N/A

Tilt Angle

+90° (up) -30° (down)

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

32 to 104°F / 0 to 40°C

N/A

Power

AC 100V ~ 240V, 50/60 Hz

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

12x

N/A

TAA Compliant

N/A
View product

EXPERT AV HELP

Need Help Choosing the Right AV Solution?

Our AV specialists can help with product selection, system compatibility, project pricing and complete solutions for commercial, education and government applications.

Speak With an AV Expert Request a Quote
