Name: AVer CAM520 Pro3 Conference Camera
Brand: AVer
SKU: COM520PR3
Price: 1249.0 USD
Availability: InStock

General

<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dd>
<ul>
<li>Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.</li>
<li>Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps</li>
<li>SmartFrame for automatic FOV adjustment to fit all participants</li>
<li>Smart Composition function offers great visibility for individual participant in the meeting room</li>
<li>Innovative Preset Framing: Follow presenter based on preset areas</li>
<li>WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions</li>
<li>Zoom: 36X* total zoom (12X optical zoom)</li>
<li>Field of view(D/H/V): 80.5°/72.8°/44.1°</li>
<li>Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)</li>
<li>Lens F#: 1.6 (wide) ~ 2.8 (tele)</li>
<li>Mirror, flip, AE, white balance: auto/manual override via PTZApp 2</li>
<li>Minimum focus distance: 1m</li>
<li>Standard tripod screw holes and Kensington slot</li>
<li>People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage</li>
</ul>
*Please use PTZApp 2 to set up 36X zoom.</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Motorized Pan & Tilt Movement</dt>
<dd>
<ul>
<li>Pan: ±170°</li>
<li>Tilt: +90° (up) -30° (down)</li>
<li>10 camera presets (via remote control)</li>
<li>Fast and quiet pan & tilt movement</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Video Format</dt>
<dd>
<ul>
<li>YUV, YUY2, MJPEG</li>
<li>Network video compression format: H.264</li>
<li>Network protocol: RTSP, RTMP</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Control</dt>
<dd>
<ul>
<li>IR remote control</li>
<li>VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)</li>
<li>Remote side: VISCA over IP, IP (RJ45)</li>
<li>UVC plug and play</li>
<li>WebUI: Browser IP access via Chrome (Does not support Internet Explorer)</li>
<li>PTZApp 2</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>

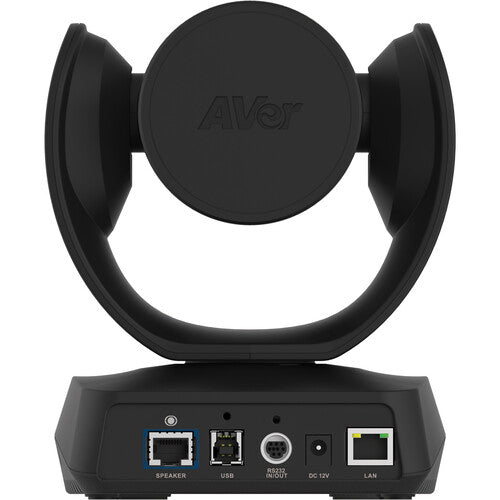

<dt>Connectivity</dt>
<dd>
<ul>
<li>12V/2A power adaptor</li>
<li>Mini DIN9 for RS232 in & out connection (VISCA, control panel and camera daisy chain)</li>
<li>USB 3.1 type-B</li>
<li>IP (RJ45)</li>
<li>HDMI 1.4</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>USB</dt>
<dd>
<ul>
<li>3.1 Gen 1 Type-B, backward compatible with USB 2.0</li>
<li>UVC 1.1 (USB video), UVC1.5*</li>
</ul>
* UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Mount</dt>
<dd>
<ul>
<li>Camera wall-mount bracket included</li>
<li>Optional foldable TV mount</li>
<li>Optional ceiling mount</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>System Requirements</dt>
<dd>
<ul>
<li>Windows® 7/10/11</li>
<li>Mac OS X 10.14 or later</li>
<li>Google Chromebox 3 version 94.0.4606.114 or later</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>PC Hardware Requirement</dt>
<dd>
<ul>
<li>3.2 GHz Intel® Core™ i5-4460 processor</li>
<li>8 GB RAM or more</li>
<li>USB 3.1 port , backward compatible with USB2.0 port</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Environmental Data</dt>
<dd>
<ul>
<li>Operation temperature: 0 ~ 40°C</li>
<li>Operation humidity: 20% ~ 80%</li>
<li>Storage temperature: -20 ~ 60°C</li>
<li>Storage humidity: 20% ~ 80%</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Dimensions</dt>
<dd>
<ul>
<li>Package dimensions: 256 x 256 x 274 mm</li>
<li>Package weight: 3.335 kg/7.35 lbs</li>
<li>Camera: 182 x 142.7 x 153 mm/1.47 kg</li>
<li>Remote control: 200 x 50 x 21 mm/0.09 kg</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Optional Accessories</dt>
<dd>
<ul>
<li>Mini DIN8 to D-SUB9 RS232 adapter</li>
<li>USB3.1 fiber extender 10m/20m/30m</li>
<li>USB3.1, 3m type-B to type-A cable</li>
<li>HDMI Cable</li>
<li>Ceiling mount</li>
<li>1-Port POE+ Injector</li>
<li>Foldable TV mount</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Web page browser requirement</dt>
<dd>
<ul>
<li>Chrome: version 76.x or above</li>
<li>Firefox: version 69 or above</li>
<li>IE: Not support</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Power Supply</dt>
<dd>
<ul>
<li>AC 100V ~ 240V, 50/60 Hz</li>
<li>Consumption: 12V, 2A</li>
<li>PoE+: 802.3at</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Free Applications for Meeting Collaboration (Windows® and Mac®)</dt>
<dd>
<ul>
<li class="title">EZManager 2: Camera Central Management software</li>
<li>Remotely manage group FW/SW updates, camera control, and settings</li>
<li class="title">PTZApp 2</li>
<li>Support Virtual Streaming function.</li>
<li>Smart gallery*/Virtual USB streaming/ Preset Link</li>
<li>Upgrade firmware automatically or manually</li>
<li>Control camera</li>
<li>Set parameters and adjust camera image</li>
<li>Diagnose operating status</li>
<li>View live video</li>
<li class="title">EZLive</li>
<li>Annotating / Image capturing / Video recording</li>
</ul>
*Will be supported in future update</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Package Contents</dt>
<dd>
<ul>
<li>CAM520 Pro3 unit</li>
<li>Remote control</li>
<li>5m, USB2.0 type-B to type-A cable</li>
<li>Power adapter (10 ft/3 m)</li>
<li>QR code card</li>
<li>Wall-mount bracket</li>
<li>¼” tripod screw</li>
<li>Mini DIN9 to mini DIN8 RS232 adapter</li>
</ul>
</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Warranty</dt>
<dd>
<ul>
<li>Camera: 3 years*</li>
<li>Accessories: 1 year</li>
</ul>
*We offer an optional 2-year extended warranty in Europe. Please contact your local supplier for details.</dd>
</dl>
</li>
</ul>
<ul class="masonry-list grid-item">
<li class="description">
<dl>
<dt>Compatible Applications</dt>
<dd>
<ul>
<li>Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco WebEx®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit</li>
</ul>
</dd>
</dl>
</li>
</ul>
</dt>
</dl>
</li>
</ul>

Sensor

Sony super-low-light 8M pixel sensor

Resolution

HD 1080

Camera Control

1 x Mini-DIN 9-Pin (RS-232, UVC 1.5) Input

Focal Length

3.9 to 47.3mm

Minimum Object Distance

Wide: 4.9' / 1.5 m

Pan Angle

±170°

Tilt Angle

+90° (up) -30° (down)

Operating Temperature

32 to 104°F / 0 to 40°C

Power

AC 100V ~ 240V, 50/60 Hz

Optical Zoom

12x

AVer CAM520 Pro3 Conference Camera

AVer CAM520 Pro3 Conference Camera: Unleashing Enhanced Meeting Experiences

Crystal-Clear 1080p Image Quality

Plug-and-Play Operation

Versatile Compatibility

Advanced Camera Features

Remote Control Convenience

Customizable Control Options

Flexible Mounting Options

Present Every Detail with 18x Total Zoom

Improved SmartFrame Technology

Advanced Camera Management
