Key Features
- WUXGA 1920x1200 Native Resolution
- 5000 ANSI Lumens Brightness
- 0.8 Short-Throw Ratio
- Short-Throw Laser Projection
- Built-In HDBaseT Connectivity
Product Summary
- 5000 ANSI Lumens
- 1920 x 1200 WUXGA Resolution
- 20,000 hours life
- Portrait Mode Projection
- 5-year warranty
Bright and versatile for any professional installation, the ViewSonic® LS860WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 5,000 lumens of advanced high brightness, 300,000:1 contrast ratio, and up to 20,000 hours* of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms, houses of worship, and more. Thanks to SuperColor™ technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. This top-notch performer is also easy to deploy and manage with its vertical/horizontal keystone, 4-corner adjustment, and a vertical/horizontal lens shift feature that provides extreme flexibility in even the most challenging installations. A short throw lens with a 0.8 throw ratio offers large projection images for smaller rooms. Thanks to the built-in HDBT receiver, the projector is capable of receiving uncompressed HD video and audio from over 200 feet away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. The ViewSonic® LS860WU is the ideal WUXGA laser projector for professional installations, large venues, and business and education environments. *Light source life may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
One-wire HDBT® Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
360-degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or mount the projector upside-down at a 45-degree angle if need be.
Portrait Mode Projection
This projector can be placed in a vertical position and project images in portrait orientation.
Large Images in Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector’s light source is closer to the projection surface.
Extreme Mounting Flexibility
A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.
Horizontal and Vertical Keystone Correction
Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.
Peace of Mind
ViewSonic offers one of the industry's best overall projector warranties with 5-year (or 20,000 hours) limited parts, labor, and light source. This includes first year free Express Exchange service* for an added value worth up to $150
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
Reduced Input Latency
This projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.

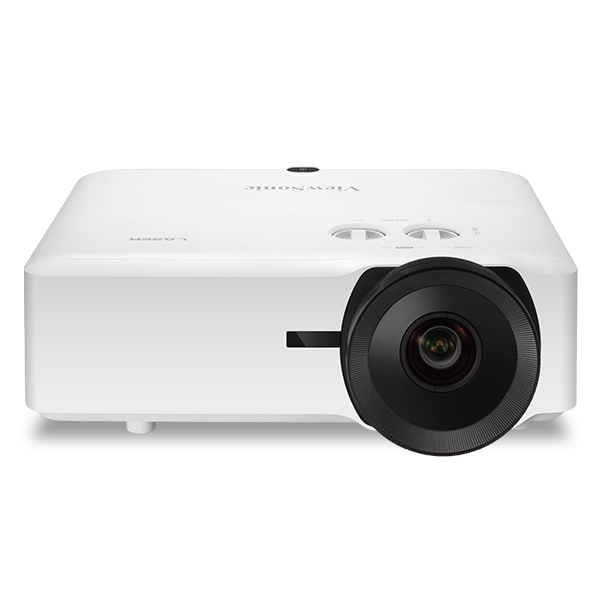

ViewSonic LS860WU WUXGA DLP Conference Room Laser Short-Throw Projector
Authorized Dealer
Authorized
ViewSonic
Dealer
Manufacturer Warranty
Authorized dealer coverage
Expert Support
Pre- and post-sale assistance
$4,499.99
BACK 2 SCHOOL SALE | additional discount in cart
ViewSonic LS860WU WUXGA DLP Conference Room Laser Short-Throw Projector
$4,499.99
In Stock
Current availability for this model
Free Ground Shipping
On qualifying orders to the lower 48 states
Project & Volume Pricing
Special pricing available for larger orders
Education & Government Purchase Orders
Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available
Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Product Description
- 5000 ANSI Lumens
- 1920 x 1200 WUXGA Resolution
- 20,000 hours life
- Portrait Mode Projection
- 5-year warranty
Bright and versatile for any professional installation, the ViewSonic® LS860WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 5,000 lumens of advanced high brightness, 300,000:1 contrast ratio, and up to 20,000 hours* of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms, houses of worship, and more. Thanks to SuperColor™ technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. This top-notch performer is also easy to deploy and manage with its vertical/horizontal keystone, 4-corner adjustment, and a vertical/horizontal lens shift feature that provides extreme flexibility in even the most challenging installations. A short throw lens with a 0.8 throw ratio offers large projection images for smaller rooms. Thanks to the built-in HDBT receiver, the projector is capable of receiving uncompressed HD video and audio from over 200 feet away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. The ViewSonic® LS860WU is the ideal WUXGA laser projector for professional installations, large venues, and business and education environments. *Light source life may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
One-wire HDBT® Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
360-degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or mount the projector upside-down at a 45-degree angle if need be.
Portrait Mode Projection
This projector can be placed in a vertical position and project images in portrait orientation.
Large Images in Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector’s light source is closer to the projection surface.
Extreme Mounting Flexibility
A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.
Horizontal and Vertical Keystone Correction
Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.
Peace of Mind
ViewSonic offers one of the industry's best overall projector warranties with 5-year (or 20,000 hours) limited parts, labor, and light source. This includes first year free Express Exchange service* for an added value worth up to $150
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
Reduced Input Latency
This projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.
Technical Details
Specifications
Lumens (ANSI)
5000 ANSI Lumens
Native Resolution
1920 x 1200
Display Technology
DLP
Contrast Ratio
3,000,000:1
Aspect Ratio
16:10 (WUXGA)
Throw Distance
3.8' - 11.5'
Image Size Diagonal
59.62" - 200.04"
Lens
Std. Zoom Lens: 1.10:1 Std. Lens Focus: Manual
Lens Shift
Horizontal & Vertical
Digital Keystone
Horizontal & Vertical
Short Throw
Yes
Inputs
• Composite (RCA), S-Video, VGA In (Dsub-15pin), Network (RJ-45), USB,RS232 (DB-9pin),HDMI 1.4, HDMI 1.4, Audio In (Mini Jack), Audio In (RCA)
Outputs
• VGA Out (Dsub-15pin),Audio Out (Mini Jack),
Wireless Networking
No
Speakers
10.0 W x 2 Mono
Lamp Life
20,000 hrs
Projector Methods
Front, Rear, Ceiling Mount, Table Top
Dimensions (W × D × H)
5.70" x 15.90" x 12.00"
Unit Weight
14.6 lbs
