Product Summary


  • Routing Switcher

  • 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs

  • Supports SD, HD, Ultra HD 4K, DCI 4K

  • 4:2:2 and 4:4:4 Sampling

  • 10-Bit Processing

  • SDI Reclocking

  • Built-In LCD with Spin Knob Control

  • Push Buttons on Front Panel

  • Ethernet for Remote Control

  • Videohub Control Software Included



  • 12x 6G-SDI inputs / 12x 6G-SDI outputs

  • Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards

  • Built-in SDI reclocking on every SDI input

  • Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals

  • 4:2:2 or 4:4:4 color sampling with 10-bit processing

  • UHD 4K (3840 x 2160) up to 30p

  • Supports DCI 4K (4096 x 2160) at 24p

  • HD Video Resolutions up to 1080p60

  • Supports 16 channels of embedded audio on each SDI signal

  • Genlock

  • Reference input compatible with black burst and tri-sync

  • Built-in video monitoring and spin knob control

  • Push buttons on front panel

  • On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more

  • Videohub control software included for control over Ethernet

  • Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels

  • Apple iPad control panel app available

  • Create your own custom router control with free software developer kit

  • Machined aluminum 1RU chassis

  • IEC power cable required

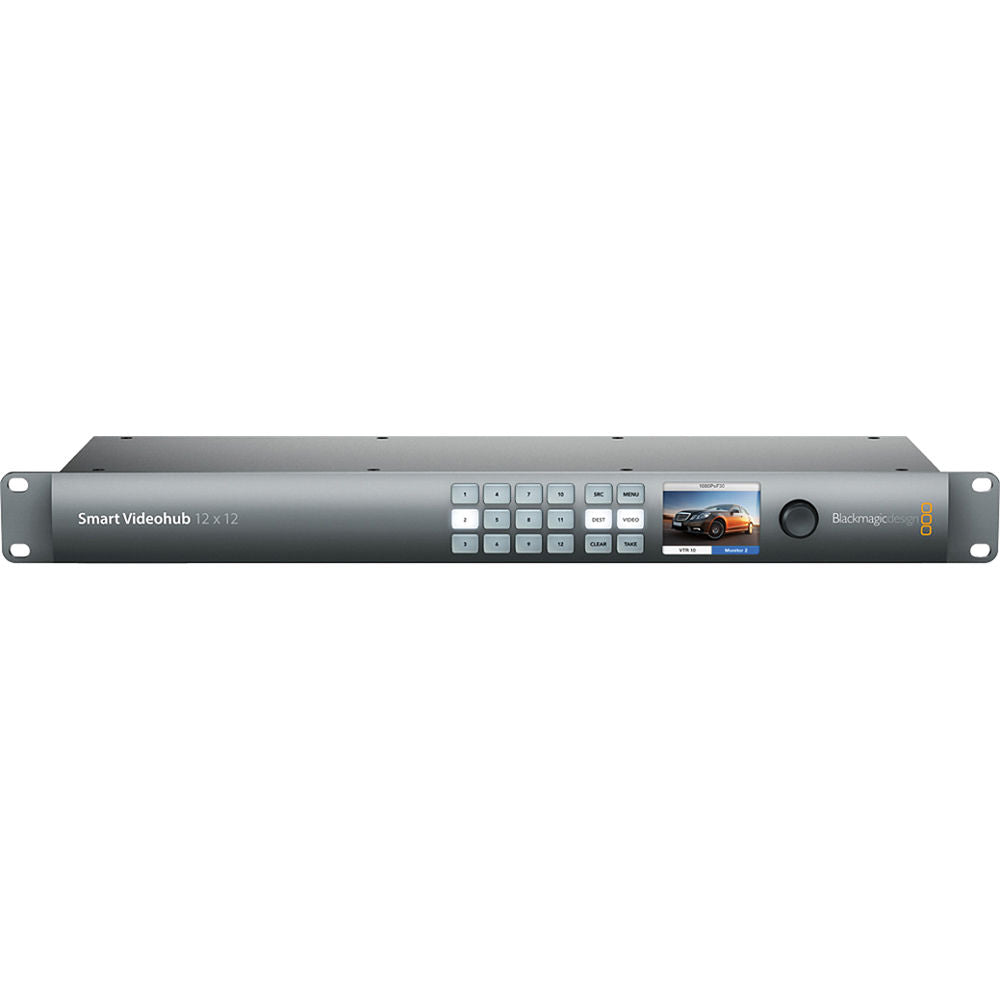

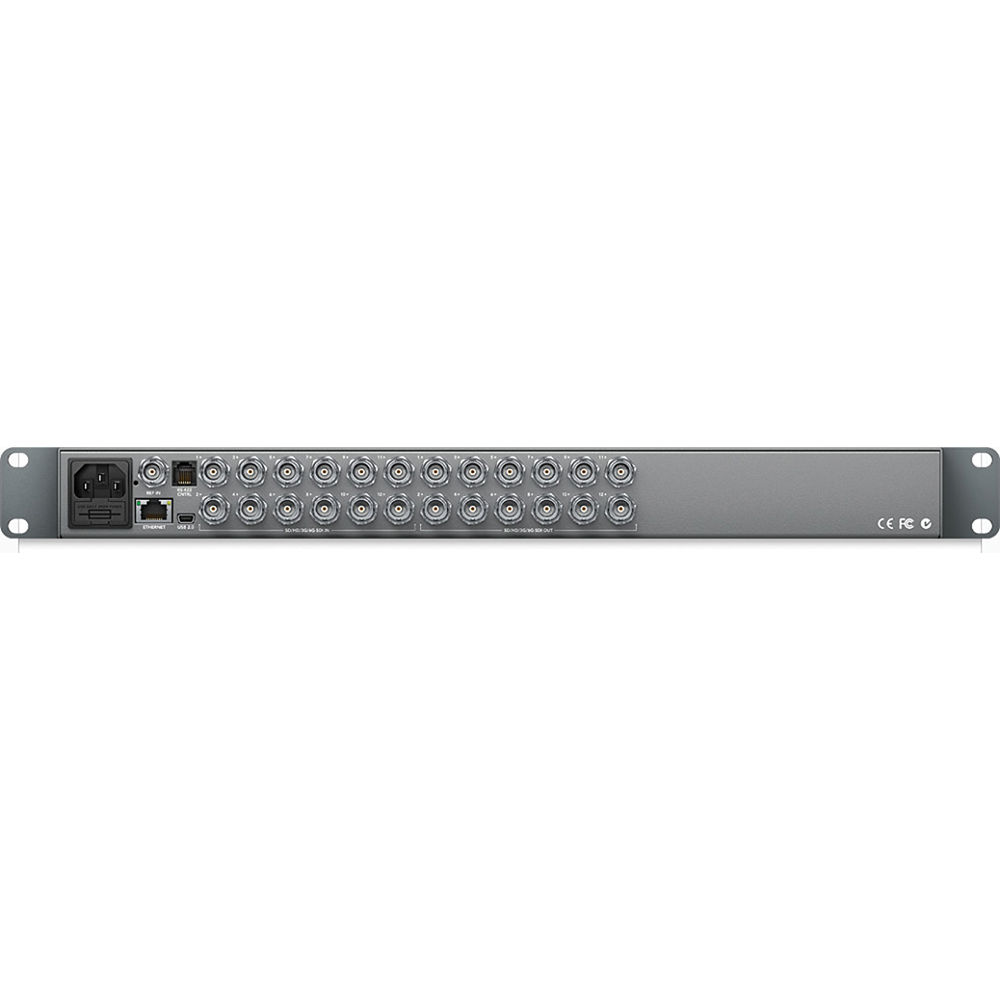

The Smart Videohub 12 x 12 6G-SDI from Blackmagic Design is a mixed format router with 12 6G-SDI inputs and 12 6G-SDI outputs for routing any combination of SD, HD, Ultra HD 4K, and DCI 4K video. It supports 4:2:2 and 4:4:4 color sampling and 10-bit processing for smoother gradations. Housed in a 1RU frame, the Smart Videohub ideal for use in both large broadcast systems or portable mini racks for live productions. A built-in LCD lets view your sources directly on the router itself, with simple push buttons and spin knob provided for control. Routing can also be controlled using dedicated remote panels or over Ethernet using the included software for Mac OS X and Windows. You can even use the available iPad app to change routing over your wireless network.

Note: IEC power cable is not included.

Blackmagic Design Smart Videohub 12 x 12 6G-SDI VHUBSMART6G1212

SKU: VHUBSMART6G1212 | UPC: 9338716002652
Authorized Dealer Authorized Black Magic Design Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$1,395.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Blackmagic Design Smart Videohub 12 x 12 6G-SDI VHUBSMART6G1212 $1,395.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_22p_DbxsLr4MV-m3EOA_5T">\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Routing Switcher</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Supports SD, HD, Ultra HD 4K, DCI 4K</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">4:2:2 and 4:4:4 Sampling</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">10-Bit Processing</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">SDI Reclocking</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Built-In LCD with Spin Knob Control</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Push Buttons on Front Panel</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Ethernet for Remote Control</li>\n <li class="listItem_1k-sWDbEV5fQJj1k-1SEFn" data-selenium="sellingPointsListItem">Videohub Control Software Included</li>\n</ul>
Blackmagic Design Smart Videohub 12 x 12 6G-SDI VHUBSMART6G1212
Black Magic Design

Blackmagic Design Smart Videohub 12 x 12 6G-SDI VHUBSMART6G1212

$1,395.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Display</strong> LCD for video and menu settings
<strong>Power Supply</strong> IEC power cable required
90 to 240 VAC input
<strong>Power Fail Protection</strong> Router connections preserved and restored instantly at power on
<strong>Operating Temperature</strong> 32 to 104°F (0 to 40°C)
<strong>Storage Temperature</strong> -4 to 113°F (-20 to 45°C)
<strong>Relative Humidity</strong> 0 to 90% non-condensing
<strong>Rack Space</strong> 1 RU
<strong>Dimensions (W x H x D)</strong> 19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm)
<strong>Weight</strong> 4.14 lb (1.88 kg)
