Product Summary

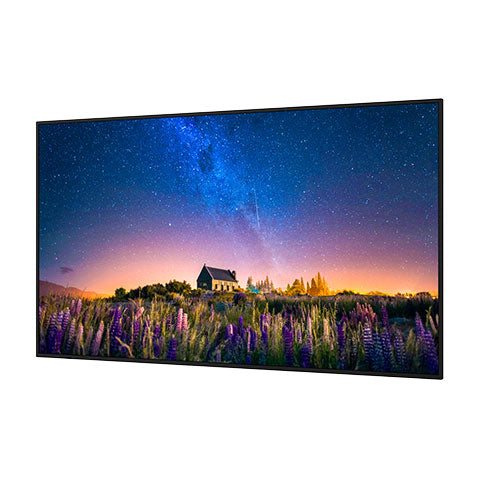

Buy Sharp PN-M652 65” UHD 4K Commercial Monitor


The Sharp PN-M652 is a professional UHD 4K digital signage display designed for corporate offices, retail stores, restaurants, and higher-education environments. Featuring a 550-nit factory-calibrated anti-glare panel, the display produces bright, clear visuals ideal for indoor signage and professional presentations.

Built with a rugged full-metal chassis and 24/7 operation capability, the PN-M652 ensures reliable performance in demanding commercial environments. With extensive connectivity, daisy-chain support, and centralized management tools, it is well suited for both single-display installations and large multi-screen signage networks.

What Is the Sharp PN-M652 65” 4K Commercial Display?

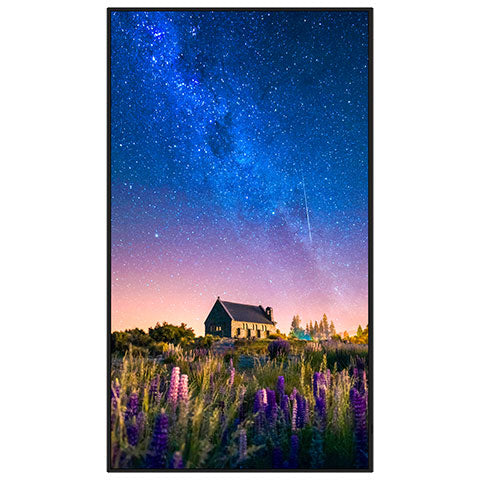

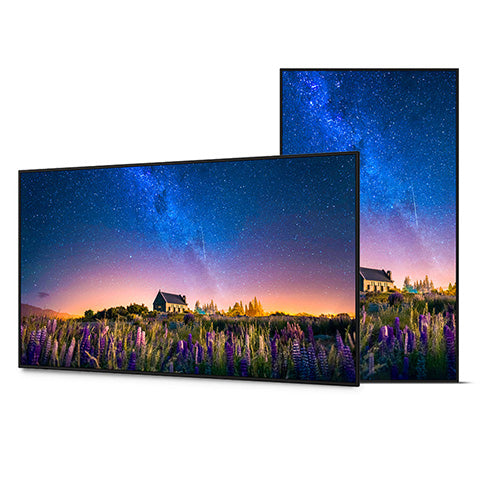

The Sharp PN-M652 is a 65-inch UHD 4K commercial monitor designed for digital signage and business communication environments. It supports both portrait and landscape orientation and includes a built-in media player for USB playback.

Its commercial-grade construction and factory color calibration ensure dependable operation and consistent image quality across professional display networks.

Who Is the Sharp PN-M652 Designed For?

This display is ideal for:

  • Retail stores and shopping centers
  • Restaurant menu boards
  • Corporate offices and meeting spaces
  • Universities and educational campuses
  • Grocery stores and public information displays
  • Multi-display digital signage networks

It is engineered for organizations that require reliable, high-brightness displays for professional communication and signage.

Why Choose the Sharp PN-M652 Over Standard Commercial Displays?

Key advantages include:

  • 65” UHD 4K resolution (3840 × 2160)
  • 550-nit brightness with anti-glare panel
  • SpectraView Engine factory calibration
  • 24/7 continuous operation capability
  • Portrait and landscape mounting support
  • Integrated USB media player

These features provide strong visual performance and dependable operation for professional signage environments.

SpectraView Engine for Accurate Color Performance

The PN-M652 features SpectraView Engine Technology, delivering accurate and consistent color performance immediately after installation.

Factory calibration includes:

  • Precise luminance calibration
  • White point adjustment
  • Gamma correction
  • Panel uniformity optimization

Advanced controls allow further fine-tuning of brightness and color coordinates, while backlight stabilization keeps visuals consistent over time.

Daisy-Chaining and Multi-Display Synchronization

DisplayPort 1.4 with Multi-Stream Transport (MST) enables multiple displays to be driven from a single video source.

Capabilities include:

  • Up to four independent displays from one source
  • Ideal for menu boards and video walls
  • Simplified multi-display installations

LAN daisy-chaining also allows centralized remote control of multiple displays across a network.

USB-C Connectivity and Integrated USB Hub

The PN-M652 includes a versatile USB-C connection designed to simplify installation and device connectivity.

USB-C features include:

  • DisplayPort Alt Mode video input
  • Data transfer
  • Peripheral connectivity through integrated USB hub
  • 65W power delivery for charging laptops

Two additional downstream ports (USB-A and USB-C) allow connection of accessories and peripherals.

Commercial-Grade Durability

Designed for demanding environments, the display features a full-metal chassis with active cooling.

Durability features include:

  • Integrated temperature sensors
  • Stable brightness under extended use
  • Carrying handles for easier installation

These features ensure reliable performance in high-traffic commercial environments.

Modular Expansion for Intelligent Signage

The PN-M Series supports integrated computing modules for advanced signage solutions.

Compatible modules include:

  • Intel Smart Display Modules (SDM-L / SDM-S)
  • Raspberry Pi Compute Module 4

This modular design allows the display to function as a complete digital signage system without external devices.

Smart Input Detection and Automatic Switching

The display includes intelligent input prioritization.

Capabilities include:

  • Automatic switching between prioritized inputs
  • Wake-on-signal functionality
  • Automatic switching when new sources connect

This ensures uninterrupted content playback.

Centralized Display Management with NaViSet Administrator 2

NaViSet Administrator 2 enables administrators to manage multiple Sharp or NEC displays from a single dashboard.

Features include:

  • Remote device monitoring
  • Automated scheduling and configuration
  • System status reporting
  • Remote configuration changes

This tool is ideal for organizations managing multi-display installations.

Advanced Security and Network Features

The PN-M652 includes enterprise-grade security capabilities such as:

  • IEEE802.1x authentication
  • SSL/TLS browser control
  • LAN and USB port disabling
  • MAC/IP filtering

These features help protect corporate display networks.

Additional Performance Features

  • Built-in USB media player
  • HDMI 2.0, DisplayPort 1.4, and USB-C inputs
  • RS-232 and LAN control support
  • Crestron Connected V2 and AMX compatibility
  • HDR support via HDMI
  • ENERGY STAR 8.0 certified

Technical Highlights

  • Model: Sharp PN-M652
  • Screen Size: 65 Inches
  • Resolution: 3840 × 2160 UHD 4K
  • Brightness: 550 Nits
  • Operation: 24/7 Continuous Use
  • Orientation: Landscape & Portrait
  • Connectivity: HDMI 2.0, DisplayPort 1.4, USB-C, USB
  • Power Delivery: 65W via USB-C
  • Control: RS-232, LAN, SNMP
  • Certification: ENERGY STAR 8.0

Why Buy the Sharp PN-M652 from an Authorized Dealer?

Purchasing from an authorized dealer ensures:

  • Genuine Sharp commercial display hardware
  • Manufacturer warranty protection
  • Professional deployment assistance
  • Secure shipping for large displays
  • Support for digital signage installations

Trusted sourcing and expert support are essential for professional display deployments.

Sharp PN-M652 LCD 65" Message Large Format Display

SKU: PNM652 | UPC: 805736078626
Authorized Dealer Authorized NEC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$2,795.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Sharp PN-M652 LCD 65" Message Large Format Display $2,795.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Technical Details

Specifications

Screen Size
65"
Native Resolution
3840 x 2160
Brightness
550
Contrast Ratio
8000:1
Display Orientation
Portrait, landscape
Refresh Rate
60 hz
Response Time
8 ms
Viewing Angle
178 horizontal / 178 vertical
Inputs
• 1 x DisplayPort (with HDCP)
• 1 x USB-C (with HDCP, 65 W)
• 2 x HDMI (with HDCP)
Outputs
• 1 x DisplayPort (loop through: DisplayPort, USB-C)
• 1 x HDMI (loop through: HDMI, SDM slot-in PC)
Communication Port
1 x RS232; 2 x LAN 100Mbit; remote control wire (3,5mm jack)
NEC
