Product Summary

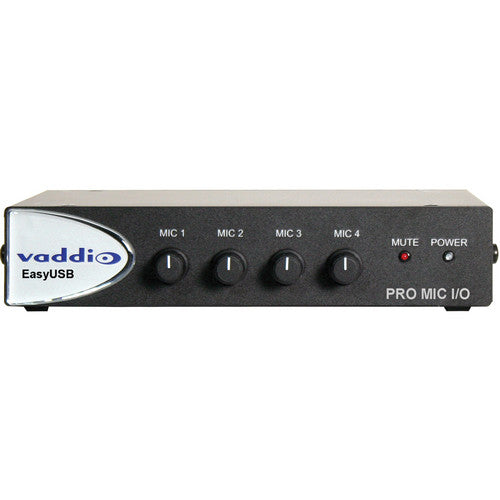

The EasyUSB PRO MIC I/O Interface from Vaddioallows you to use up to 4A/V microphones in a PC conferencing system with the EasyUSB Mixer/Amp (sold separately). The front panel controls allow you to easily set the desired gain on the connected microphones with the help of four knobs and two indicator LEDs.

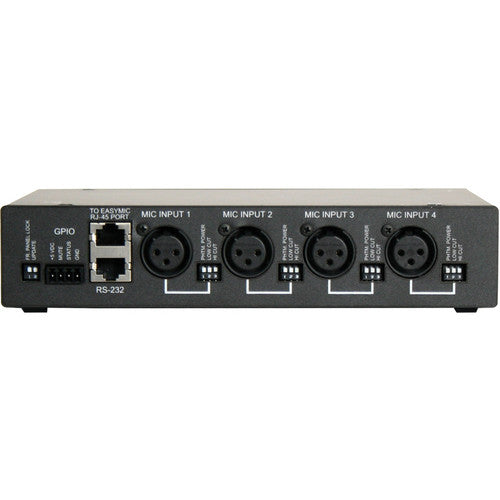

The Dip switches on the rear panel allow you to control functions such as the low or high cut filter, phantom power (per microphone), and GPIO for mute status. It also features front panel lock-out to protect the knobs from being tampered with.

The PRO MIC I/O features 3-pin female XLR connectors that allow you to connect table, gooseneck, or button microphones (sold separately). Each input channel incorporates an echo cancellation processing chain that is optimized for use with Unified Communications software applications such as Microsoft Lync, Cisco Jabber, Skype, WebEx, Vidyo, GoToMeeting, etc.

Vaddio EasyUSB PRO MIC I/O Interface 999-8520-000

SKU: 9998520000 | UPC: 169
Authorized Dealer Authorized Vaddio Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$855.90

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Vaddio EasyUSB PRO MIC I/O Interface 999-8520-000 $855.90
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Vaddio EasyUSB PRO MIC I O Interface 999-8520-000
Vaddio

Vaddio EasyUSB PRO MIC I/O Interface 999-8520-000

$855.90

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>Frequency Response:</strong>
20 Hz to 20 kHz

<strong>Dynamic Range :</strong>
&gt;90 dB

<strong>THD + Noise :</strong>
&lt; 0.02%

<strong>Microphone Input :</strong>
4 x XLR female balanced microphone inputs
48 VDC Phantom Power
Microphone Preamp-adjustable from 10 to 46 dB gain

<strong>Audio Processing</strong> :
Acoustical Echo Cancellation, Automatic Gain Control, Noise Reduction, Automatic Microphone Mixing, HP/LP Filters

<strong>User Controls :</strong>
Front Panel Rotatory Gain Controls, rear DIP Switches for audio processing and GPIO
Ports EasyMic Ports: 1 x RJ45 female proprietary interface (audio, power, &amp; control), Maximum CAT5 Cable Distance: 100.0' (30.5 m)
Control Port: RJ45 female Vaddio Std. RS-232 Pin-out for CAT5 cable

<strong>Operating Temperature:</strong>
32 to 104°F (0 to 40°C)
273.15 to 313.15 K

<strong>Relative Humidity:</strong>
20 to 80%

<strong>Dimensions (H x W x D): </strong>
1.7 x 8.4 x 6.0" (43.7 x 212.7 x 152.4 mm)

<strong>Weight:</strong>
1.4 lb (0.6 kg)
