Product Summary

The EasyUSB MicPOD I/O interface is based on Vaddio’s™ SmartMIC technology, a simple and less expensive approach to adding live audio conferencing to room designs. As an interface between the EasyMIC microphones and any professional audio mixer, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.

Each SmartMIC is equipped with an array of three electric condenser microphones positioned to form a 360-degree pickup pattern. This unique technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieve outstanding results.

The EasyUSB MicPOD I/O interface device allows the connection of up to four SmartMICs and because each input is effectively running three microphones on three different channels, users can technically run 12 microphones all with independent echo cancellation and internal DSP. For installations requiring more than 12 SmartMICs, just add an additional EasyUSB MicPOD I/O for 12 more channels.

Vaddio EasyUSB MicPOD I/O Interface 999-8535-000

SKU: 9998535000 | UPC: 840077501884
Authorized Dealer Authorized Vaddio Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$801.90

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Vaddio EasyUSB MicPOD I/O Interface 999-8535-000 $801.90
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Vaddio EasyUSB MicPOD I O Interface 999-8535-000
Vaddio

Vaddio EasyUSB MicPOD I/O Interface 999-8535-000

$801.90

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

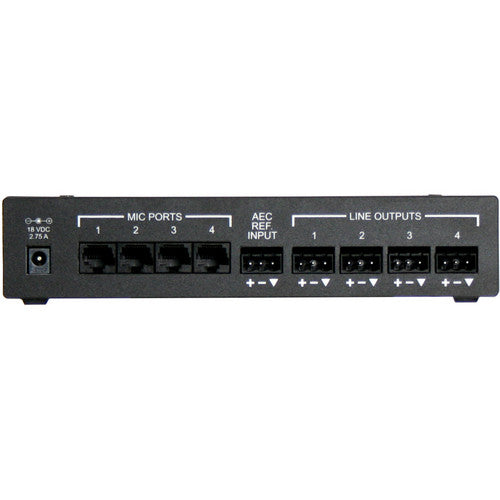

<strong>Frequency Response :</strong>

20 Hz to 20 kHz
<strong>Dynamic Range :</strong>

&gt;90 dB
<strong>Line Outputs :</strong>

4 x 3-pin Phoenix
<strong>Reference Input:</strong>

AEC: 1 x 3-pin Phoenix
<strong>Mic Inputs :</strong>

4 x RJ45F TRIO proprietary
<strong>Power Supply :</strong>

18 VDC, 2.75 A
<strong>Operating Temperature :</strong>

32 to 104°F (0 to 40°C)
20 to 80% RH
<strong>Dimensions (W x H x D)</strong> :

8.4 x 1.7 x 6.0" (21.3 x 4.3 x 15.2 cm)
Weight 1.45 lb (657.7 g)
