Product Summary

The Optoma GB-200+ is a powerful and intuitive image blending and warping processor that provides the ability to merge overlapping edges of two or more projectors. The GB-200+ has added auto stacking along with auto blending using a compatible (not included) camera and Auto Warp software (included with GB-200+).

The Auto Warp software provides the ability to auto blend on flat and curved surfaces up to six projectors with a maximum resolution of 1920x1200 pixels per projector, providing a horizontal display of around 10k pixels across the screen depending on the overlap area.

Optoma’s GB-200+ provides the ability to pre-cut a single image to form a seamless picture of up to a 2x2 projection array, making your installation quicker and easier. More complex arrays are not a barrier for the GB-200+, they can be done with the help of a multi-output graphic card.

Resolutions including XGA, WXGA, 1080p and WUXGA are supported via VGA, DVI, and HDMI connections. Color, black level, and gamma correction are engaged to compensate for the challenges faced when blending projectors.

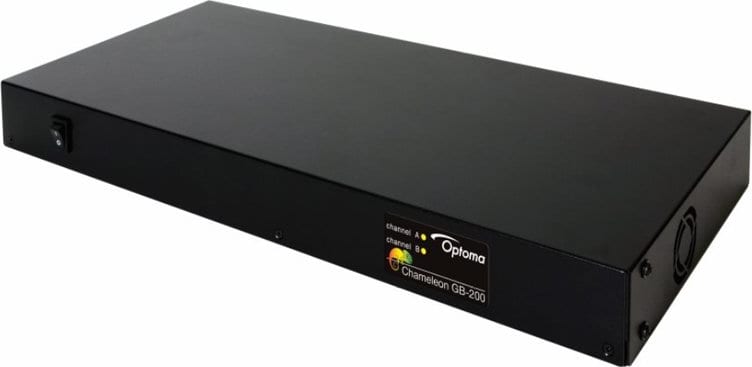

Optoma GB-200+ - Image Blending and Warping Processor

SKU: GB200+
Authorized Dealer Authorized Optoma Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$2,299.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Optoma GB-200+ - Image Blending and Warping Processor $2,299.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available
Optoma GB-200+ - Image Blending and Warping Processor
Optoma

Optoma GB-200+ - Image Blending and Warping Processor

$2,299.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

<strong>I/O Connectors</strong>
Power Switch
HDMI Input x 2, DVI-D x 2 (Supporting HDCP)
HDMI Output x 2, VGA Output x 2
Control Interface: LAN control x 2 ports, via LAN hub and
static IP address
RS-232 connection x 2 (For debugging only)
Power supply interface: DC 19V power port x1

Operating Noise 26 dB (typical) / 28 dB (Max )
Power Consumption AC 100 ~ 240V,50/60Hz / 32W -110VAC (Power Adapter)
Dimensions (W x D x H) 4300mm x 195mm x 44mm
Weight 4.3lbs
Auto-blending camera Logitech C920 Pro
USB Memory Stick GB-200 user manual, GB-200 manual blending software, Auto warp software

N/A

VESA Pattern

N/A

N/A

TAA Compliant

N/A

N/A

PDF Documents

N/A

N/A

Diagonal Size

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Sensor

N/A

N/A

Resolution

N/A

N/A

Signal Sysyetm

N/A

N/A

Signal To Noise Ratio

N/A

N/A

Gain

N/A

N/A

Shutter Speed Range

N/A

N/A

Exposure Control

N/A

N/A

White Balance

N/A

N/A

Image Stabilization

N/A

N/A

Image Flip

N/A

N/A

ICR

N/A

N/A

Sync

N/A

N/A

Output

N/A

N/A

Audio Input

N/A

N/A

Audio

N/A

N/A

Camera Control

N/A

N/A

Focal Length

N/A

N/A

Minimum Object Distance

N/A

N/A

Pan Angle

N/A

N/A

Tilt Angle

N/A

N/A

Pan Speed

N/A

N/A

Tilt Speed

N/A

N/A

Presets

N/A

N/A

Operating Temperature

N/A

N/A

Power

N/A

N/A

Power Consumption

N/A

N/A

Minimum Illumination

N/A

N/A

Optical Zoom

N/A

N/A

TAA Compliant

N/A
