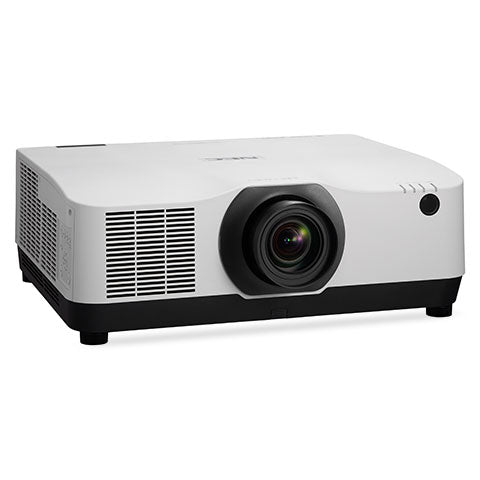

NEC NP-PA1004UL-W 10,000 Lumen LCD Laser Projector with 4K SUPPORT (White)

SKU: NPPA1004ULW  |  UPC: 805736072976
$14,795.00
In Stock · Free Shipping to Lower 48 States
Tax-Exempt & Purchase Orders Accepted
Bulk Pricing Available

Summer Sale | additional discount in cart

  • Manufacturer Warranty Included
  • Lifetime Technical Support from OfficeWonderland
  • No Sales Tax for Qualified Tax-Exempt Organizations
  • Purchase Orders Accepted (Net 30 Available)

Key Features

  • 💡 10,000 ANSI Lumens Brightness
  • 🎯 Native WUXGA Resolution (1920 × 1200)
  • 🖥️ 4K/60Hz Signal Input Support
  • 🎨 HDR10 Compatible
  • 🌈 BT.2020 Signal Support
  • 🔦 20,000-Hour Laser Light Source
  • 🧹 Sealed Filter-Free Optical Engine
  • 🔄 Interchangeable Lens System

Best For

🎓 Education 🏢 Corporate Collaboration ⛪ House of Worship 🏛️ Government 🎥 Large Venue / Auditoriums 🏛️ Museums / Exhibits

Purchase Orders & Tax-Exempt

We proudly support schools, universities, government agencies, and qualified businesses.

  • Net 30 Purchase Orders
  • Tax-Exempt Sales for Eligible Organizations
  • W-9 Available Upon Request
Request a Quote

  • Resolution 1920x1200

  • 3,000,000:1 dynamic contrast ratio

  • 9,000 ANSI Lumens

  • TileMatrix enables 4Kx2K resolution utilizing 4 projectors via the HDBaseT Repeater

  • 10,000 lumens in Boost mode


NEC's PA1004UL is a 10,000-lumen LCD laser projector (White cabinet) with advanced professional installation features for higher education and corporate users. A new sealed LCD cooling system developed for the PA Series installation projectors delivers a filter/maintenance free projector with while delivering almost whisper quiet operation. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities along with built-in edge blending and stacking. The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.

  • 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs

  • Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)

  • TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Repeater

  • Cinema Quality video processing/scaling creates life-like images

  • Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control

  • 10,000-lumen brightness enhances images for most applications

  • ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.


NEC

NEC NP-PA1004UL-W 10,000 Lumen LCD Laser Projector with 4K SUPPORT (White)

$14,795.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

23.6 x 8.5 x 19.3 in. / 599 x 216 x 490mm

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Content

N/A

N/A

Native Resolution

1920 x 1200

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

3,000,000:1

N/A

Throw Distance

2.5 to 68.5 ft. / 0.74 to 20.9m (Throw Ratio):0.8:1 Manual Fixed Lens , 1.16 – 1.56:1 Manual Zoom Lens w/lens shift , 1.46 – 3.02:1 Manual Zoom Lens w/lens shift , 2.90 – 4.79:1 Manual Zoom Lens w/lens shift , 4.59 – 7.02:1 Manual Zoom Lens w/lens shift , 0.32:1 Ultra-Short Throw Lens / 0.79 to 1.11:1 Motorized Zoom Lens / 1.30 to 3.02:1 Motorized Zoom Lens / 2.99 to 5.93:1 Motorized Zoom Lens

N/A

Lens

Zoom: Motorized Focus: Motorized F number, fnumber: (NP44ML-02LK) F=2.0, f= 6.27, (NP11FL) F= 2.3, f= 13.2mm, (NP12ZL) F= 2.2 to 2.69, f= 19.4 to 25.3mm, (NP13ZL) F= 1.7 to 2.37, f= 24.2 to 48.6mm, (NP14ZL) F= 2.2 to 2.64, f= 48.5 to 77.6mm, (NP15ZL) F=2.2 to 2.7, f= 76.6 to 116.5mm, (NP40ZL) F=2.0 to 2.5, f= 13.3 to 18.6mm, (NP41ZL) F=1.7 to 2.0, f= 21.8 to 49.8mm, (NP43ZL) F=2.2 to 2.6, f= 49.7 to 99.8mm

N/A

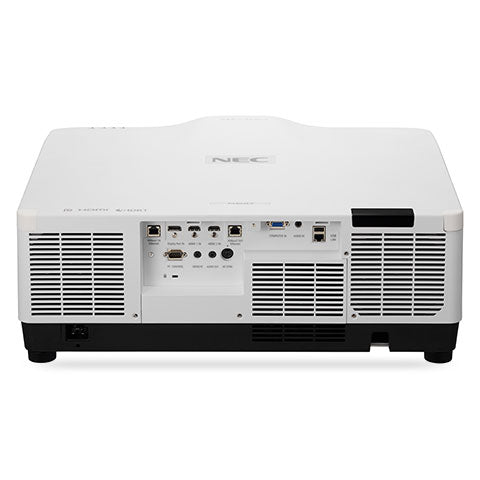

Inputs

RGB1(analog): VGA 15 pin D-sub, Component video using ADP-CV1E adapter RGB2(digital): HDMI (V2.0) w/HDCP (V1.4/2.2) RGB3(digital): HDMI (V2.0) w/HDCP (V1.4/2.2) RGB4(digital): DisplayPort w/HDCP (V1.3) RGB5(digital): HDBaseT w/HDCP (V1.4/2.2) Audio 1: Stereo Mini Jack

N/A

Outputs

Audio Out: Stereo Mini Jack Monitor Out: HDBaseT w/HDCP (V1.4/2.2)

N/A

Display Technology

LCD

N/A

Wireless Networking

-

N/A

Speakers

-

N/A

Economode

20000 hours

N/A

Audible Noise

35.0 dB

N/A

Lamp Life

20000 hrs

N/A

Short Throw

No

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Image Size Diagonal

40 to 150 in. / 1.02 to 3.8m, NP11FL; 30 to 500 in. / 0.76 to 12.7m, NP12ZL, NP13ZL; 40 to 500 in. / 1.02 to 12.7m, NP41ZL; 50 to 500 in. / 1.27 to 12.7m, NP15ZL, NP40ZL, NP43ZL; 60 to 500 in. / 1.52 to 12.7m, NP14ZL; 100 to 400 in. / 2.54 to 10.16m, NP44ML-02LK

N/A

Lens Shift

Horz & Vertical

N/A

Data / Video Signals

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD Macintosh Signal Compatibility Yes Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)

N/A

Digital Keystone

Vertical & Horizontal

N/A

Unit Weight

53.8 lbs. / 24.4kg

N/A

Projector Methods

Front, Ceiling, Rear

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

23.6 x 8.5 x 19.3 in. / 599 x 216 x 490mm
