Product Summary

Product Overview

The Panasonic PT-RZ690BU is a market-leading 1-Chip DLP‚Ñ¢ Laser Projector designed for high-impact visual performance in fixed installations. It delivers 6,000 ANSI lumens, ensuring that presentations and exhibitions remain vibrant in any lighting condition.

Exceptional Color and Detail

Utilizing the Quartet Colour Harmonizer, this projector achieves higher color saturation and accuracy without sacrificing light output. Its 10,000:1 contrast ratio provides deep blacks and sharp text for professional readability.

Smart Integration & Control

The unit features separate LAN and DIGITAL LINK (HDBase-T) terminals, allowing for uncompressed video and control signal transmission over distances up to 150m. It is compatible with Smart Projector Control for mobile app management and various optional lenses for complete installation flexibility.

Reliable 24/7 Operation

Engineered with a heat-resistant cooling system and a dust-resistant optical block, the PT-RZ690BU offers a 20,000-hour maintenance-free lifecycle, making it the ideal choice for mission-critical applications.

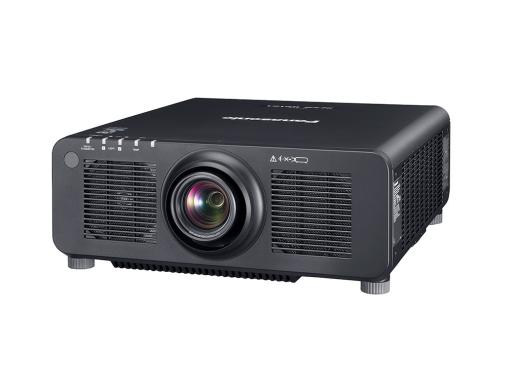

Panasonic PT-RZ690BU WUXGA DLP Fixed Installation Laser Projector

SKU: PTRZ690BU | UPC: 885170374379
Authorized Dealer Authorized Panasonic Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$5,995.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Panasonic PT-RZ690BU WUXGA DLP Fixed Installation Laser Projector $5,995.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 6000 Lumens High Brightness
  • WUXGA (1920 × 1200) Resolution
  • 1-Chip DLP Technology
  • SOLID SHINE Laser (20,000 Hours)
  • 4K Signal Input + DIGITAL LINK (HDBaseT)
  • 360° Installation Flexibility
  • Advanced Geometry Correction
  • Interchangeable Lens Support

Technical Details

Specifications

Lumens (ANSI)
6000 ANSI Lumens
Native Resolution
1920 x 1200
Display Technology
DLP
Contrast Ratio
10000:1
Aspect Ratio
16:10 (WUXGA)
Throw Distance
5.1' - 36.3'
Image Size Diagonal
29.95" - 300.40"
Lens
Throw Ratio 1.71:1 - 2.41:1, 1.41x Powered zoom , Powered focus
Lens Shift
Horizontal & Vertical
Digital Keystone
Vertical & Horizontal
Short Throw
No

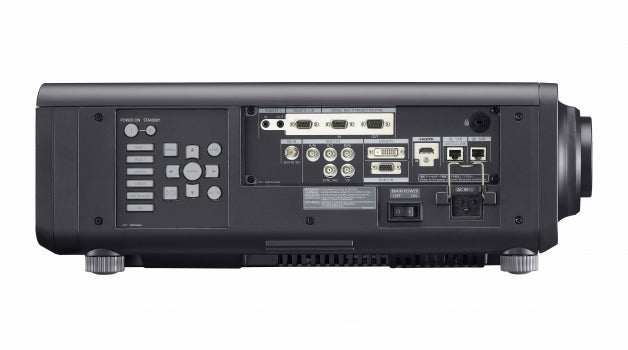

Inputs
• DVI Digital Input, HD-SDI: BNC, HDBaseT: RJ-45, HDMI (HDCP 2.2), RGB In: BNC, RS232: DB-9pin, VGA In: Dsub-15pin,
Outputs
• M3 x 1 for link control (for wired remote control), D-sub 9-pin (male) x 1 for link control
Wireless Networking
No
Speakers
No
Audible Noise
35 dB
Lamp Life
20000 hours
Projector Methods
Front, Rear, Ceiling Mount, Table Top
Dimensions (W × D × H)
7.87" x 19.61" x 22.87"
Unit Weight
50.93 lbs
Panasonic PT-RZ690BU7 WUXGA DLP Fixed Installation Laser Projector
Panasonic

Panasonic PT-RZ690BU WUXGA DLP Fixed Installation Laser Projector

$5,995.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

7.87" x 19.61" x 22.87

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Content

N/A

N/A

Native Resolution

1920 x 1200

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

10000:1

N/A

Throw Distance

5.1' - 36.3'

N/A

Lens

Throw Ratio 1.71:1 - 2.41:1, 1.41x Powered zoom , Powered focus

N/A

Inputs

DVI Digital Input, HD-SDI: BNC, HDBaseT: RJ-45, HDMI (HDCP 2.2), RGB In: BNC, RS232: DB-9pin, VGA In: Dsub-15pin,

N/A

Outputs

M3 x 1 for link control (for wired remote control), D-sub 9-pin (male) x 1 for link control

N/A

Display Technology

DLP

N/A

Wireless Networking

No

N/A

Speakers

No

N/A

Economode

24,000 hrs

N/A

Audible Noise

35 dB

N/A

Lamp Life

20000 hours

N/A

Short Throw

No

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Image Size Diagonal

29.95" - 300.40"

N/A

Lens Shift

Horizontal & Vertical

N/A

Data / Video Signals

720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 2160p/24, 2160p/60, 576i, 480p, 480i

N/A

Digital Keystone

Vertical & Horizontal

N/A

Unit Weight

50.93 lbs

N/A

Projector Methods

Front, Rear, Ceiling Mount, Table Top

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

7.87" x 19.61" x 22.87"

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

N/A

N/A

VESA Pattern

N/A

N/A
