Product Summary


  • 2048 x 1080 Resolution

  • 24000 ANSI Lumens

  • 2000:1 Contrast

  • Auto brightness control



  • 3D content utilizes the projector's full 2K resolution and triple flash technology for smooth motion

  • Lamp free projector uses an RB laser module

  • Approximately 50,000* hours of expected usage of the laser and DMD (depends on environmental conditions)

  • Direct selection buttons for eight stored projector configurations

  • Projector can be controlled from an optional touchscreen

  • Auto brightness control maintains constant brightness by adjusting the laser power as it ages

  • Complete line of (6) bayonet-style lenses with electronic zoom, focus and lens shift

  • Memory functions for lens position and light output simplify frequent operation


Designed for theaters with screens (up to 72 ft. wide), The NEC NC2403ML is the latest DCI compliant RB Laser DLP cinema projector. Delivering precise 2K (2048 x 1080) resolution, 3-D capabilities and high contrast images (2000:1), this model is easy to operate, extremely user-friendly and requires minimal maintenance providing up to 50,000* hours of laser life for unsurpassed TCO.
NEC NC2403ML SHARP
NEC NC2403ML Sharp NEC Display Solutions Introduces NC2403ML RB Laser Projector
Sharp NEC Display Solutions Introduces the NEC NC2403ML RB Laser Projector

Featuring native 2K resolution and 50,000* hours of life, Sharp/NEC adds to its line of next generation module projectors

NEC NC2403ML UPGRADED, INTERCHANGABLE LASER MODULE

UPGRADED, INTERCHANGABLE LASER MODULE

This next generation projector offers exhibitors an affordable, flexible solution with an interchangeable laser light source in the projector head. The laser module can be purchased separately and switched between projector heads for different sized auditoriums.

NEC NC2403ML UPGRADED, INTERCHANGABLE LASER MODULE
RB LASER LIGHT SOURCE

The NC2403ML uses an RB laser light source and generates 24,000 lumens of brightness and 2K DCI-compliant cinema quality images. This projector is perfect for cinemas with medium and large size screens, and is also suitable for museum, House of Worship, and higher education applications.

NEC NC2403ML COST-EFFECTIVE AND RELIABLE

COST-EFFECTIVE AND RELIABLE

With no need for lamp replacement and limited maintenance concerns, exhibitors have peace of mind knowing their protected investment produces outstanding imagery and that audiences will leave with enthusiasm and be excited to return.

NEC NC2403ML

NEC NC2403ML 24,000 lumen 4K RB Laser Projector

SKU: NC2403ML
Authorized Dealer Authorized NEC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

Call for Price

Contact OfficeWonderland for current pricing and availability.

BACK 2 SCHOOL SALE | additional discount in cart

Pricing must be confirmed before checkout.

Request a Quote
NEC NC2403ML 24,000 lumen 4K RB Laser Projector Call for Price
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • 2K 2048 x 1080
  • 24,000 ANSI lumens
  • Interchangeable RB laser module
  • 50,000-hour laser lifespan
  • Automatic brightness control

Technical Details

Specifications

Lumens (ANSI)
24,000 ANSI Lumens
Native Resolution
2048 x 1080
Display Technology
DLP
Contrast Ratio
2000:01:00
Aspect Ratio
16:10 (WUXGA)
Throw Distance
Depends on lens
Lens
Depends on lens
Lens Shift
Horizontal & Vertical
Short Throw
No
Inputs
• 1 × GPIO (3D) (D-sub 15 pin female)
• 1 × GPIO (D-sub 37 pin female)
• 1 X USB Type-A, 1 × RJ45 100Base-T
Outputs
• 1 X D-SUB 9-pin female-RS232C compliant
Wireless Networking
No
Audible Noise
50.0 dB
Projector Methods
Front, Rear, Ceiling Mount, Table Top
Dimensions (W × D × H)
27.4 x 43.1 x 20.1 in.
Unit Weight
330.8 lbs

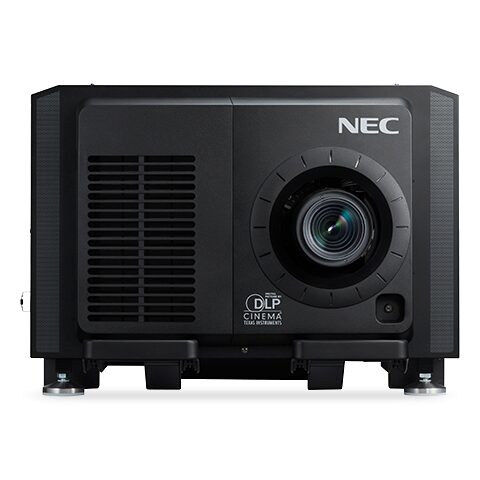

NEC NC2403ML 24,000 lumen 4K RB Laser Projector front
NEC

NEC NC2403ML 24,000 lumen 4K RB Laser Projector

Call For Price

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

27.4 x 43.1 x 20.1 in.

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Content

N/A

N/A

Native Resolution

2048 x 1080

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

2000:01:00

N/A

Throw Distance

Depends on lens

N/A

Lens

Depends on lens

N/A

Inputs

1 × GPIO (3D) (D-sub 15 pin female); 1 × GPIO (D-sub 37 pin female); 1 X USB Type-A, 1 × RJ45 100Base-T

N/A

Outputs

1 X D-SUB 9-pin female-RS232C compliant

N/A

Display Technology

DLP

N/A

Wireless Networking

No

N/A

Speakers

-

N/A

Economode

50,000 Hours

N/A

Audible Noise

50.0 dB

N/A

Lamp Life

-

N/A

Short Throw

No

N/A

Aspect Ratio

16:10 (WUXGA)

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

Horizontal & Vertical

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

-

N/A

Unit Weight

330.8 lbs

N/A

Projector Methods

Front, Rear, Ceiling Mount, Table Top

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

27.4 x 43.1 x 20.1 in.
