Product Summary


  • Rich sound output and premium sound quality enhance remote conferencing and content sharing

  • Two built-in subwoofers, dome tweeters and full range speakers

  • 3 preset modes optimize the sound and operability for offices, schools and hotels

  • Flexible install with both flat and wall-mount options

  • Blends into modern room designs










  • DYNAMIC SOUND - Two built-in subwoofers dome tweeters provide clear full-range speaker output.

  • 3 PRESET MODES - Optimize the sound and operability for offices, schools and hotel environments.

  • EASY-INSTALL - Flexible installation options for both flat and wall-mount help blend into modern room designs.

  • SUPPORTED INTERFACES - HDMI (in/out), USB 1, Bluetooth, Standard Ethernet, Standard Wireless LAN

  • QUICK SET-UP - Plug-and-play capability means rich sound output and premium sound quality ready to enhance remote conferencing and content sharing in seconds!

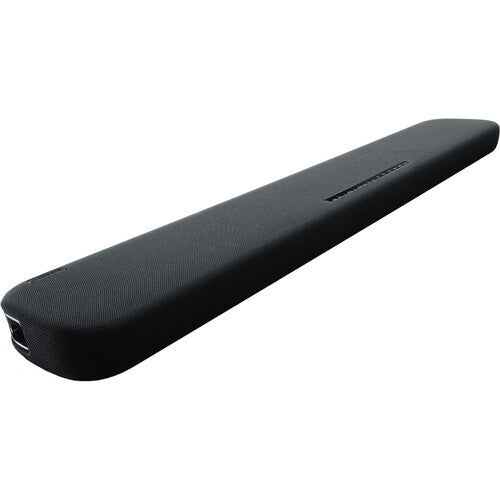

Yamaha Enterprise Soundbar 10ESB-1090

SKU: 10ESB1090
Authorized Dealer Authorized Yamaha Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$274.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
Yamaha Enterprise Soundbar 10ESB-1090 $274.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul>\n <li>Rich sound output and premium sound quality enhance remote conferencing and content sharing</li>\n <li>Two built-in subwoofers, dome tweeters and full range speakers</li>\n <li>3 preset modes optimize the sound and operability for offices, schools and hotels</li>\n <li>Flexible install with both flat and wall-mount options</li>\n <li>Blends into modern room designs</li>\n</ul>

Technical Details

Specifications

General
GENERAL Drivers Front L/R: 5.5 cm (2-1/8") cone x 2, Tweeter: 2.5cm (1") dome x 2, Built-in subwoofer: 7.5cm (3") cone x 2 Output Power 120 W (Front L/R: 30 W x 2, Built-in subwoofer: 60 W) Power Supply [U.S.A. and Canada models] AC 100 V to 120 V, 50/60 Hz [U.K., Europe and Russia models ] AC 100 V to 240 V, 50/60 Hz Power Consumption 30 W (Rated) Standby Power Consumption 4.3 W (Voice Control Ready) 0.2 W (HDMI control off, network standby off) 1.7/1.9/1.7 W (HDMI control off, network standby on [Wired/Wi-Fi/Bluetooth]) 0.6 W (HDMI control on, network standby off) 2.2 W (HDMI control on, network standby on) Maximum Volume Max SPL: 96 dB at 1 m Dimensions (W x H x D) Installing the unit in front of a TV, etc.: 890 x 53 x 131 mm (35" x 2-1/8" x 5-1/8") Mounting the unit on a wall, with spacers: 890 x 131 x 62 mm (35" x 5-1/8" x 2-1/2") Weight 3.4 kg (7.5 lbs) Operating Environment Temperature: 5ºC to 40ºC (41°F to 104°F) Humidity: 30% to 90% (no condensation) Storage Environment Temperature: -20ºC to +60ºC (-4°F to 140°F) Humidity: 30% to 90% (no condensation) Accessories The unit, Remote control, Power cord, Optical digital audio cable, Mounting template, Spacers (*2/sheet), Owner’s Manual Others Mode change: Conference mode, Education mode, Hotel mode DECODER Supported Audio Signal PCM, Dolby Digital, DTS Digital Surround (up to 5.1ch) INTERFACE HDMI 4k/60p 4:4:4, HDR (HDR10, Hybrid Log-Gamma), HDCP2.3, 3D, ARC, CEC Input Jacks HDMI 1 (HDMI IN), Digital Optical 1, Network (Ethernet1, Wireless1) Output Jacks HDMI 1 (HDMI OUT (ARC)), Analog 1 (Subwoofer out) Other Jacks USB 1 (update only) Bluetooth Version: 4.2 Supported profiles: A2DP Supported codecs: SBC, AAC Class: Bluetooth Class2 Range (line-of-sight): Approx. 10m (33ft) Supported content protection method: SCMS-T [U.K., Europe and Russia models] Radio frequency 2402 MHz to 2480 MHz Maximum output power (EIRP) 9.5 dBm (8.9 mW) Wired Network Ethernet standard: 100BASE-TX/10BASE-T Wi-Fi Network Wireless LAN standards: IEEE 802.11b/g/n Radio frequency band: 2.4 GHz Available security method: WEP, WPA2-PSK (AES), Mixed Mode [U.K., Europe and Russia models] Radio frequency: 2.4 GHz band 2402 MHz to 2482 MHz (20 MHz) Maximum output power (EIRP): 2.4 GHz band 18.8 dBm (75.9 mW) COMPLIANCE Classification Class B Device Safety CB (IEC62368-1, IEC60065), CE (EN62368-1, EN60065), UL/CSA (UL62368-1, CSA62368-1) EMC FCC (Part 15 Subpart B (SDoC)), ICES-003, CE (EN61000-3-2, EN61000-3-3, EN55035, EN55032) Radio FCC (Part 15 Subpart C), RSS-247, CE (EN300328, EN62311, EN301 489-1, EN301 489-3, EN301 489-17) Environment RoHS compliant
Yamaha Enterprise Soundbar ESB-1090
Yamaha

Yamaha Enterprise Soundbar 10ESB-1090

$274.00

Brightness

N/A

N/A

Weight without stand

N/A

N/A

Weight with Stand

N/A

N/A

Duty Cycle

N/A

N/A

Dimensions

N/A

N/A

Aspect Ratio

N/A

N/A

Content

N/A

N/A

Native Resolution

N/A

N/A

Lumens (ANSI)

N/A

N/A

Contrast Ratio

N/A

N/A

Throw Distance

N/A

N/A

Lens

N/A

N/A

Inputs

N/A

N/A

Outputs

N/A

N/A

Display Technology

N/A

N/A

Wireless Networking

N/A

N/A

Speakers

N/A

N/A

Economode

N/A

N/A

Audible Noise

N/A

N/A

Lamp Life

N/A

N/A

Short Throw

N/A

N/A

Aspect Ratio

N/A

N/A

Image Size Diagonal

N/A

N/A

Lens Shift

N/A

N/A

Data / Video Signals

N/A

N/A

Digital Keystone

N/A

N/A

Unit Weight

N/A

N/A

Projector Methods

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Dimensions (WxDxH)

N/A

N/A

Contrast Ratio

N/A

N/A

Viewing Angle

N/A

N/A

Response Time

N/A

N/A

Sound Output

N/A

N/A

Screen Size

N/A

N/A

Monitor Configuration

N/A

N/A

Display Orientation

N/A

N/A

WiFi

N/A

N/A

Communication Port

N/A

N/A

Refresh Rate

N/A

N/A

General

GENERAL
Drivers
Front L/R: 5.5 cm (2-1/8") cone x 2, Tweeter: 2.5cm (1") dome x 2, Built-in subwoofer: 7.5cm (3") cone x 2
Output Power
120 W (Front L/R: 30 W x 2, Built-in subwoofer: 60 W)
Power Supply
[U.S.A. and Canada models] AC 100 V to 120 V, 50/60 Hz [U.K., Europe and Russia models ] AC 100 V to 240 V, 50/60 Hz
Power Consumption
30 W (Rated)
Standby Power Consumption
4.3 W (Voice Control Ready) 0.2 W (HDMI control off, network standby off) 1.7/1.9/1.7 W (HDMI control off, network standby on [Wired/Wi-Fi/Bluetooth]) 0.6 W (HDMI control on, network standby off) 2.2 W (HDMI control on, network standby on)
Maximum Volume
Max SPL: 96 dB at 1 m
Dimensions (W x H x D)
Installing the unit in front of a TV, etc.: 890 x 53 x 131 mm (35" x 2-1/8" x 5-1/8") Mounting the unit on a wall, with spacers: 890 x 131 x 62 mm (35" x 5-1/8" x 2-1/2")
Weight
3.4 kg (7.5 lbs)
Operating Environment
Temperature: 5ºC to 40ºC (41°F to 104°F) Humidity: 30% to 90% (no condensation)
Storage Environment
Temperature: -20ºC to +60ºC (-4°F to 140°F) Humidity: 30% to 90% (no condensation)
Accessories
The unit, Remote control, Power cord, Optical digital audio cable, Mounting template, Spacers (*2/sheet), Owner’s Manual
Others
Mode change: Conference mode, Education mode, Hotel mode
DECODER
Supported Audio Signal
PCM, Dolby Digital, DTS Digital Surround (up to 5.1ch)
INTERFACE
HDMI
4k/60p 4:4:4, HDR (HDR10, Hybrid Log-Gamma), HDCP2.3, 3D, ARC, CEC
Input Jacks
HDMI 1 (HDMI IN), Digital Optical 1, Network (Ethernet1, Wireless1)
Output Jacks
HDMI 1 (HDMI OUT (ARC)), Analog 1 (Subwoofer out)
Other Jacks
USB 1 (update only)
Bluetooth
Version: 4.2 Supported profiles: A2DP Supported codecs: SBC, AAC Class: Bluetooth Class2 Range (line-of-sight): Approx. 10m (33ft) Supported content protection method: SCMS-T [U.K., Europe and Russia models] Radio frequency 2402 MHz to 2480 MHz Maximum output power (EIRP) 9.5 dBm (8.9 mW)
Wired Network
Ethernet standard: 100BASE-TX/10BASE-T
Wi-Fi Network
Wireless LAN standards: IEEE 802.11b/g/n Radio frequency band: 2.4 GHz Available security method: WEP, WPA2-PSK (AES), Mixed Mode [U.K., Europe and Russia models] Radio frequency: 2.4 GHz band 2402 MHz to 2482 MHz (20 MHz) Maximum output power (EIRP): 2.4 GHz band 18.8 dBm (75.9 mW)
COMPLIANCE
Classification
Class B Device
Safety
CB (IEC62368-1, IEC60065), CE (EN62368-1, EN60065), UL/CSA (UL62368-1, CSA62368-1)
EMC
FCC (Part 15 Subpart B (SDoC)), ICES-003, CE (EN61000-3-2, EN61000-3-3, EN55035, EN55032)
Radio
FCC (Part 15 Subpart C), RSS-247, CE (EN300328, EN62311, EN301 489-1, EN301 489-3, EN301 489-17)
Environment
RoHS compliant
