Product Summary


  • Designed for Cinema Applications

  • Full-Bandwidth Reproduction

  • 15" Woofer

  • 3" Compression Driver



  • Designed for Cinema Applications

  • Full-Bandwidth Reproduction

  • 15" Woofer

  • 3" Compression Driver

  • Frequency Response: 44 Hz to 18 kHz

  • Max SPL: 129 dB Peak

  • Recommended Amp Power: 1000W (8 Ohms)

  • Axisymmetric Coverage: 75˚ Conical DMT

  • Connectors: NL4 and Barrier Strip

  • Includes M10 Threaded Inserts


Crafted to excel in the most cutting-edge immersive sound surround formats, the QSC AP-5152 Acoustic Performance Cinema Surround Loudspeaker, available in an elegant white finish, represents a pinnacle of precision engineering. Its standout feature is the incorporation of Directivity Matched Transition (DMT) technology, ensuring a seamless and consistent power response. This innovative technology precisely aligns the low-frequency (LF) and high-frequency (HF) coverage in the crossover region, resulting in stellar performance.

Furthermore, this loudspeaker boasts an axisymmetric waveguide, guaranteeing uncompromising performance in both the vertical and horizontal axes. With a wide 75° dispersion, it offers the perfect coverage for accommodating large seating areas, making it an excellent choice for rooms with lower ceiling heights. The QSC AP-5152 promises an immersive and uncompromised audio experience that complements the latest surround sound formats.

QSC AP-5152 15" Two-Way Acoustic Performance Cinema Surround Loudspeaker (White)

SKU: AP5152WH | UPC: 684284061096
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$2,000.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AP-5152 15" Two-Way Acoustic Performance Cinema Surround Loudspeaker (White) $2,000.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Designed for Cinema Applications</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">Full-Bandwidth Reproduction</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">15" Woofer</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">3" Compression Driver</li>\n</ul>

Technical Details

Specifications

Inputs
• Barrier StripspeakON NL4
General
PA Speaker
Configuration
2-Way
Total Power Capacity
Passive: 650 W Bi-Amp / HF: 80 W Bi-Amp / LF: 650 W
System Impedance
8 Ohms (Nominal)
Drivers
HF Driver
1 x 3" / 76.2 mm Compression Driver with 1.4" / 35.6 mm Throat
LF Driver
1 x 15" / 381 mm Woofer
LF Voice Coil
4" / 102 mm
Magnet
HF: Ferrite LF: Ferrite
Performance
Frequency Response
44 Hz to 18 kHz -10 dB
Maximum SPL
123 dB (Continuous, Passive) 129 dB (Peak, Passive) 127 dB (HF, Continuous, Bi-Amp) 133 dB (HF, Peak, Bi-Amp) 123 dB (LF, Continuous, Bi-Amp) 129 dB (LF, Peak, Bi-Amp)
Coverage Angle
75° H x 75° V
Directivity Index
9.2 dB (Directivity Index) 8.3 dB (Directivity/Q Factor)
Speaker Sensitivity
96 dB
Connectivity
Audio I/O
Barrier Strip speakON NL4
Physical
Mounting
15 x M10
Construction Material
Metal Grille, Plywood
Dimensions
32.0 x 17.5 x 15.2" / 813.0 x 445.0 x 386.0 mm
Weight
80 lb / 36.3 kg

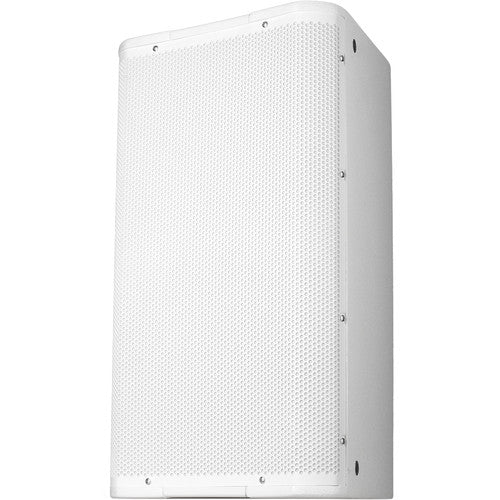

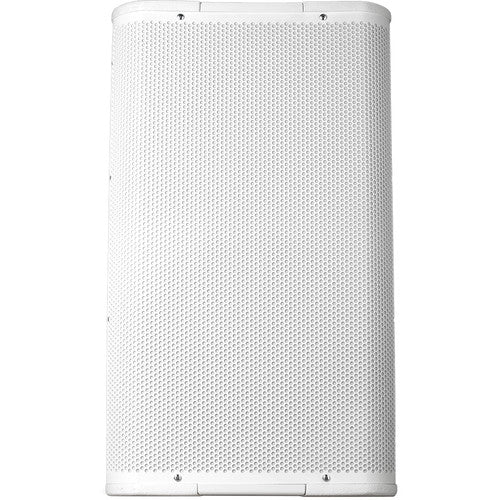

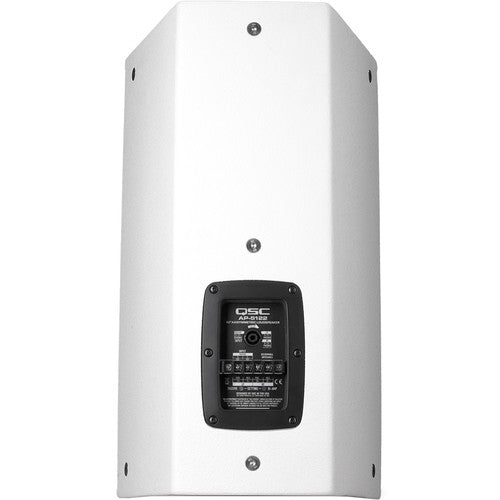

QSC AP-5122 12 Two-Way Acoustic Performance Cinema Surround Loudspeaker (White) 1
