Product Summary


  • 6.5" Woofer and 1" Silk Dome Tweeter

  • 150W RMS Power Handling

  • 105° Conical Coverage

  • 116 dB Peak Maximum SPL



  • 6.5" Woofer and 1" Silk Dome Tweeter

  • 150W RMS Power Handling

  • 105° Conical Coverage

  • 116 dB Peak Maximum SPL

  • 60 Hz to 20 kHz Frequency Range

  • Low-Saturation Multi-Tap Transformer

  • Supports 70V, 100V, or 8-Ohm Operation

  • Euroblock Connector for Easy Wiring

  • Includes Award-Winning X-Mount Systems


Introducing the QSC AD-S6T from the AcousticDesign Series, a set of pristine white surface-mount loudspeakers. This dynamic duo comes equipped with transformers and is complemented by the renowned X-Mount systems, ensuring their excellence across a range of musical applications. Whether it's the forefront of sound or the subtlety of background melodies, these speakers possess remarkable adaptability, compatible with both 70/100V setups or 8-ohm configurations. Their flexible design allows for seamless installation on walls or ceilings, whether in a horizontal or vertical arrangement. Experience superior sound quality and versatility with the QSC AD-S6T loudspeakers.

QSC AD-S6T AcousticDesign Series 6.5" 2-Way 150W Surface-Mount Loudspeaker (Pair, White)

SKU: ADS6TWH | UPC: 684284059468
Authorized Dealer Authorized QSC Dealer
Manufacturer Warranty Authorized dealer coverage
Expert Support Pre- and post-sale assistance

$448.00

BACK 2 SCHOOL SALE | additional discount in cart
Request a Quote
QSC AD-S6T AcousticDesign Series 6.5" 2-Way 150W Surface-Mount Loudspeaker (Pair, White) $448.00
In Stock Current availability for this model
Free Ground Shipping On qualifying orders to the lower 48 states
Project & Volume Pricing Special pricing available for larger orders
Education & Government Purchase Orders Accepted for qualified organizations
Financing Available with Shop Pay
Special Pricing Available Education • Government • Nonprofits • Corporate • Volume Orders
✓ Tax-Exempt Purchasing Available

Key Features

  • <ul class="list_OMS5rN7R1Z">\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">6.5" Woofer and 1" Silk Dome Tweeter</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">150W RMS Power Handling</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">105° Conical Coverage</li>\n <li class="listItem_OMS5rN7R1Z" data-selenium="sellingPointsListItem">116 dB Peak Maximum SPL</li>\n</ul>

Technical Details

Specifications

Inputs
• 1 x Block 4-Pole Speaker Input/Thru (Removable)
General

Speaker

Active or Passive
Passive
Number of Included Speakers
2
Speaker Configuration
2-Way
Power Handling
For 2 Hours / At Low-Z: 150 W RMS
Recommended Amplifier Power
300 W
Constant Voltage / Transformer Taps
70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass 100 V: 60 / 30 / 15 W or 8 Ohms Bypass
Impedance
8 Ohms (Transformer Bypassed)
Transformer Wattage
60 W
Enclosure Type
Sealed
Shielded
No

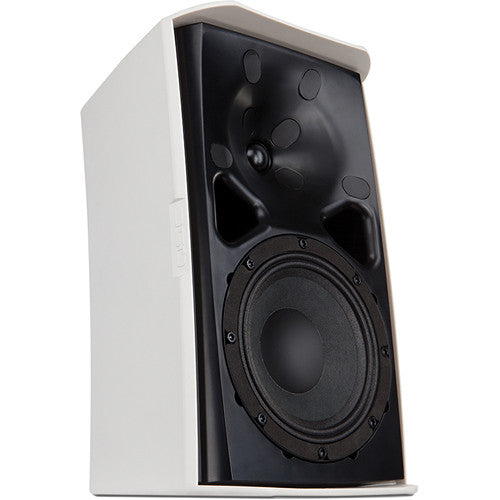

Drivers
HF Driver
1 x 1" / 2.54 cm Horn-Loaded Silk Dome Tweeter
HF Voice Coil
1" / 2.54 cm
LF Driver
1 x 6.5" / 16.51 cm Paper Woofer
LF Voice Coil
1.5" / 3.81 cm
Performance
Frequency Range
60 Hz to 20 kHz -10 dB
Maximum SPL
110 dB (Continuous) 116 dB (Peak)
Sensitivity
89 dB SPL
Coverage Angle
105° (Conical)
Directivity
5 (Directivity/Q Factor) 7 dB (Directivity Index)
Maximum Input Voltage
35 V RMS
Connectivity
I/O
1 x Block 4-Pole Speaker Input/Thru (Removable)
Environmental
Environmental Protection
Advertised as Dust Resistant/Humidity Resistant/Water Resistant *Manufacturer Testing: IP54
Operating Temperature
-4 to 122°F / -20 to 50°C
Physical
Color
White

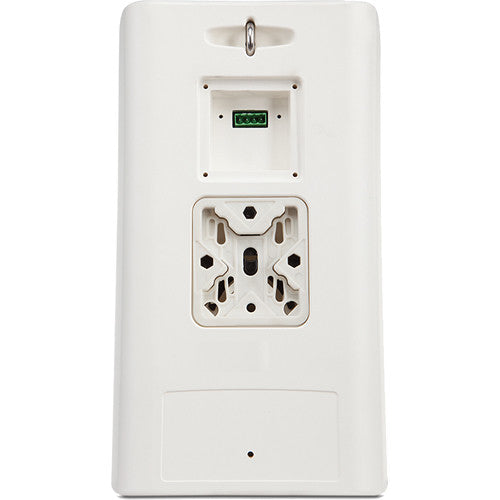

Mounting
1 x Bracket Point (Rear)
Construction Material
ABS, Aluminum Grille, Polymer
Dimensions
14.4 x 8.5 x 8.5" / 36.58 x 21.59 x 21.59 cm
Weight
13.6 lb / 6.2 kg (Each Speaker)
Packaging Info
Package Weight
32.6 lb
Box Dimensions (LxWxH)
23 x 19.8 x 11.9"
